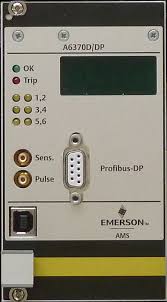

Emerson A6370D/DP overspeed protection monitoring

Brand：Emerson

Product ID：

Place of Origin：

Warranty： 365 days

Goods status： new/used

Mail： 3598571032@qq.com

Phone/Wechat/Whatsapp：+86 15339539190

Phone：+86 15339539190

Product Details

The parameters of Emerson A6370D/DP
Emerson A6370D is an overspeed protection monitor. The following are its main parameters

Input Power Supply: 12 - 24V DC or AC 100 - 240V, 50/60Hz.
Measurement Range: 0 - 10,000rpm.
Accuracy: ±0.5% of the reading or 1rpm, whichever is larger.
Response Time: Less than 50ms.
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Humidity Range: 0% - 95% non - condensing.
Dimensions: 80×80×25mm.
Connection Type: RS - 485 or analog output.
Alarm Types: LED and relay output.

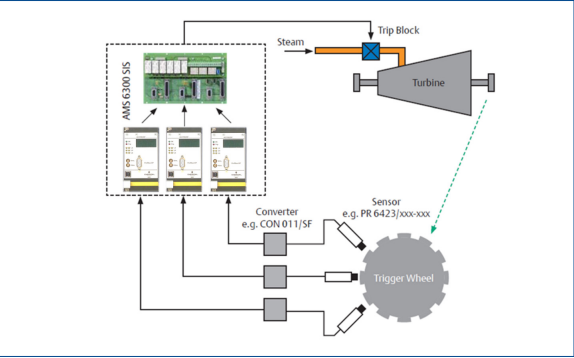

In addition, this monitor is part of the AMS 6300 SIS overspeed protection system and needs to be installed on a 19 - inch rack with the A6371 system backplane. It is suitable for eddy current sensors, Hall element sensors, and magnetic (VR) sensors. The sensor voltage supply is nominal supply voltage - 24.5V±1.5V DC, with short - circuit protection and a maximum current of 35mA.
