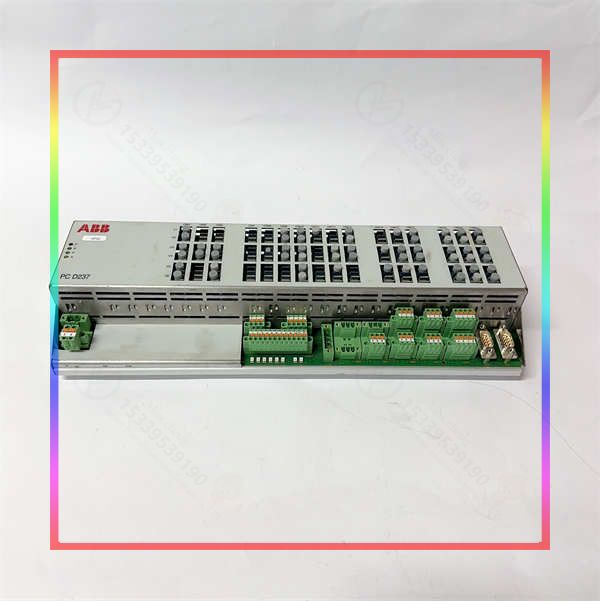

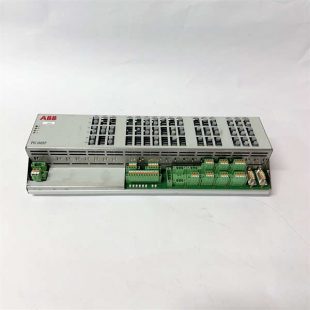

ABB PCD237A101 3BHE028915R0101 is an excitation control module of ABB, and the following are its relevant parameters:
- Communication Rate: It supports the Profibus DP bus standard, and the communication rates include 9.6kBit/s, 19.2kBit/s, 45.45kBit/s, 93.75kkBit/s, 187.5kBit/s, 500kBit/s, 1.5Mbit/s, 6Mbit/s and 12Mbit/s.
- Power Supply and Protection: Dual power redundant input, DC (9 - 36)V, typically DC24V, with a power consumption of less than 4W. It has a voltage isolation of DC1500V and reverse connection protection, and adopts an industrial terminal interface.
- Relay Alarm Output: It supports alarm output for link faults and power failures. The maximum capacity of the contact is DC48V/1A, and it has an industrial terminal interface.
- Electrical Interface Protection: It provides 4000V lightning protection for the electrical interface, 1.5A overcurrent protection, and 600W surge protection.
- Status Indication: It is equipped with 6 bi-color LED status indicator lights.
- Others: It has an industrial-grade design and has passed EMC test certification. With an IP30 protection level, it adopts a corrugated aluminum reinforced casing and supports the standard industrial 35mm rail installation method.
