Basic Specifications

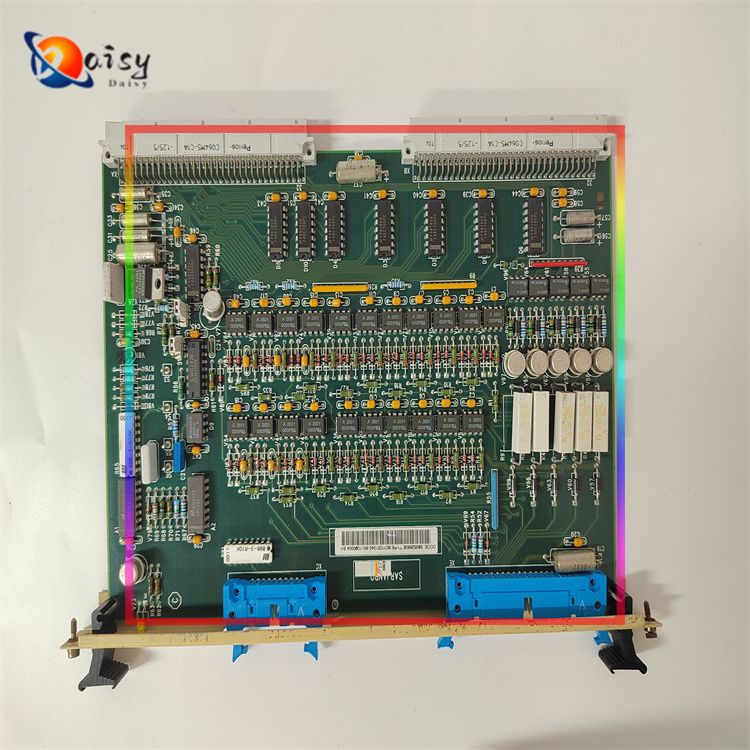

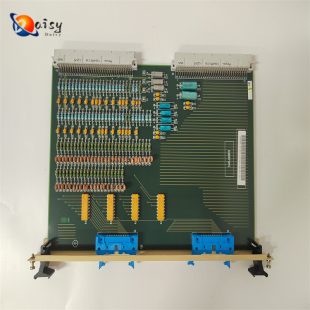

1. Model
• Main model: 70EA01B-ES
• Material number: HESG447307R1
2. Product Type
• Excitation Controller module for generator excitation system control.

Electrical Parameters

1. Input Power
• Voltage: 24V DC (allowable fluctuation range ±20%)
• Current: Maximum 5mA
2. Output Specifications
• Voltage: 24V DC
• Current: Maximum 5A
3. Control Interfaces
• Supports multiple communication protocols: Modbus RTU/TCP, Profibus DP, Ethernet IP, etc.
• Provides analog input/output interfaces (e.g., 4-20mA, 0-10V)
• Supports digital input/output (DI/DO) for status monitoring and control signal transmission.

Performance Parameters

1. Control Accuracy
• Voltage regulation accuracy: ±0.1%
• Response time: ≤100ms (typical value)
2. Protection Functions
• Overcurrent Protection
• Overvoltage Protection
• Undervoltage Protection
• Thermal Protection
• Short Circuit Protection
3. Operating Environment
• Temperature range: -25°C to +70°C
• Humidity range: 5% to 95% (non-condensing)
• Protection level: IP65 (dustproof and waterproof)
