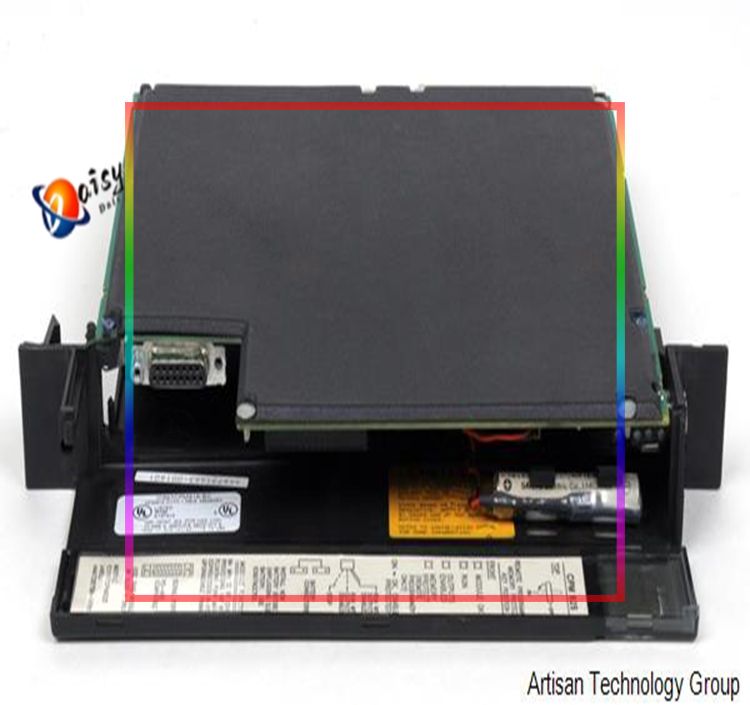

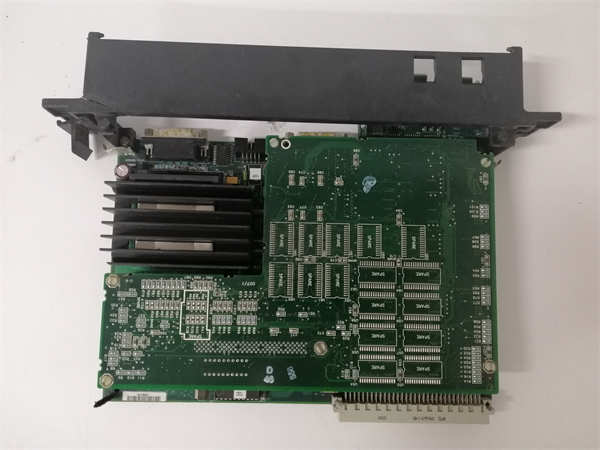

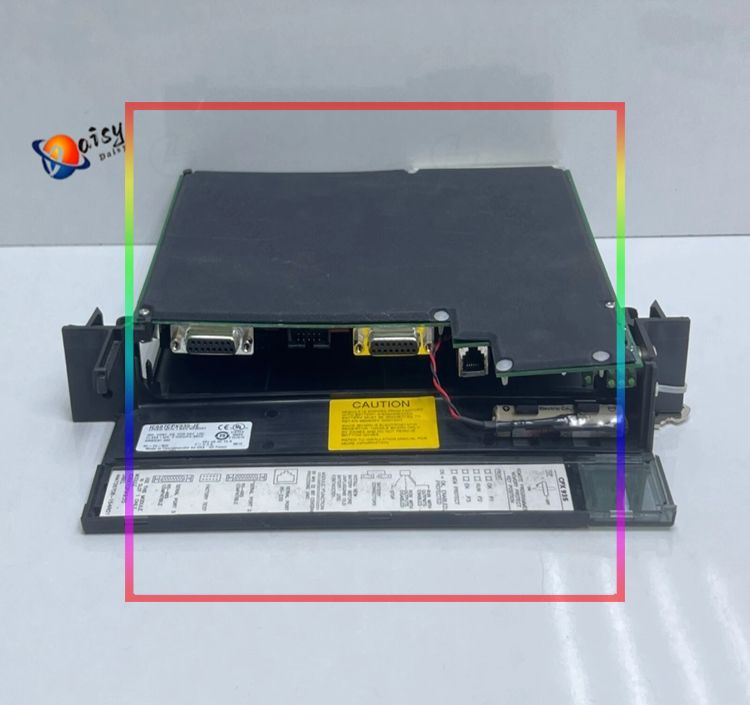

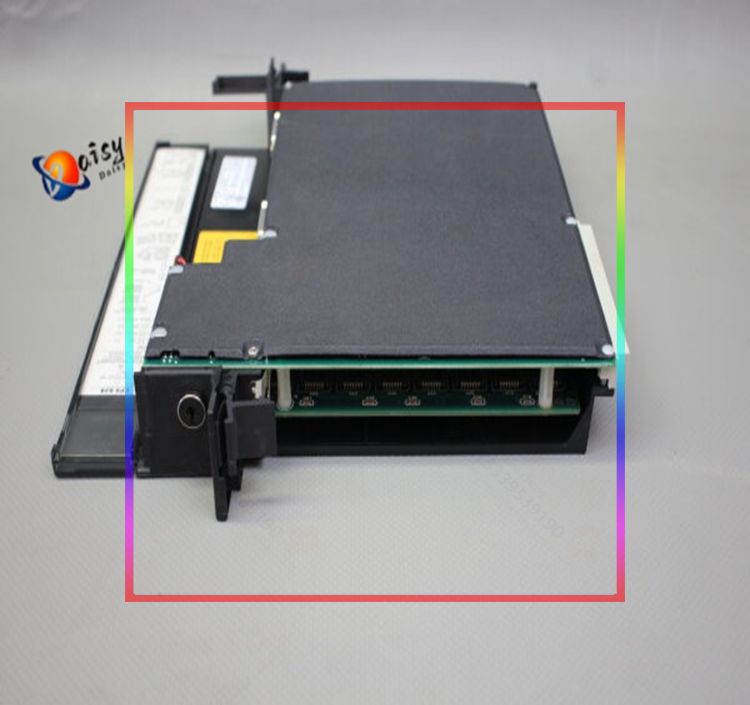

GE IC697CPX928-FE Parameters

1. Processor

• 96MHz 80486DX4 microprocessor, supporting 32-bit floating-point calculations.
• Execution speed: 0.4 microseconds per Boolean function.

2. Memory

• 6MB battery-backed memory.
• 256K non-volatile user flash memory.

3. I/O Capability

• Up to 12K inputs and outputs (any combination).
• 8K analog inputs/outputs.

4. Serial Ports

• 3 ports in total:

• 1 RS232 serial port.
• 2 RS485 serial ports.
• 1 factory reset port.

5. Programming Methods

• Programmed via MS-DOS software products or Windows-based software (running on Windows 95/NT) through:

• Ethernet TCP/IP.
• SNP (Serial Network Protocol) port.


  CPX 928 is a single-slot CPU designed for the C80-75 MFC. It can be programmed and configured via Windows-based programming software, enabling real-time control of machinery, process flows, and material handling systems. It communicates with I/O and intelligent option modules through a rack-mounted backplane using the VME C.1 standard format.

  The FE hardware revision includes modifications to the clock circuit to prevent CPU crashes caused by
