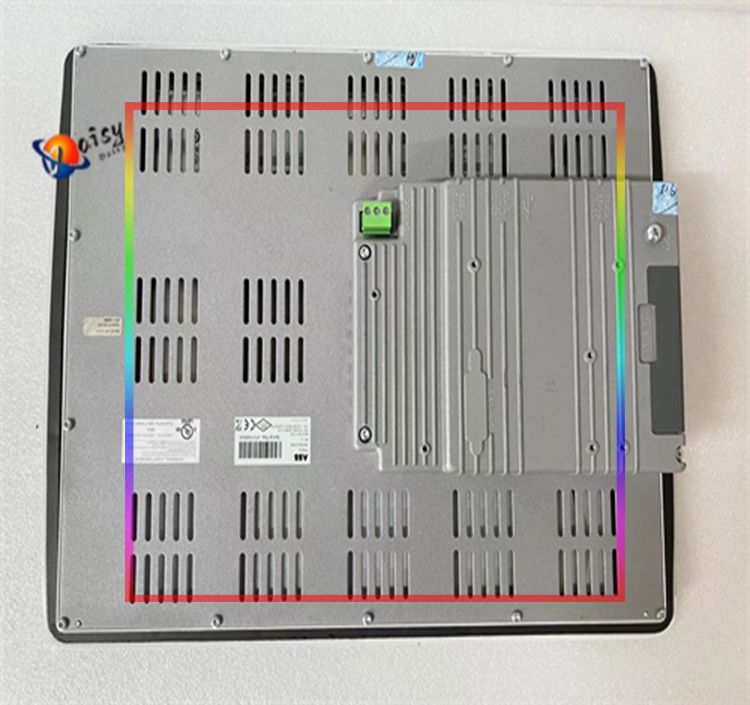

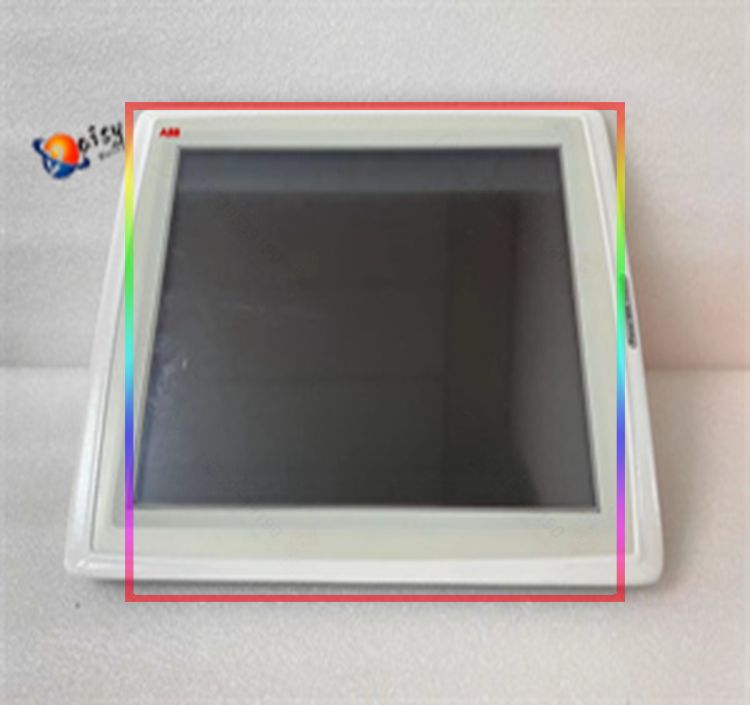

ABB PP865A 3BSE042236R2 Touchscreen Parameters

1. Input Method

• Touchscreen input with resistive touch interaction.

2. Display Specifications

• Screen size: 10.1 inches
• Resolution: 1024×600 pixels
• Display type: TFT/LED, supporting vector-based high-resolution graphics with icon-based interface, navigation, and control functions.

3. Hardware Configuration

• Processor: ARM9
• Storage capacity: 1GB

4. Electrical Parameters

• Input voltage: 24V DC
• Ethernet interface: 2 shielded RJ45 ports, supporting 10/100BASE-T
• USB interface: 2 USB 2.0 ports (500mA power supply)
• Serial ports:

• 1 RS232
• 1 RS422/485
• 1 RS485 (only when COM2 is configured as RS485)

5. Protection and Environment

• Panel protection class: IP65 (front), compliant with NEMA 4X/12 and UL 4X/12 standards
• Operating temperature: -10°C to 60°C
• Operating humidity: 5%–85% (non-condensing)

6. Certifications

• UL certified
