Triconex

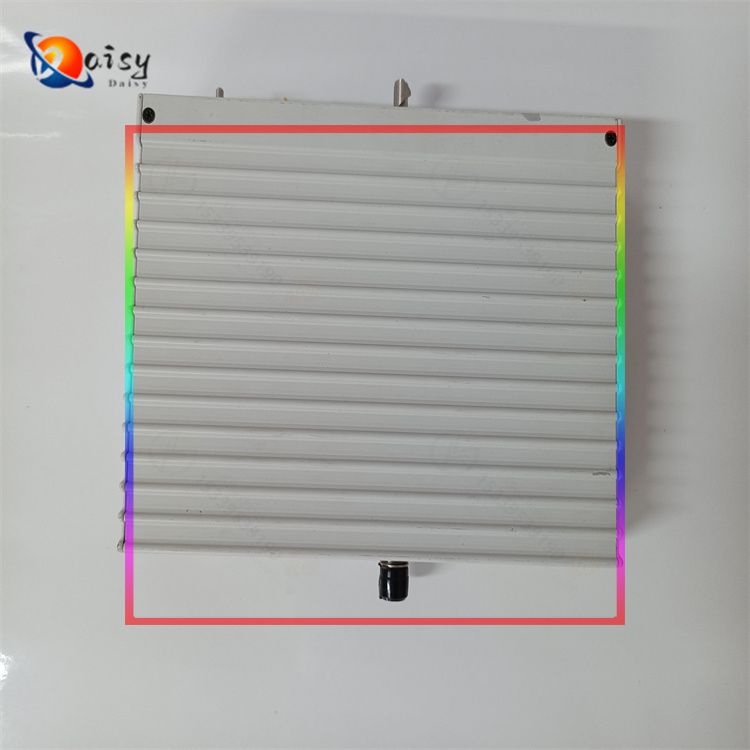

TRICONEX AO 3481S2 Analog Output Module

    Brand：TRICONEX

    Product ID：

    Place of Origin：

    Warranty： 365 days

    Goods status： new/used


    Mail： 3598571032@qq.com

    Phone/Wechat/Whatsapp：+86 15339539190

  • Phone：+86 15339539190

  • Product Details

Here are the parameters of the TRICONEX AO 3481S2 Analog Output Module2:
  1. Output Channels: 4, with commoned - return and DC - coupled.
  2. Output Current Range: 4 - 20 mA (controlled), and it can reach up to 22 mA in over - range conditions.
  3. Resolution: 12 bits.
  4. Output Accuracy: Less than 0.25% of FSR (Full Scale Range) within the temperature range of 0°C to 70°C.
  5. Power Supply: 24 V DC loop power supply, with reverse voltage protection, and it can operate up to 32 V DC.
  6. Output Loop Load: 300 Ω @ >16 V DC (1 A min), 500 Ω @ >20 V DC (1 A min), 700 Ω @ >24 V DC (1 A min), 800 Ω @ >28 V DC (1 A min).
  7. Switch Time on Leg Failure: Typically 1 ms, maximum 3 ms.
  8. Operating Temperature: - 40°C to + 70°C.
  9. Storage Temperature: - 40°C to + 85°C.
  10. Humidity Range: 0% to 95%, non - condensing.
  11. Mounting Type: Panel mount.
  12. Dimensions: 4.3 x 18.8 x 21.8 cm.
  13. Weight: 1.46 kg.
  14. Diagnostic Capabilities: Includes forced - switch diagnostics (FSD).
  15. Over - range Protection: Up to 36 V DC continuous.
  16. Isolation: Functional - to - protective - ground isolation is 500 V DC, and functional - to - functional - ground (logic) isolation is 800 V DC.
