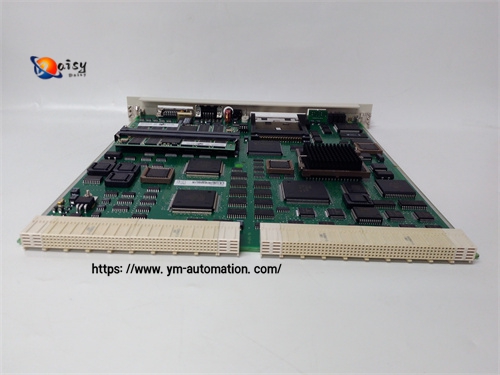

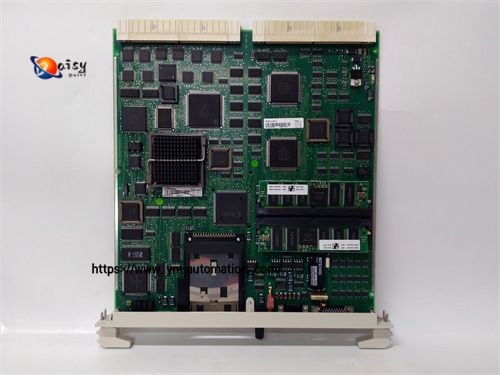

Here is the operation manual for ABB PM511V16 3BSE011181R1, a high-performance processor module part of ABB's AC400 series controllers:
- Processor: Typically PowerPC 750 with up to 1GHz clock speed.
- Memory: 16MB SDRAM and 2MB Flash.
- Input Voltage: 24V DC.
- Operating Temperature: -20°C to +55°C.
- Storage Temperature: -40°C to +85°C.
- Dimensions: Approximately 274.5mm × 27mm × 33mm.
- Communication Interfaces: Supports RS-232, RS-485, Profibus DP, CANopen, EtherCAT, etc.
- I/O Channels: 16 digital inputs, 8 digital outputs; some models may include 4 analog inputs and 4 analog outputs.
- Protection Level: IP20.
- The module supports DIN rail or wall-mounted installation.
- Ensure the installation location meets environmental requirements (temperature, humidity, etc.).
- Insert the module into the rail or fix it on the wall in the correct orientation, ensuring a secure connection to prevent looseness.
- Supports IEC 61131-3 programming languages, including Ladder Diagram, Structured Text, and Function Block Diagram.
- Use ABB's programming software (e.g., Control Builder) for development and debugging.
- Do not touch the main module during operation to avoid hazards or disruptions.
- Module Replacement Steps (for redundant processors):
- Set the startup mode selector to position 2 (STOP).
- Remove the faulty module and check that the new module has the same or higher revision number.
- Insert the new module carefully, ensuring it slides correctly into the sub-frame rail.
- Set the startup mode selector to the same position as the main module and press the ENTER button on the backup module.
- Verify normal status indicators after replacement.
- Process Control: Controls parameters like temperature, pressure, and flow in industrial processes.
- Data Acquisition: Collects and analyzes production data.
- Motor Control: Manages motor speed and direction.
- Building Automation: Applies to HVAC, lighting, and safety systems.
- Human-Machine Interaction: Enables monitoring and operation via touch screens or host computers through programming software.
