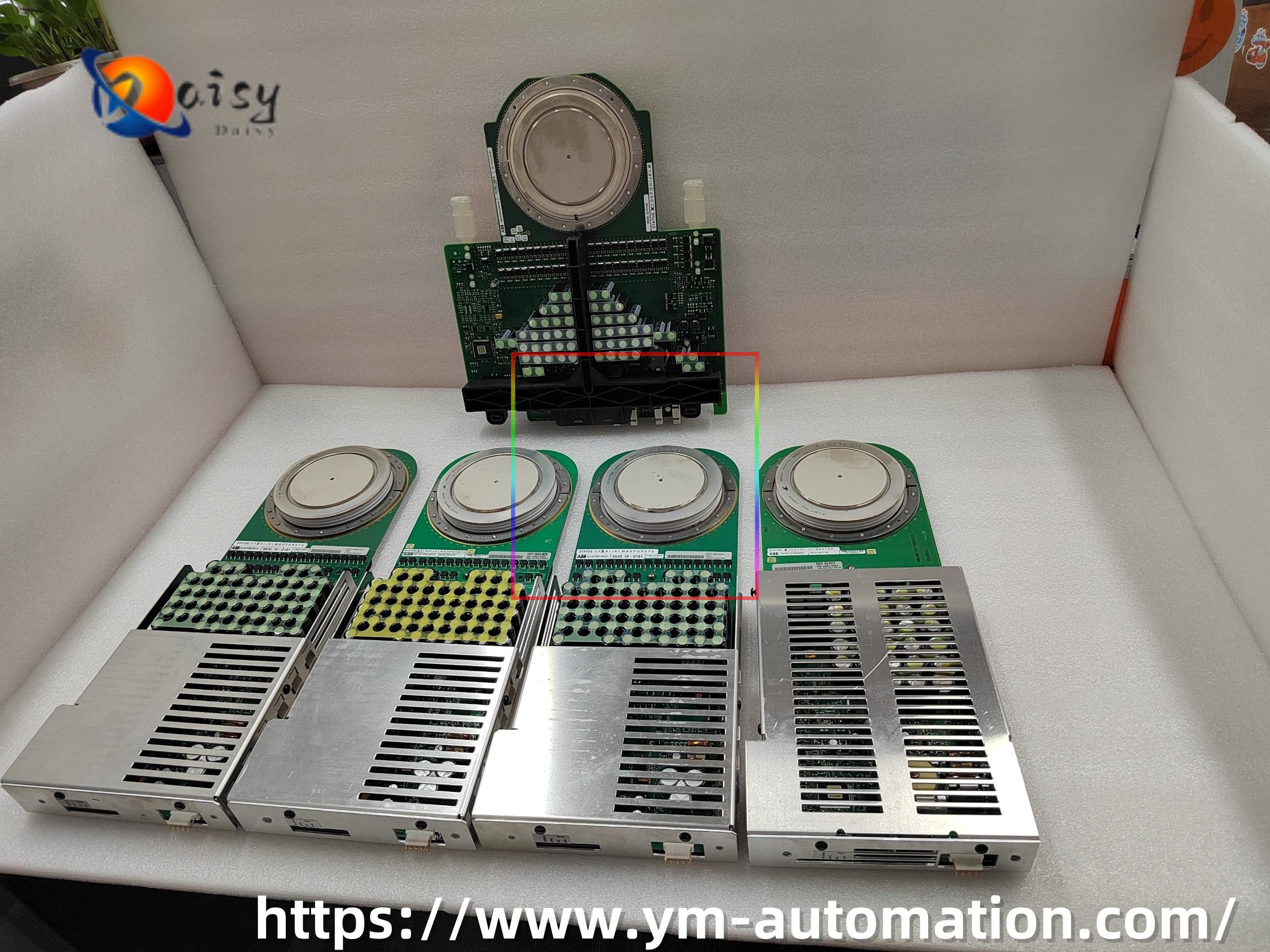

ABB 5SHX1060H0001 3BHB003230R0101 | IGCT module

Brand：ABB

Product ID：

Place of Origin：

Warranty： 365 days

Goods status： new/used

Mail： 3598571032@qq.com

Phone/Wechat/Whatsapp：+86 15339539190

Phone：+86 15339539190

Product Details

ABB 5SHX1060H0001 is an IGCT module, and 3BHB003230R0101 is a drive control board. Currently, there is no publicly available complete and detailed parameter information. Based on relevant data, the following partial parameter information can be obtained:

Parameters of 5SHX1060H0001:

Rated Voltage: 3300V AC
Rated Current: 1400A
Peak Forward Current: 2200A
On-state Voltage Drop: 2.5V
Gate Trigger Current: 0.5A
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +125°C
Dimensions: 285mm x 220mm x 100mm
Weight: 8.5kg
Protection Class: IP65

Parameters of 3BHB003230R0101:

Driving Capacity: Adopts high-performance driving circuits and power devices, capable of providing high current and high voltage output.
Control Precision: Uses advanced control algorithms and sensor technologies to achieve precise control of position, speed, torque, etc.
Interfaces and Communication: Equipped with multiple communication interfaces and input-output interfaces, which can connect and communicate with other industrial equipment.
Reliability: Undergoes strict quality control and testing, and can operate stably for a long time in harsh industrial environments.
Programming and Configuration: Supports multiple programming languages and development environments, facilitating users to program and configure according to specific needs
