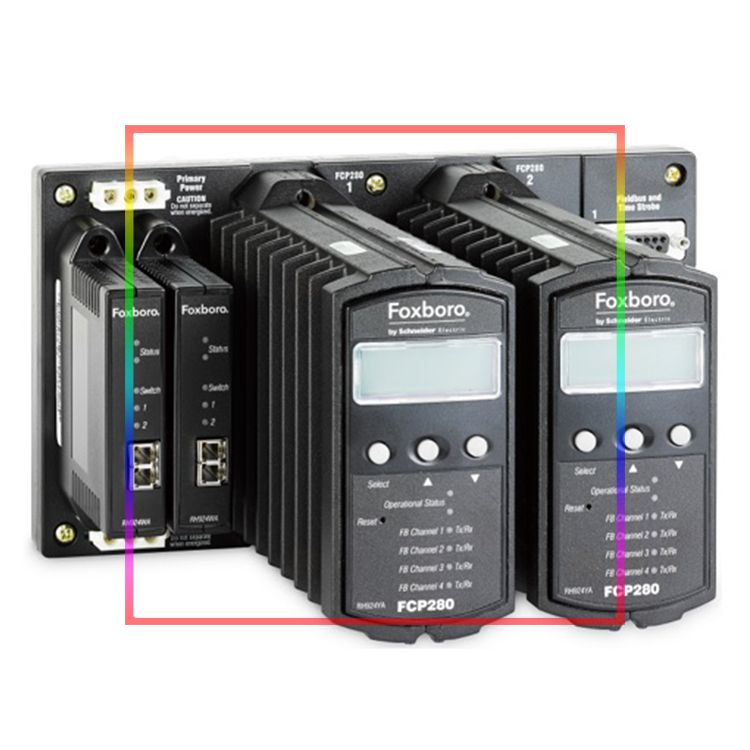

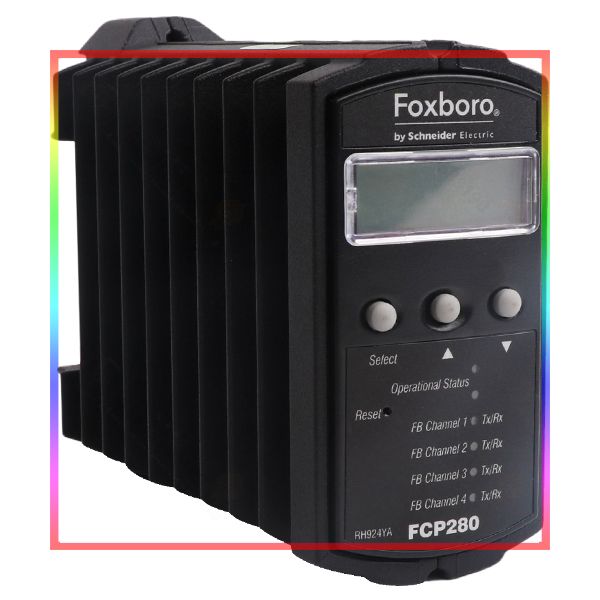

Foxboro FCP280 RH924YA is a Field Control Processor (FCP) module belonging to the Foxboro I/
A series under Schneider Electric. It is a distributed, fault-tolerant optional field-mounted controller
module, widely used in process industries such as petrochemicals, electric power, and metallurgy. Its main parameters are as follows:

1. Processor: Dual-core PowerPC 440.
2. Memory: 54MB SDRAM and 8MB Flash.
3. Communication interfaces: Two pairs of 100Mbps Ethernet ports, two pairs of EIA-232 ports, and one EIA-485 port.
4. Operating temperature range: -40°C to +70°C.
5. Storage temperature range: -55°C to +85°C.
6. Protection rating: IP67.
7. Power supply: 24VDC.

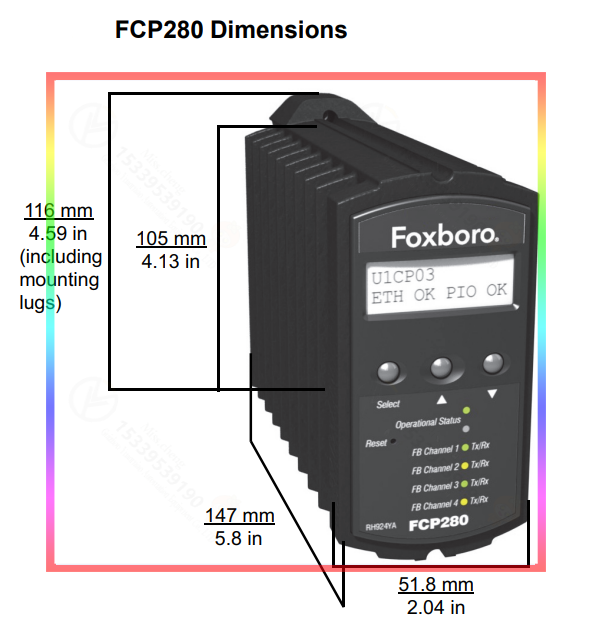

8. Dimensions: 14.7 cm in length, 5.18 cm in width, 11.6 cm in height.
9. Housing material: Stainless steel.
10. Process connection: 1/2″~2″ NPT.
11. I/O module support: Supports up to 128 compact or standard Series 200 Function Block Modules
    (FBMs), or a combination of 128 Series 100 and Series 200 FBMs.
