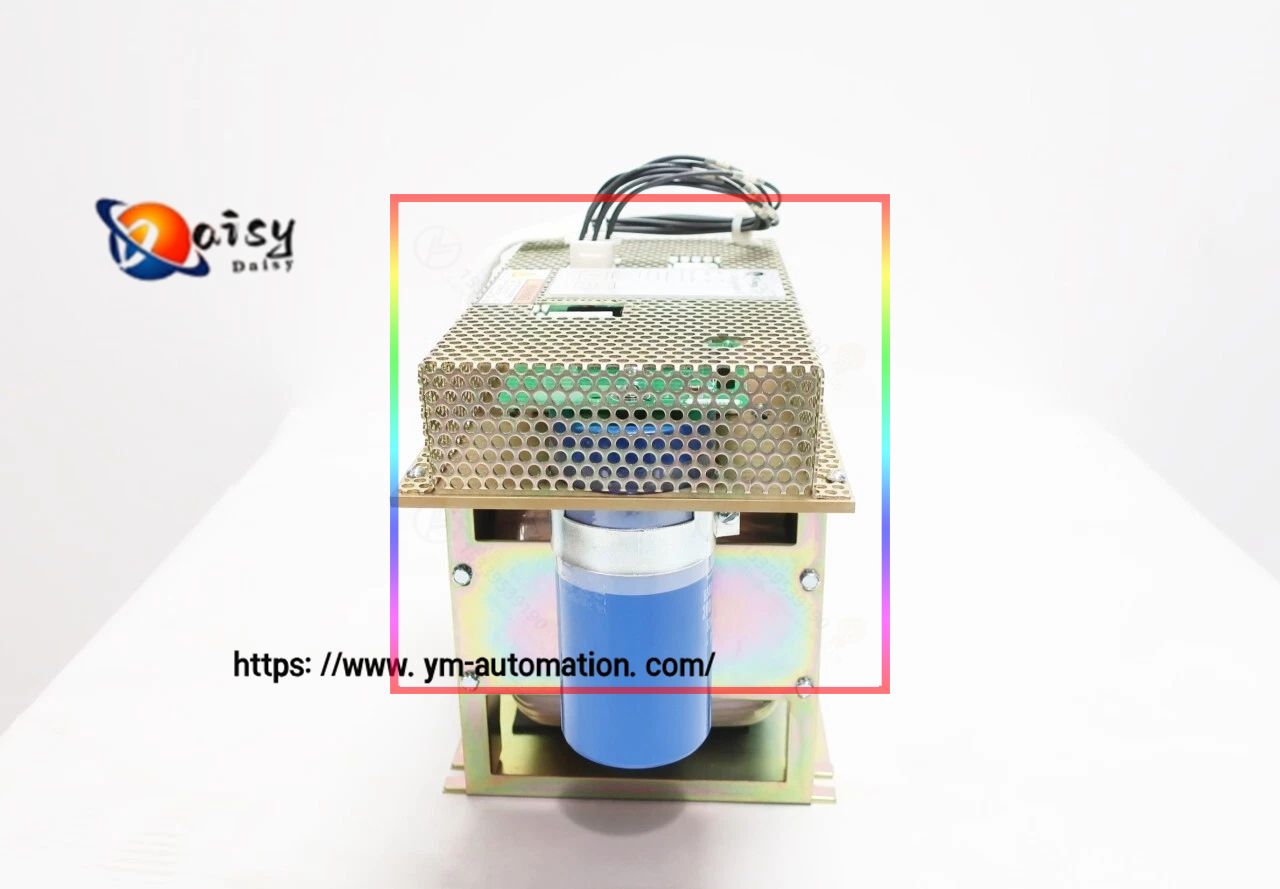

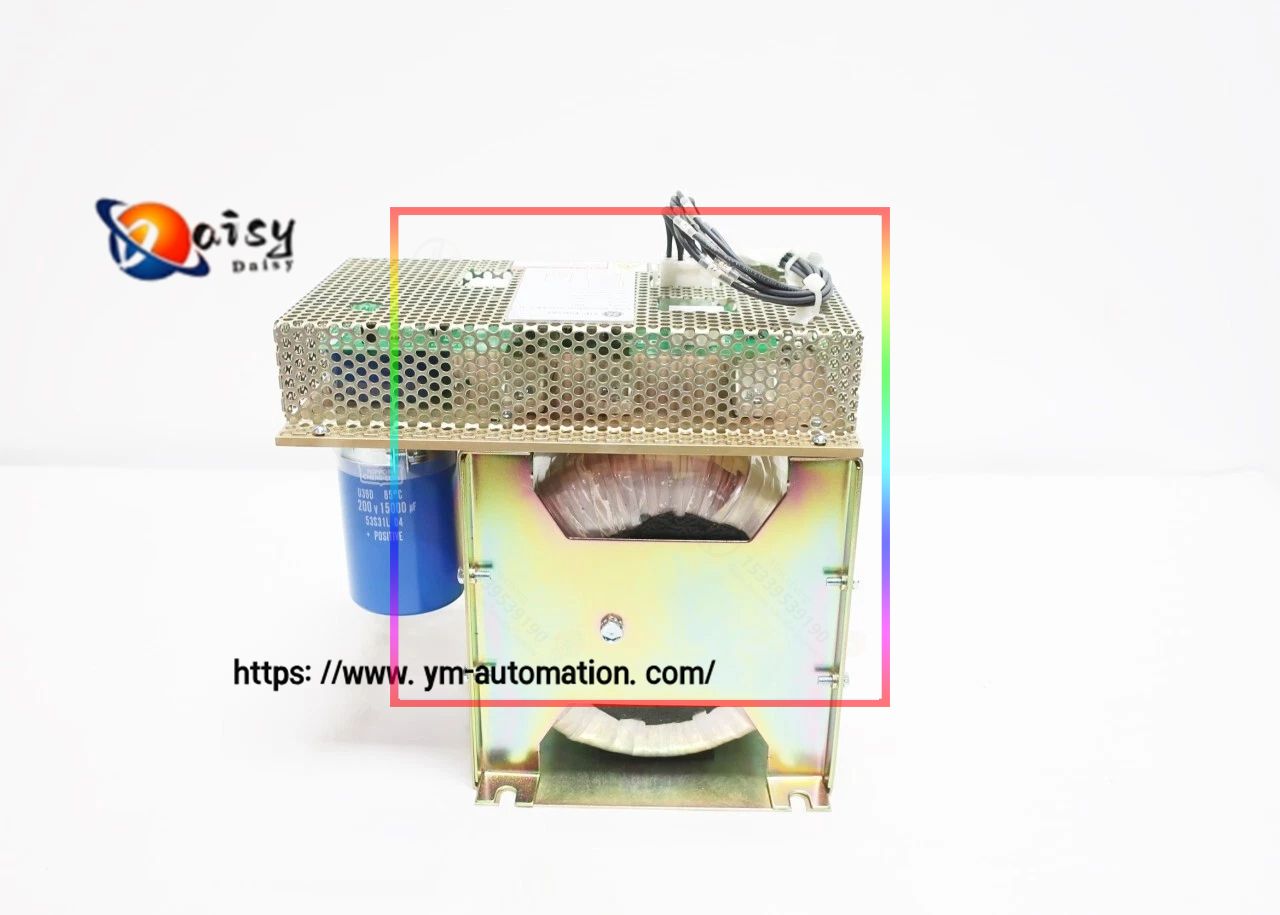

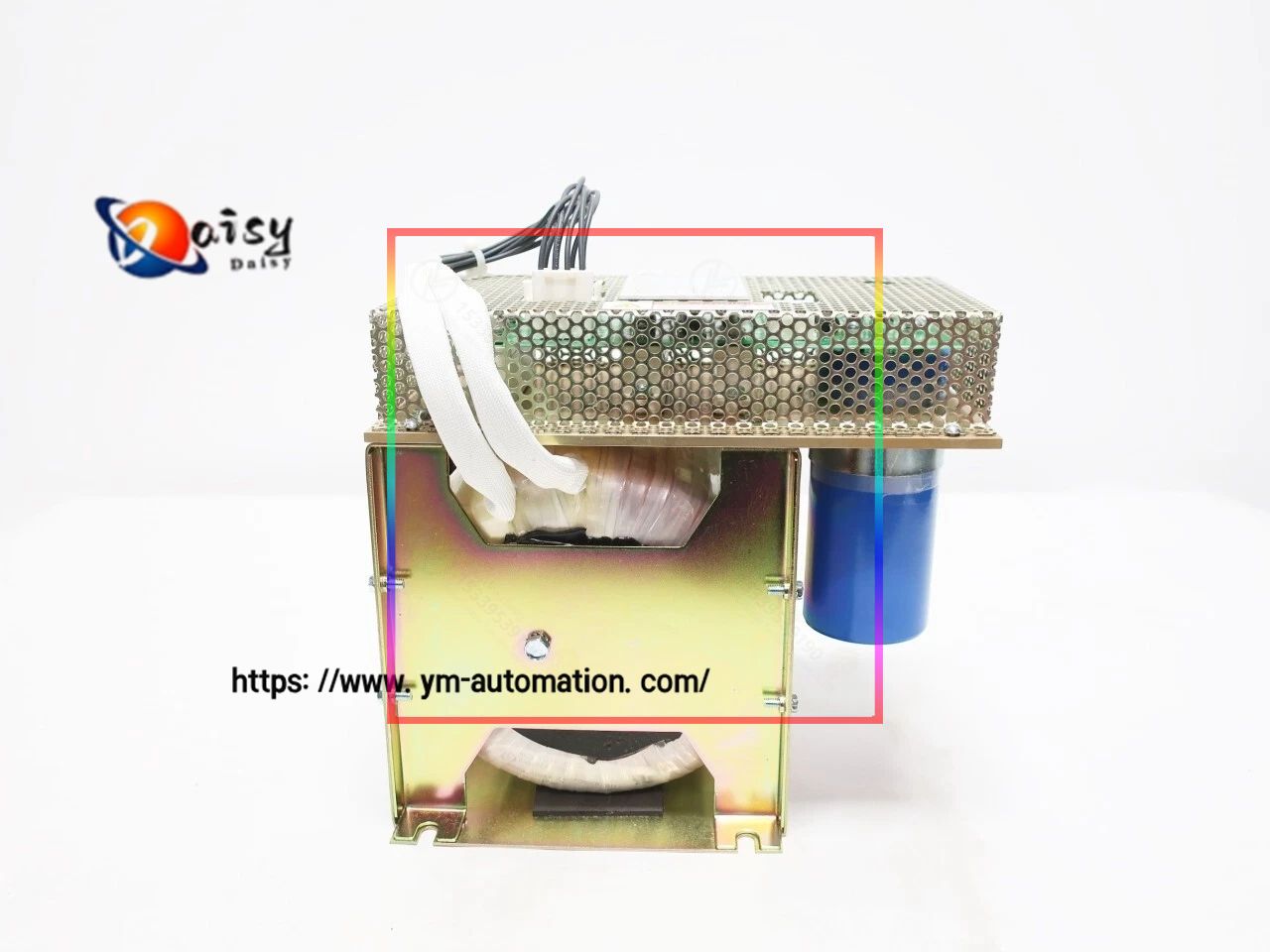

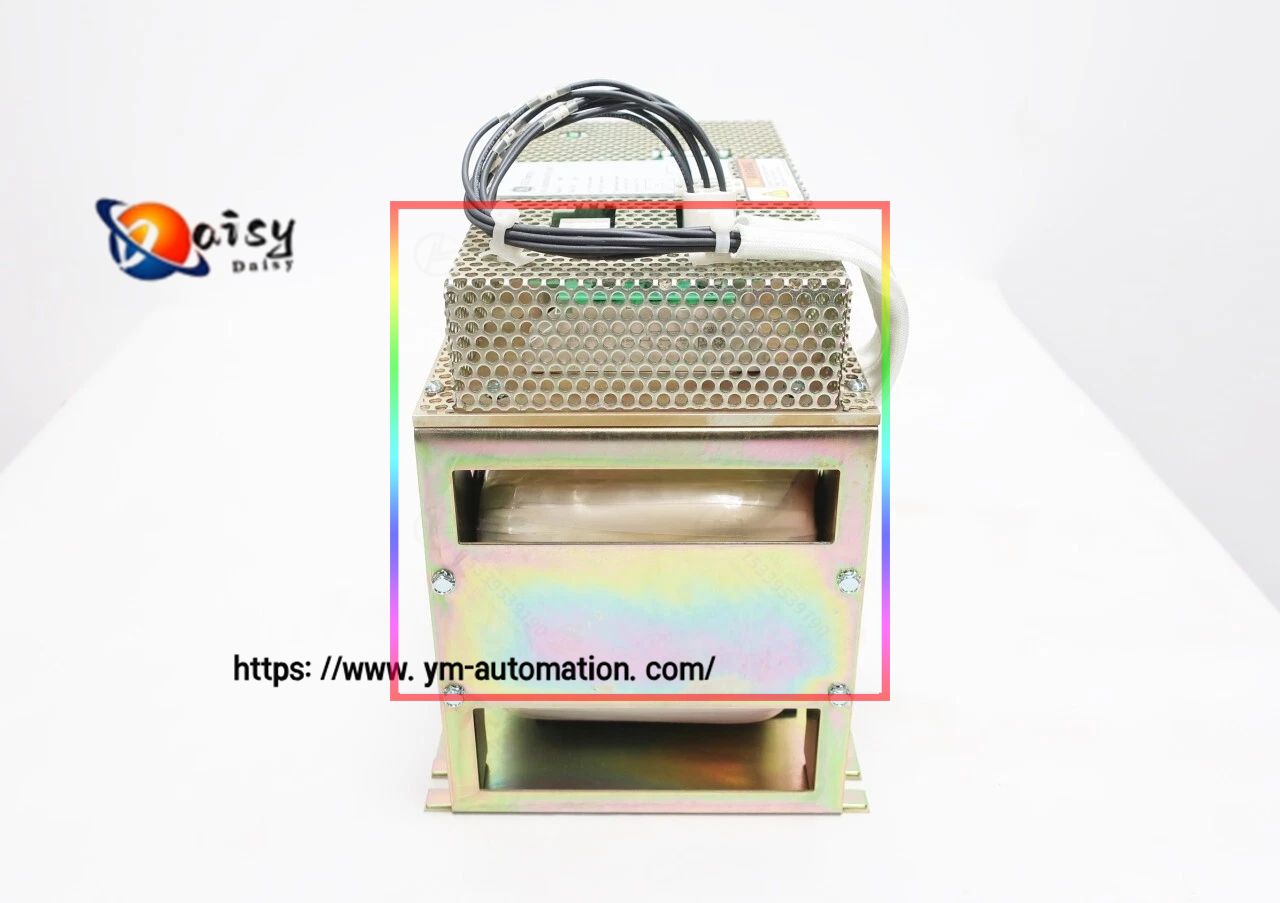

There are various opinions on GE DS2020DACAG2. Some consider it a current sensing interface board, some data show it is a digital-to-analog conversion module, and others indicate it belongs to AC/DC power conversion components. The relevant data sheet information is as follows:
Basic Information
- Manufacturer: GE Fanuc
- Product Type: Digital-to-analog conversion module or AC/DC power conversion component
- Country of Origin: United States
Dimensions and Weight
- Dimensions: 178mm × 94mm × 100mm
- Weight: Approximately 1.2kg
Electrical Parameters
- Input Voltage: 24VDC ± 10%
- Output Voltage: 125VDC
- Maximum Output Current: 30A
- Power Conversion: 115/230VAC input to 126VDC output
- Power Factor: ≥ 0.95
- Efficiency: 98%
Performance Parameters
- Resolution: 16 bits
- Output Channels: 4 independent analog outputs
- Output Range: Configurable as ±10V, 0 to 10V, or 4 to 20mA
- Accuracy: ±0.05% of full scale
- Settling Time: <10μs (to 0.01%)
- Temperature Coefficient: 5ppm/°C
Communication Interface: Supports RS-485, Profibus DP, Ethernet/IP
Operating Environment
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -55°C to 90°C
- Humidity: 5% to 95%, non-condensing
- Protection Rating: IP20
Other Features
- Diagnostic Function: Built-in self-diagnosis for fault detection
- Protection Functions: Equipped with overvoltage protection, overcurrent protection, and short-circuit protection
