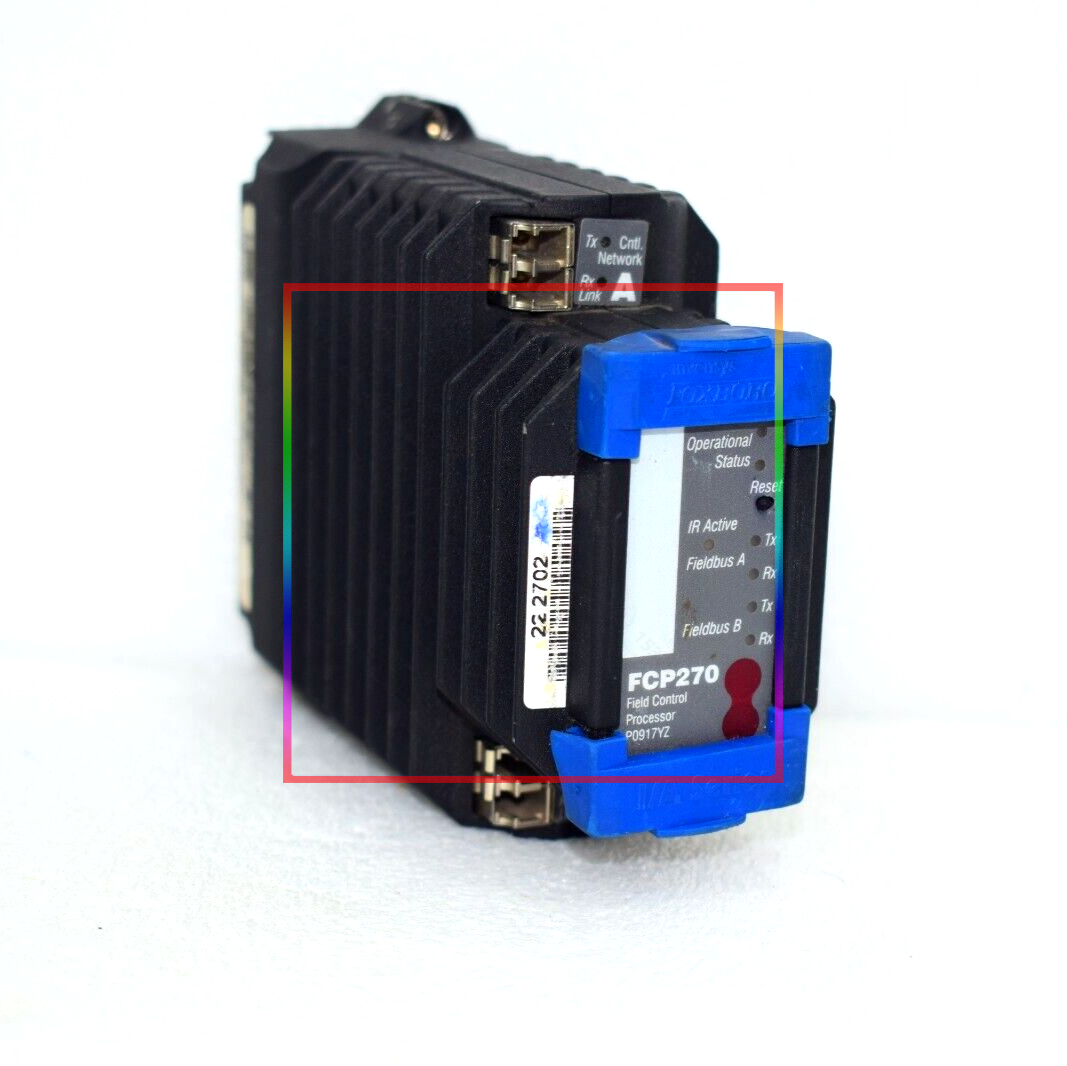

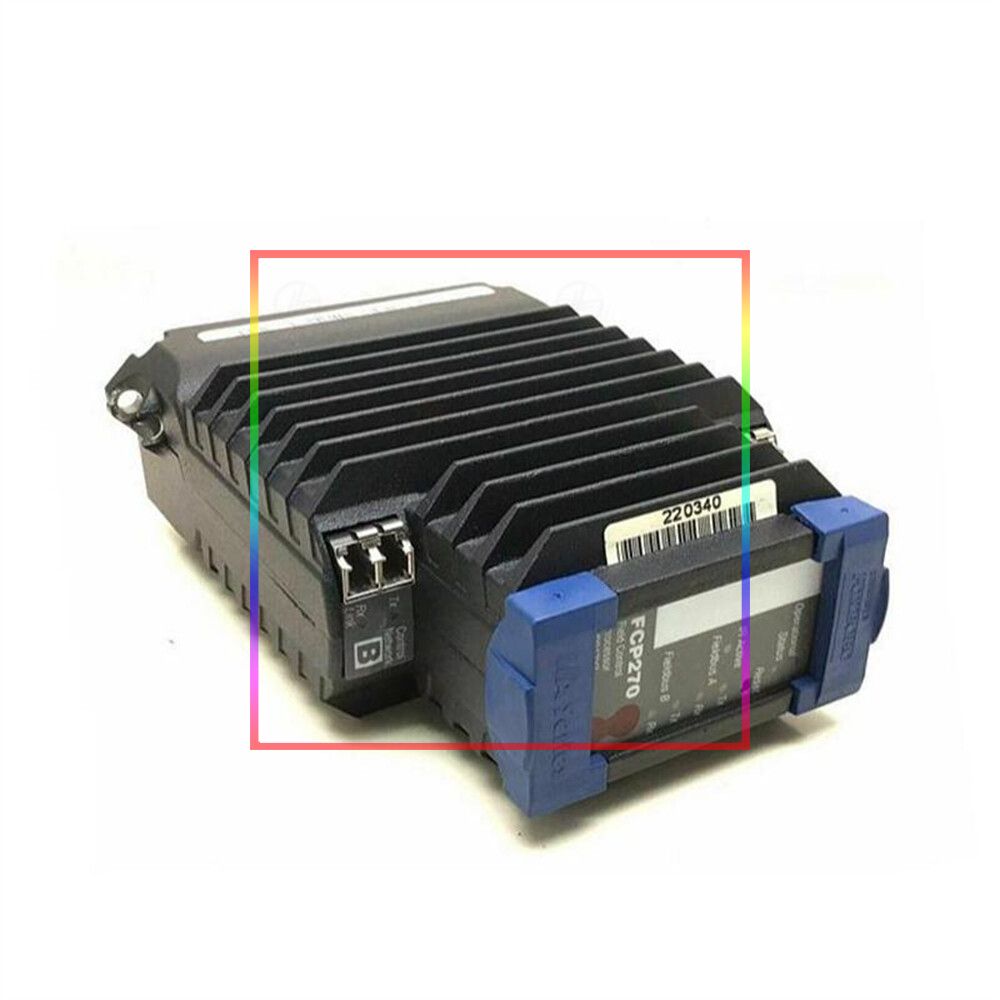

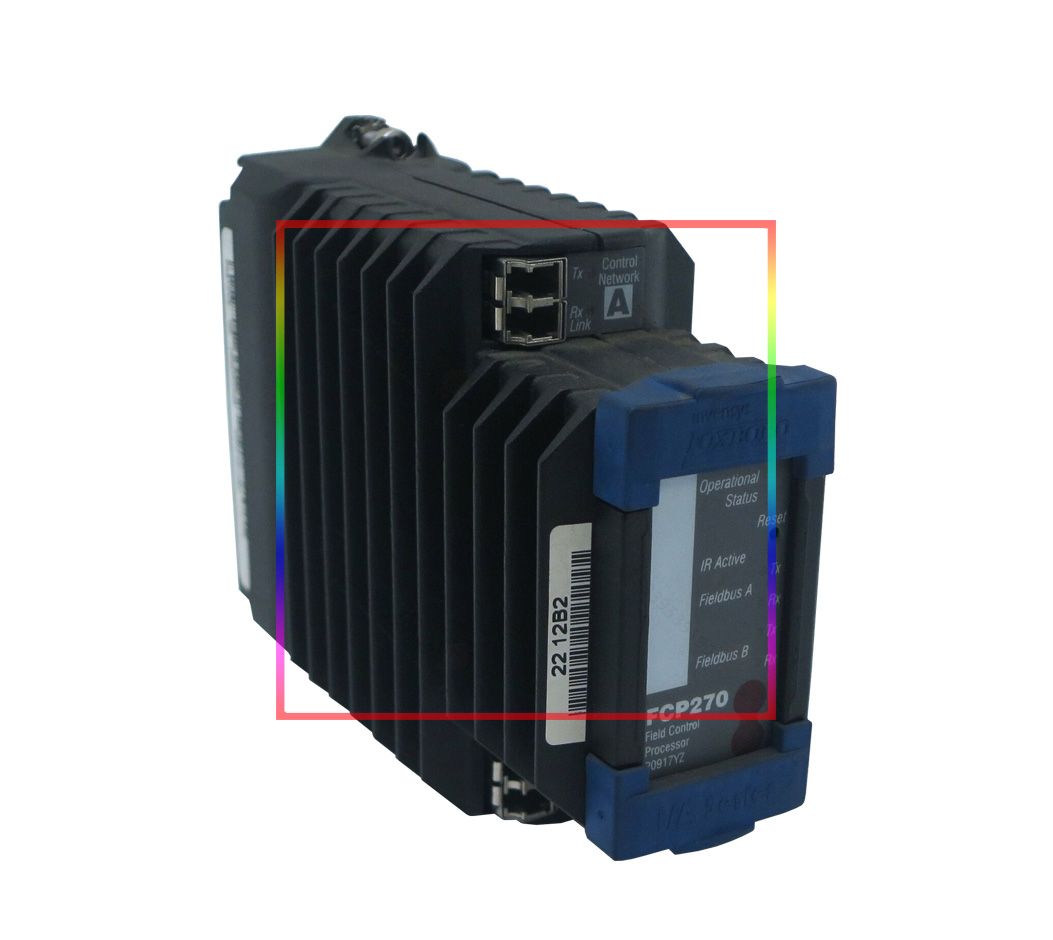

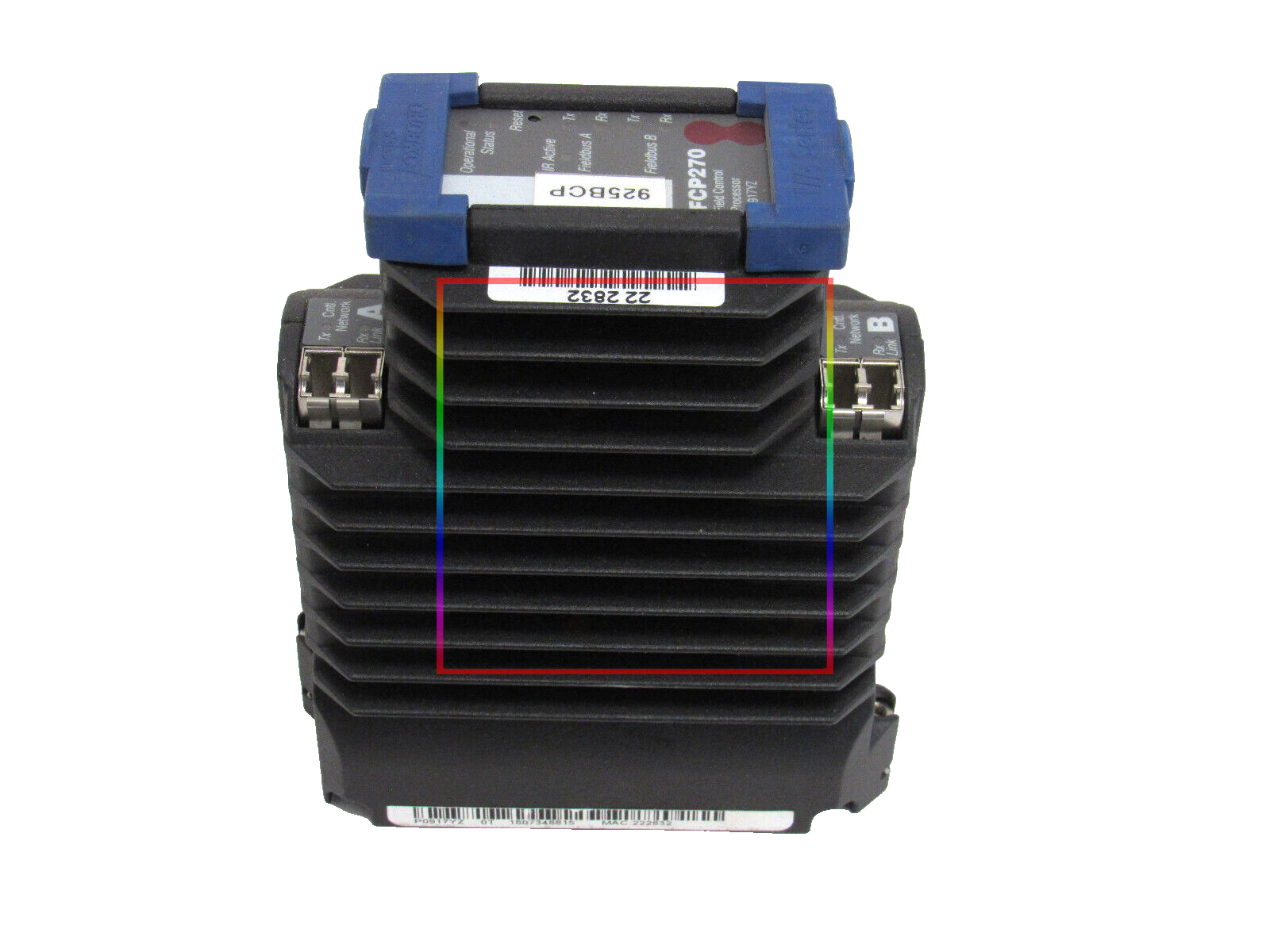

The main parameters of the FOXBORO P0917YZ FCP270 Control Processor are as follows:
- Memory: 16MB SDRAM, 32MB flash memory.
- Input Voltage: 24VDC (typical value, redundant voltage).
- Power Consumption: Maximum 8.5W per non-fault-tolerant module.
- Operating Temperature: 0°C to +60°C (+32°F to +140°F).
- Configuration: Single processor module; the fault-tolerant version consists of two processor modules, with an interconnected fault-tolerant connector integrated into the backplane.
- Dimensions: 14.7cm × 5.15cm × 11.4cm.
- Weight: 0.6kg.
- Processor: 32-bit RISC processor.
- I/O: Supports up to 32 Fieldbus Modules (FBMs); when using the Fieldbus Expansion Module 100 (FEM100), it can support up to 128 Series 200 FBMs or 64 Series 100 FBMs.
- Communication: Supports Fieldbus H1 and Ethernet communication, and connects to the mesh control network via standard 100Mbps fiber optic Ethernet.
- Functions: Can perform process control, alarm, logic control and other functions; can control variables such as temperature, pressure, flow and liquid level; also can perform data collection and storage.
