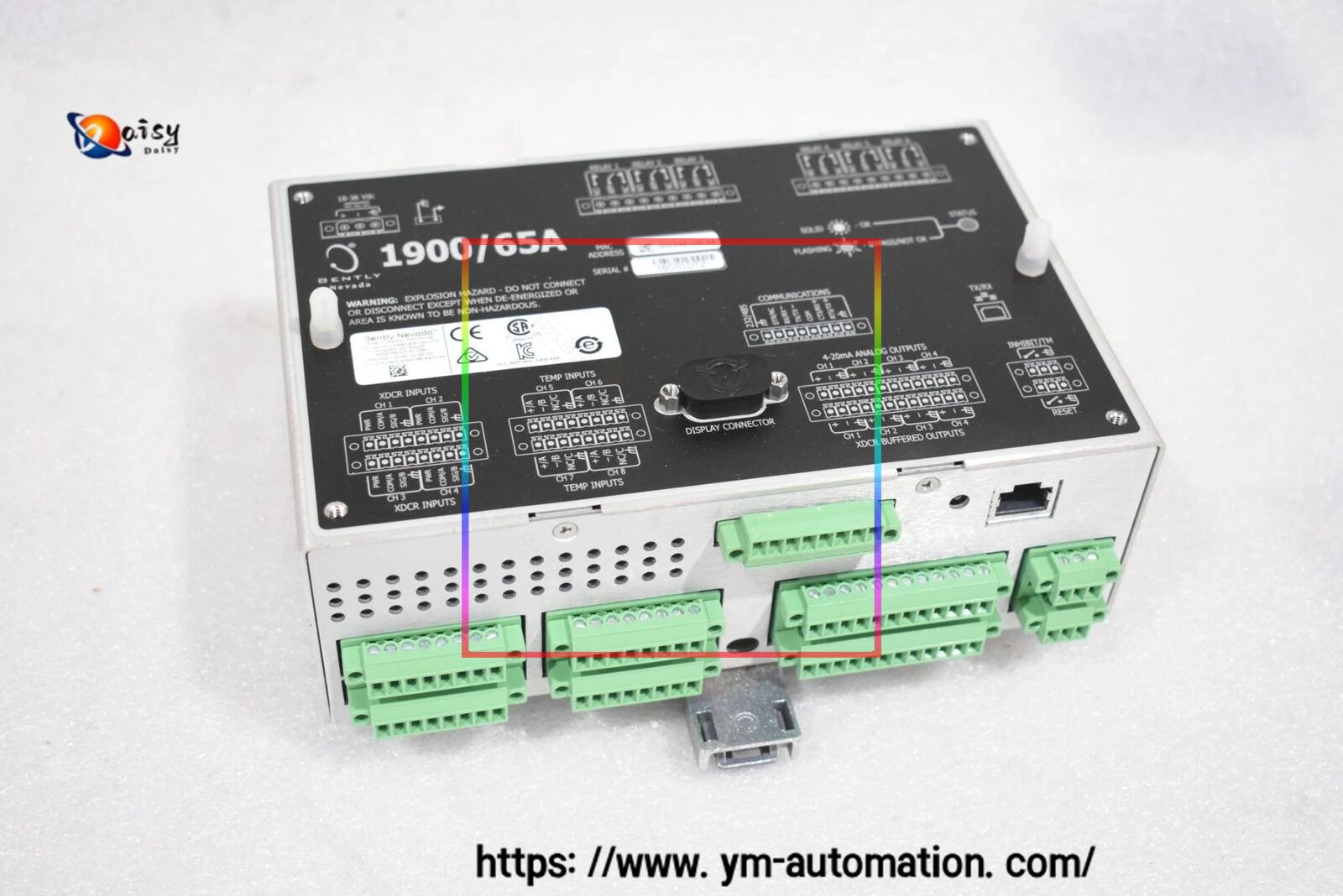

Bently Nevada 1900/65A-01-00-01-00-00 is a universal equipment monitor. Its specific parameters are as follows:
Input Parameters:
- Provides 4 sensor inputs and 4 temperature inputs.
- Sensor inputs can be configured via software, supporting 2-wire and 3-wire accelerometers, velocity sensors, or proximity sensors.
- Temperature inputs support E, J, K, and T type thermocouples, as well as 2-wire or 3-wire RTDs.
Output Parameters:
- Equipped with 6 relay outputs; users can configure the opening and closing of relay contacts according to channel status through the 1900 configuration software.
- 4 4-20mA recorder outputs, which can be configured via software to output any variable from any channel.
- 1 dedicated buffered output, which can provide signals for each sensor input.
Communication Parameters: Supports Modbus communication, and can communicate via Ethernet and software-configurable RS232/485 serial ports. It can directly provide static variables, status, event lists, time, and date information to Modbus clients such as DCS, SCADA systems, etc.
Power Parameters: Power supply is 18 to 36Vdc.
Dimensions and Weight: The monitor module dimensions are 19.69cm x 14.94cm x 7.44cm, and the shipping weight is 8kg.

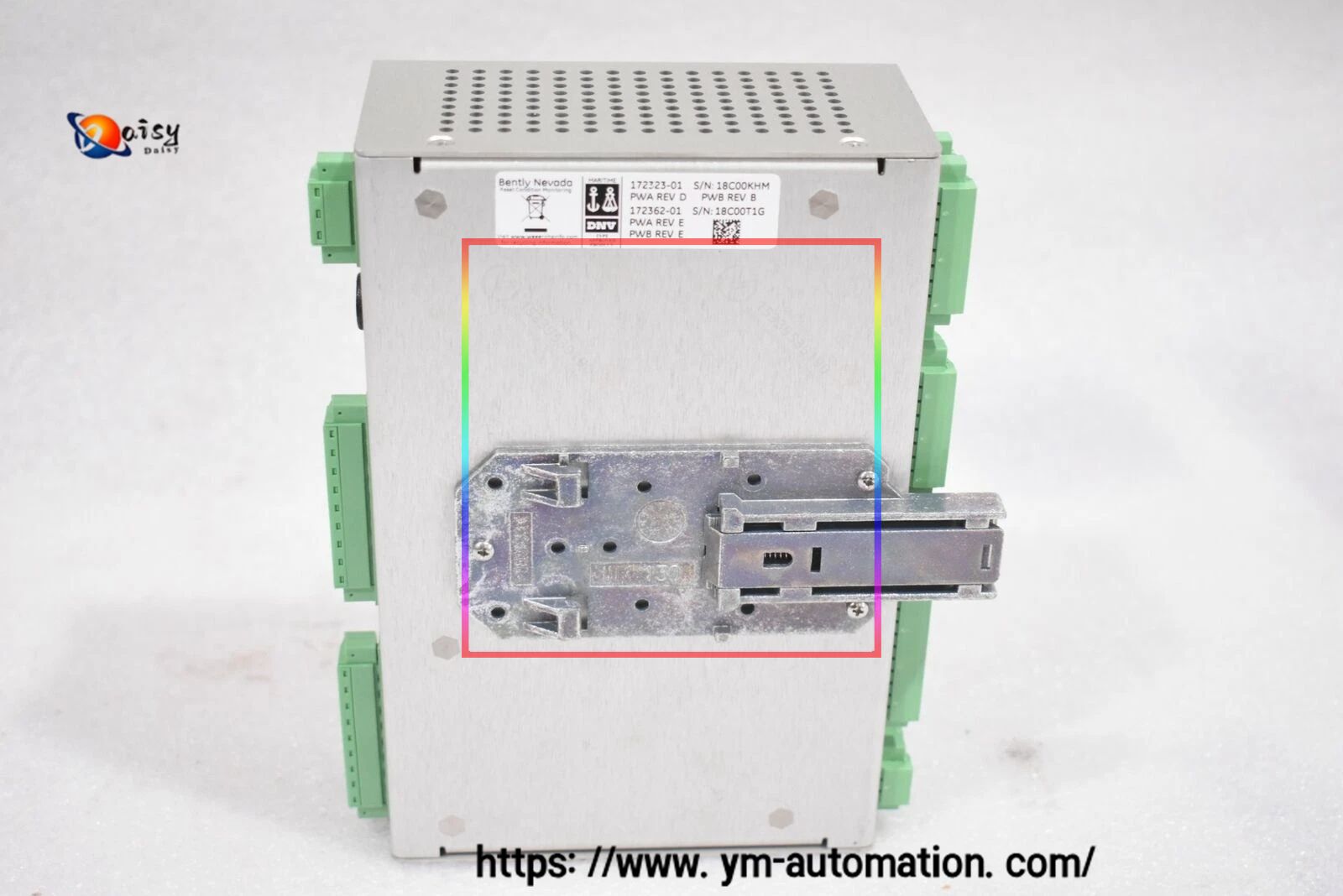

Other Parameters: Can be installed on DIN rails. Supports an optional display/keypad for viewing channel information or making minor configuration changes.
