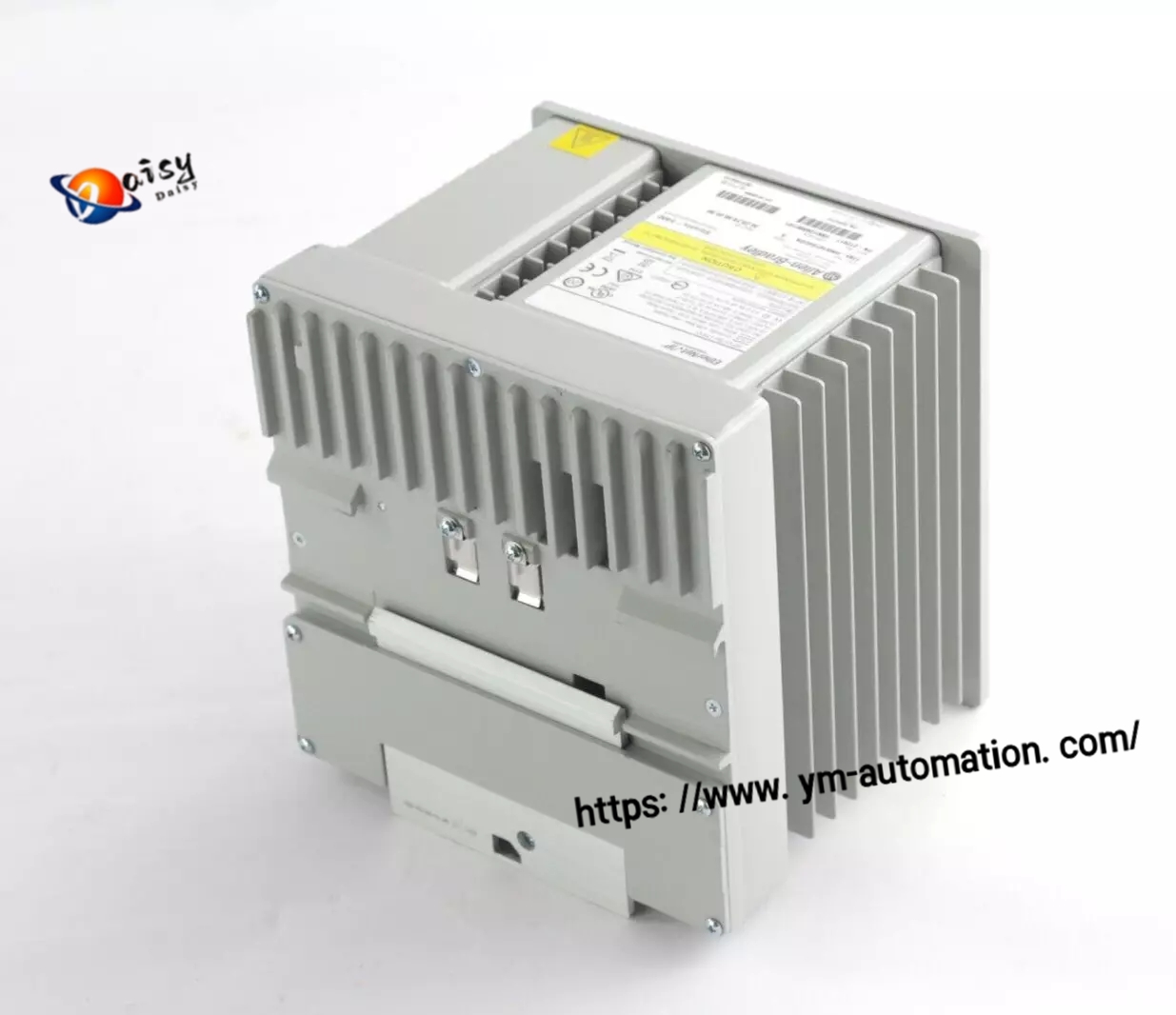

The 1783-HMS16TG4CGN is an industrial Ethernet switch in Rockwell Automation's Stratix 5700 series. It is suitable for large-scale industrial networks requiring high reliability and supports high-bandwidth transmission and complex network topologies.

Core Parameters

Port Configuration: 16x 10/100/1000BASE-T PoE+ copper ports (30W per port, total power budget 370W), 4x 1000BASE-X SFP fiber slots

Performance: Switching capacity of 40 Gbps, forwarding rate of 29.8 Mpps, supports RSTP/MSTP/DLR redundancy protocols

Management Functions: Compatible with RSLogix/Studio 5000, supports SNMPv3, DHCP, and 802.1X authentication

Environment & Power Supply: Operating temperature 0-60°C, 100-240V AC input (redundant power support available), IP30 protection rating

Certifications: UL 508, CSA C22.2 No.14, compliant with EN 61000 EMC standards

Application Scenarios

Large-Scale Factories: Connects PLCs, robots, and vision systems; uses VLAN to isolate production line data; powers wireless APs/cameras via PoE+.

Petrochemical & Energy Industry: Aggregates data in DCS systems; DLR ring network ensures millisecond-level failover to avoid production interruptions.

Smart Buildings & Infrastructure: Connects HVAC and security devices; uses fiber to extend transmission distance for large-scale building coverage.

Transport Hubs (Airports, Subways): Integrates surveillance cameras and dispatch terminals; PoE+ simplifies wiring; enhances secure access control.

Operating Principle

Data Switching: Uses store-and-forward mechanism to forward data based on MAC address table, reducing network congestion.

Redundancy Protection: DLR ring network supports 3ms failover; dual-power design prevents switch downtime.

PoE+ Power Supply: Powers devices (15.4W/30W) per IEEE 802.3af/at standards via Ethernet cables, simplifying wiring.

Security Management: Isolates networks with VLAN; uses 802.1X and ACL to block unauthorized access; supports encrypted communication.

System Collaboration: Seamlessly integrates with Rockwell control platforms, enabling real-time monitoring and remote diagnostics.
