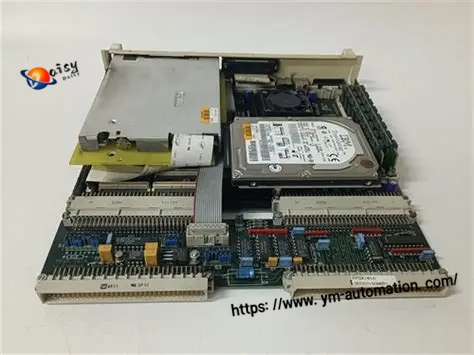

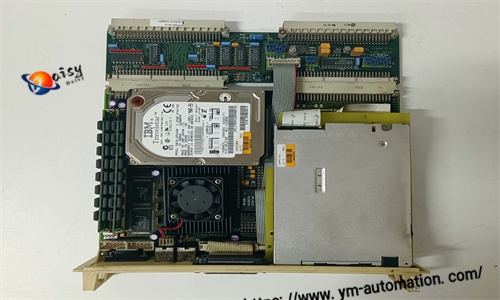

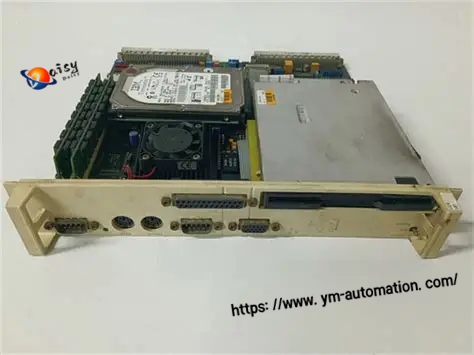

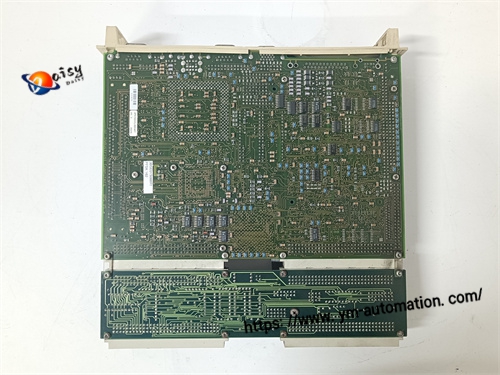

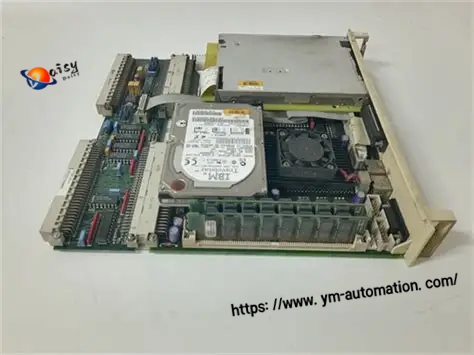

ABB PFSK162 3BSE015088R1 Signal Conditioning Module

Brand：ABB

Product ID：

Place of Origin：

Warranty： 365 days

Goods status： new/used

Mail： 3598571032@qq.com

Phone/Wechat/Whatsapp：+86 15339539190

Phone：+86 15339539190

Product Details

Product Overview

ABB PFSK162 (Model: 3BSE015088R1) is a core signal conditioning module in ABB's
automation control systems. It is primarily used to receive, adjust, and output control signals,
converting on-site industrial signals into standard industrial control signals for recognition and
processing by PLC or DCS systems. It is widely applied in industrial automation, energy, building automation, and other fields.

Detailed Specifications

Parameter	Details
Model	PFSK162 3BSE015088R1
Number of Channels	2 - 16 channels
Supply Voltage	DC 24V (requires AC220V - 24VDC power adapter)
Gain	Customizable from 1 - 100; default value: 1
High-Frequency Upper Limit	Customizable from 1 - 100kHz; default value: 100kHz
Low-Frequency Lower Limit	Customizable to 0.08Hz; default value: 0.08Hz
Operating Temperature Range	-10°C to +40°C
Operating Humidity Range	≤85%
Protection Class	IP20
Dimensions	263×58×88mm
Weight	0.43kg
Input Type	Analog input (configurable)
Output Type	Digital output, analog output (configurable)
Interface Type	Ethernet, RS-232 serial interface, CAN communication interface, etc.
Communication Protocols	Supports EtherCAT, PROFIBUS, Modbus TCP, OPC-UA, etc.

Product Features

Multifunctionality: Processes both analog and digital signals, with capabilities for signal amplification, attenuation, linearization, and filtering.

High Precision & Reliability: Uses precision electronic components to ensure high accuracy and stability in signal processing, meeting requirements for most industrial control applications.

Flexibility: Signal processing functions can be flexibly adjusted via software configuration to adapt to diverse application needs.

Excellent Isolation Protection: Features robust electrical isolation to effectively shield control systems from interference signals.

Modular Design: Facilitates easy installation and maintenance, enabling flexible setup of various signal processing systems.

Application Fields

Industrial Automation: Used in process control and machine control scenarios to achieve precise control of industrial production processes.

Energy Sector: Applied in power system monitoring and management, such as excitation control of generators.

Building Automation: Enables intelligent management of building equipment, e.g., precise control of temperature, pressure,
and other parameters in HVAC systems.

Other Fields: Also used in data acquisition and signal transmission/conversion in machinery, electrical, telecommunications,
petroleum, chemical, steel, and wastewater treatment industries.
