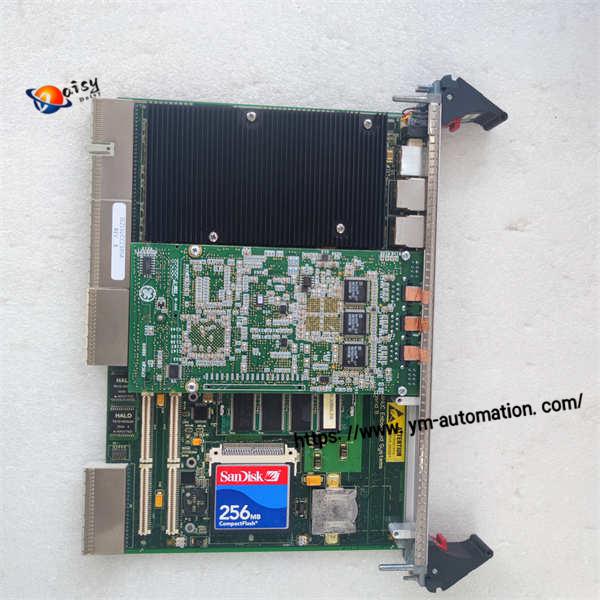

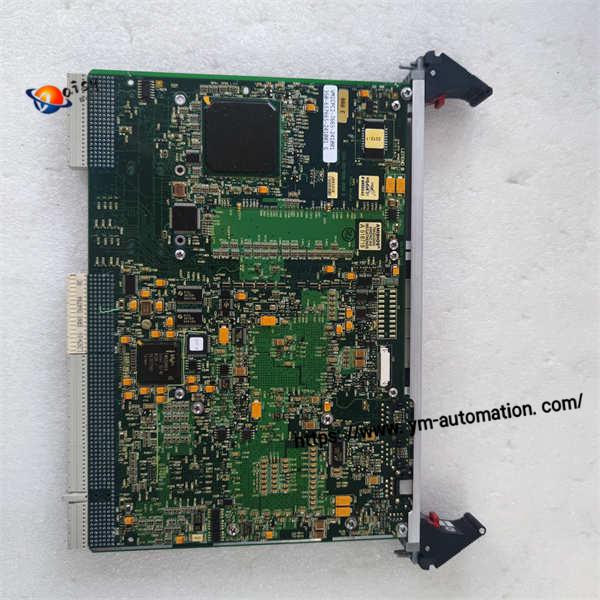

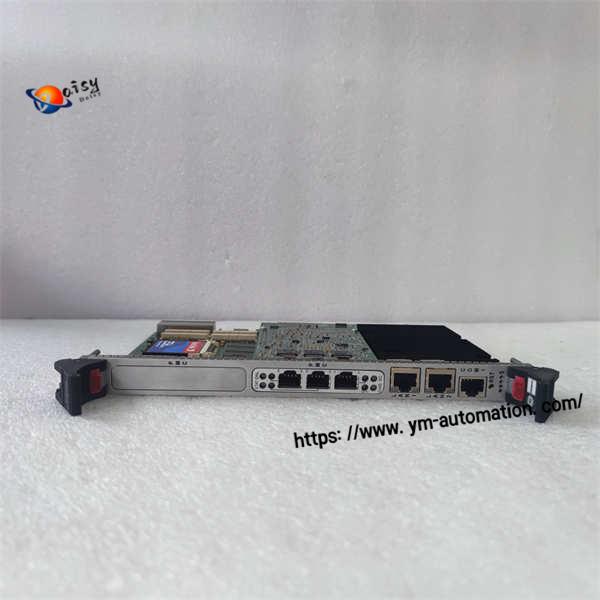

GE IS215UCCCS05A Controller Module

Brand：GE

Product ID：

Place of Origin：

Warranty： 365 days

Goods status： new/used

Mail： 3598571032@qq.com

Phone/Wechat/Whatsapp：+86 15339539190

Phone：+86 15339539190

Product Details

GE IS215UCCCS05A Controller Module - Technical Specs & Applications

Product Overview

The GE IS215UCCCS05A is a high-performance central processing unit (CPU) module designed for GE’s Mark VIe distributed control system (DCS). Engineered to deliver reliable and efficient control for industrial processes, this module integrates advanced processing capabilities, multi-protocol communication, and robust fault tolerance. It is widely used in power generation, oil & gas, petrochemical, and manufacturing industries to manage complex automation workflows, ensuring operational stability and optimizing productivity.

Core Technical Specifications

Parameter Category	Detailed Specifications
Model Number	IS215UCCCS05A
Manufacturer	General Electric (GE)
Series	Mark VIe
Module Type	Central Processing Unit (CPU)
Processor	Intel Core i7-6700TE (2.4 GHz, 4 cores, 8 threads)
Memory	8 GB DDR4 RAM (2133 MHz), 128 GB SSD
Operating System	GE Fanuc Real-Time Operating System (RTOS)
Communication Interfaces
Ethernet Ports	4 x 10/100/1000 Mbps RJ45 ports (supports TCP/IP, Modbus TCP, Ethernet/IP)
Serial Ports	2 x RS-485 (Modbus RTU), 1 x RS-232 (debugging)
Other Interfaces	2 x USB 3.0, 1 x VGA, 1 x HDMI
Power Requirements
Input Voltage	24 VDC ±10%
Power Consumption	Maximum 60 W
Environmental Ratings
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Storage Temperature	-55°C to +85°C (-67°F to +185°F)
Humidity	5% to 95% RH (non-condensing)
Protection Class	IP20 (rack-mounted)
Vibration Resistance	IEC 60068-2-6: 10–2000 Hz, 0.3 g RMS
Shock Resistance	IEC 60068-2-27: 15 g, 11 ms
Mechanical Specifications
Dimensions (L×W×H)	305 mm × 152 mm × 102 mm (12 in × 6 in × 4 in)
Weight	Approximately 2.5 kg (5.5 lbs)
Installation	Rack-mounted (3U height, 19-inch rack compatible)

Key Features

Powerful Processing: Equipped with an Intel Core i7 processor and 8 GB RAM, enabling fast data processing and real-time control of complex industrial systems.

Multi-Protocol Support: Compatible with Modbus TCP/IP, Ethernet/IP, and other industrial protocols, facilitating seamless integration with existing DCS, PLCs, and third-party devices.

Fault Tolerance: Built-in redundancy features (e.g., dual Ethernet ports, hot-swappable design) minimize downtime and enhance system reliability.

Robust Environmental Adaptability: Operates in extreme temperatures (-40°C to +70°C) and harsh industrial conditions, ensuring stable performance in demanding environments.

User-Friendly Configuration: Supports GE’s Proficy Machine Edition software for intuitive programming, monitoring, and diagnostics, reducing setup and maintenance time.

Expandable Memory: 128 GB SSD provides ample storage for application programs, historical data, and system logs.

Typical Application Scenarios

Power Generation: Control and monitoring of steam turbines, gas turbines, boilers, and auxiliary systems in thermal, nuclear, and renewable energy plants.

Oil & Gas: Automation of upstream drilling, midstream pipeline transportation, and downstream refining processes, including pressure, temperature, and flow control.

Petrochemical Industry: Management of chemical reactors, distillation columns, and batch processes, ensuring precise control of parameters to meet product quality standards.

Manufacturing: Integration with production lines for process control, quality inspection, and equipment monitoring in automotive, pharmaceutical, and food & beverage industries.

Water & Wastewater Treatment: Control of pumps, valves, and treatment processes (e.g., filtration, disinfection) to ensure efficient water management.

Quality & Compliance

Complies with international standards, including IEC 61158 (industrial communication), IEC 60068 (environmental testing), and UL/cUL safety certifications.

Manufactured under GE’s strict quality management system (ISO 9001 certified), ensuring consistent performance and reliability.

Designed for long-term operation with a mean time between failures (MTBF) of over 100,000 hours.

Why Choose the GE IS215UCCCS05A?

As a core component of GE’s Mark VIe DCS, the IS215UCCCS05A combines cutting-edge technology with rugged design, making it ideal for mission-critical industrial applications. Its powerful processing capabilities, multi-protocol compatibility, and fault tolerance ensure reliable operation, reduce downtime, and lower operational costs. Backed by GE’s global technical support and extensive service network, this module is a trusted choice for industries requiring high-performance control solutions.

Technical Support & Services

Free Consultation: Expert guidance on system integration, configuration, and optimization.

On-Site Services: Installation, commissioning, and training provided by certified GE engineers.

Warranty: 1-year manufacturer warranty, with optional extended warranty plans available.

Spare Parts: Access to GE’s global inventory of genuine spare parts for quick replacements.

For more information or to request a customized solution, contact our technical team today!
