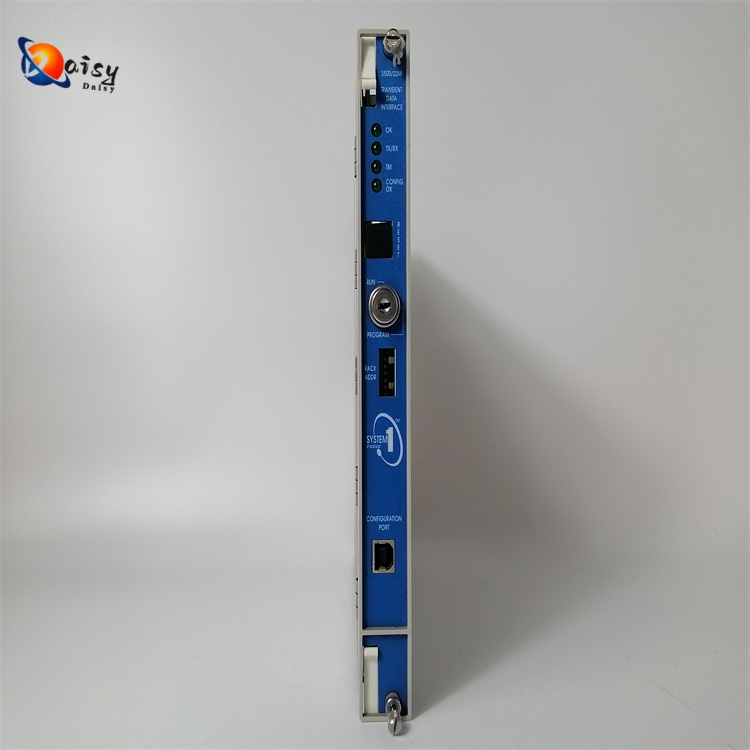

Bentley 3500/22M-01-01-00 288055-01 Transient Data Interface Module

Basic Product Information

Brand: Bentley (Bently Nevada)

Model: 3500/22M-01-01-00

Part Number: 288055-01

Product Type: Transient Data Interface Module (TDI)

Country of Origin: USA

Product Series: Bentley Nevada 3500 Series Monitoring System

Core Technical Parameters

Power Supply: 24V DC, Power Consumption 10.5W

Input Channels: 4 vibration/position/velocity inputs, 4 temperature inputs (compatible with Type E/J/K/T thermocouples and 2-wire/3-wire RTDs)

Output Configuration: 6 relay outputs, 4×4-20mA recorder outputs, 1 dedicated buffered output

Communication Interfaces: Ethernet (10Base-T/100Base-TX auto-sensing, 100Base-FX optical fiber), RS232/485 serial ports

Communication Protocols: Ethernet/IP, Profinet, Modbus RTU, DeviceNet, Profibus DP

Measurement Range: Vibration frequency 0.5Hz-200Hz, Vibration velocity 0-1000mm/s

Resolution: 24-bit ADC conversion, 0.001 sec/inch

Operating Environment: Temperature -40℃~+85℃, suitable for harsh industrial environments

Physical Specifications: Dimensions 241.3mm×24.4mm×241.8mm (H×W×D), Weight 0.91kg
Core Functions

Integrates Rack Interface Module (RIM) and high-speed data processor functions to simplify system architecture

Collects steady-state and dynamic transient waveform data, supporting startup, shutdown and trip event analysis

Multi-channel simultaneous monitoring, configurable sensor input types (2-wire/3-wire accelerometers, velocity sensors, etc.)

Built-in 200-entry event list, supporting fault trend analysis and predictive maintenance

Network redundancy and encrypted communication functions to ensure continuous and secure data transmission

Compatible with GE System 1 condition monitoring software and 3500 system configuration software
Application Fields
Suitable for power, petrochemical, metallurgical, pharmaceutical and other industries. It can monitor key rotating machinery such as steam turbines, compressors, pumps and fans, providing data support for equipment fault diagnosis and protection.
