Product Overview

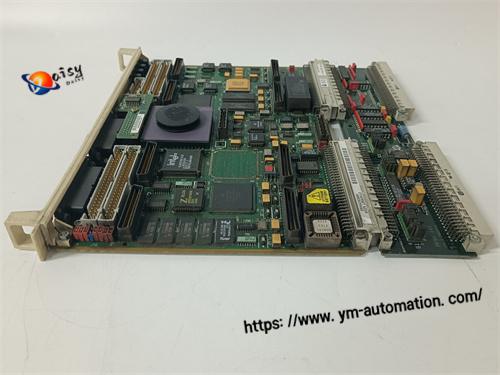

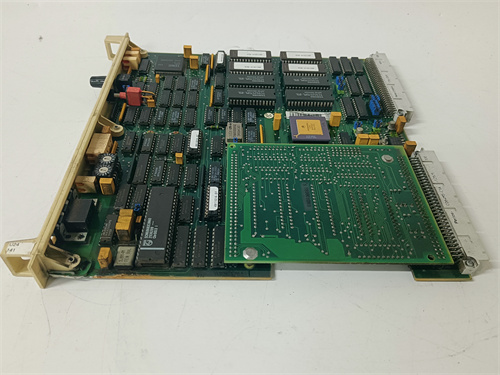

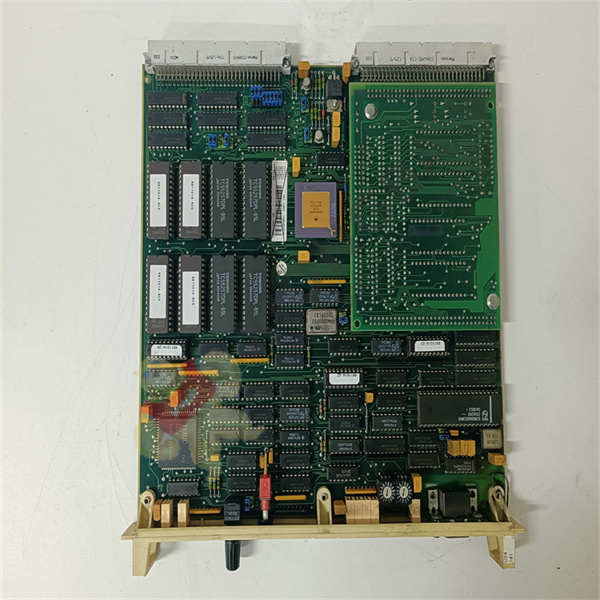

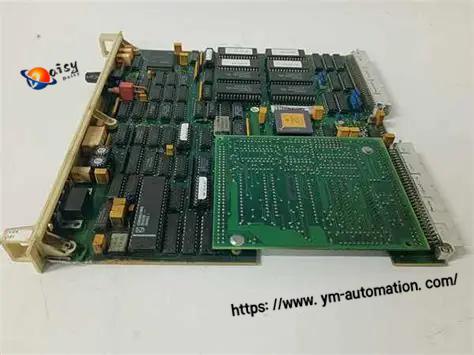

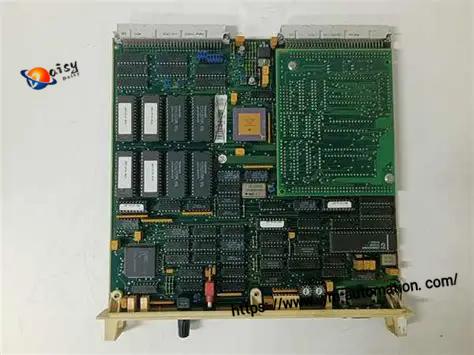

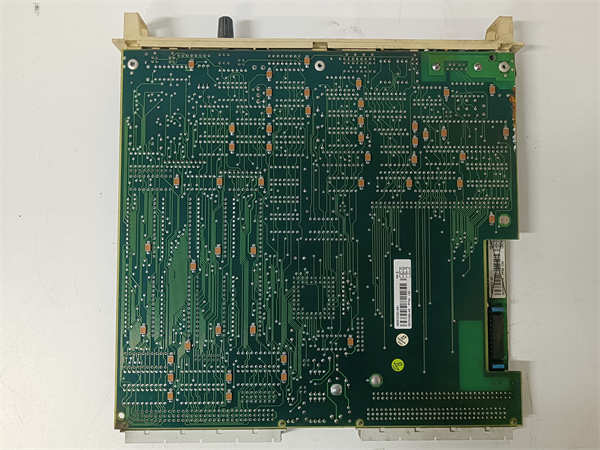

The ABB PFSK130 3BSE002616R1 is a high-performance channel control unit for industrial automation systems. As a core component of ABB Advant OCS/800xA systems, it delivers precise signal processing and real-time control for critical industrial applications.

Basic Specifications

• Part Number: PFSK130 3BSE002616R1
• Manufacturer: ABB
• Product Type: Channel Control Unit / Control Board
• Origin: Sweden
• Weight: 0.6 kg
• Certifications: UL, CE


Technical Parameters

• Operating Voltage: 24V DC (±10%)
• Power Consumption: ≤4W
• Digital Response Time: ≤1ms
• Analog Accuracy: ±0.05% at 25°C
• Overvoltage Protection: ±30V
• Operating Temperature: 0°C to 70°C
• Humidity: 5%–95% (non-condensing)
• Terminals: Removable screw terminals (0.2–2.5 mm²)

Key Features

• Supports digital (24V DC sink/source) and analog (4-20mA, 0-10V) signals
• High-precision analog input processing
• Fast digital response for real-time control
• Robust overvoltage protection
• Compact modular design
• Industrial-grade durability
• Easy installation and maintenance

Applications

• Power Systems: Generator excitation control, automatic voltage regulation (AVR)
• Oil & Gas: Process monitoring and control
• Industrial Automation: Manufacturing lines, robotics control
• Chemical Processing: Pressure, level, flow monitoring
• Pharmaceutical & Food: Precision process control

Compatibility

• ABB Advant OCS
• ABB 800xA Systems
• S800 I/O Systems
• AF100, PROFIBUS-DP


Status & Warranty

• Condition: New, original factory sealed
• Availability: In stock
• Warranty: 12 months
• Packing: Original packaging
