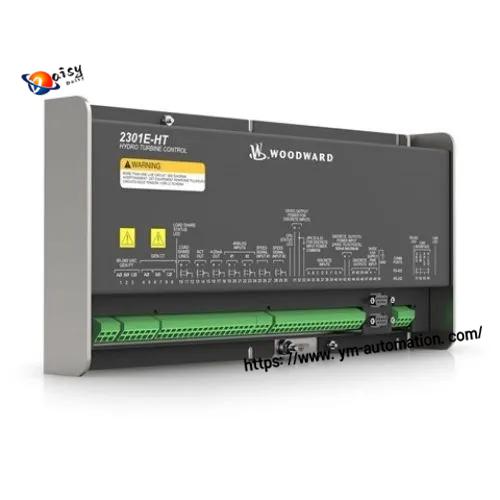

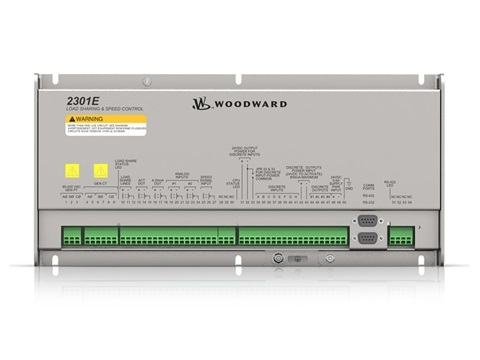

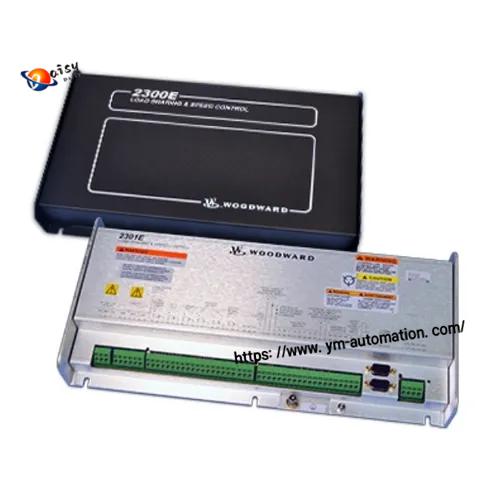

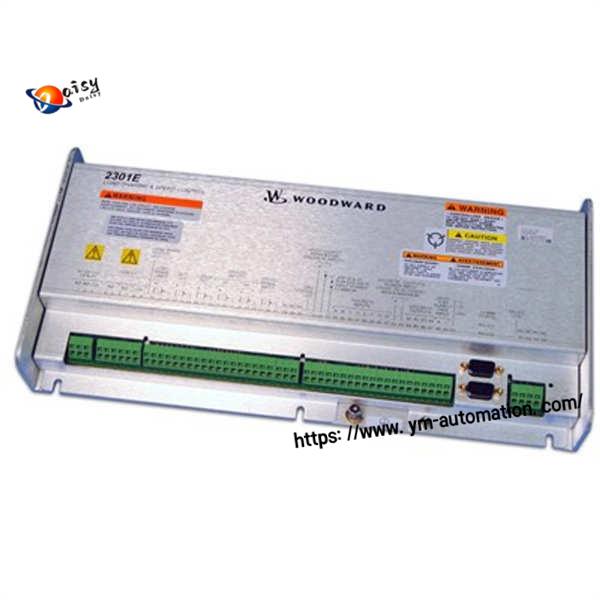

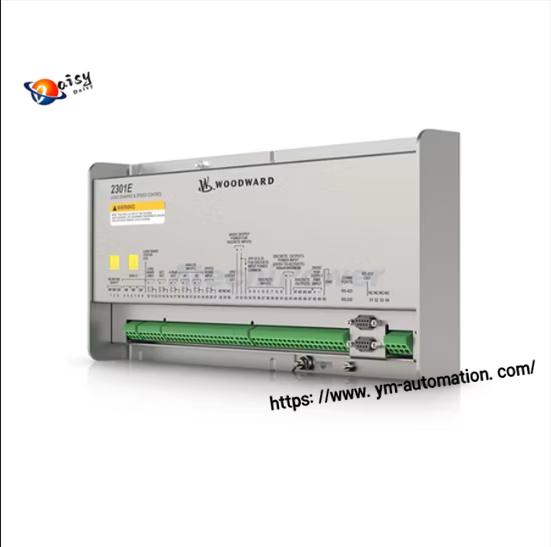

Woodward 2301E Digital Load Sharing & Speed Controller

Product Overview

The Woodward 2301E is a high-performance microprocessor-based controller engineered for precise speed regulation and load sharing
of diesel, gas engines, and generator setsWoodward. Delivering industry-leading control accuracy and robust reliability, this advanced unit serves as
a direct, backward-compatible replacement for legacy 2301A/D controllers, offering enhanced I/O, communication, and diagnostic capabilities for
critical power generation applications.

Key Specifications

• Supply Voltage: 18–36 VDC (Nominal 24VDC)
• Power Consumption: < 20WWoodward
• Speed Input: 100–24,950 Hz (90–32,000 rpm) @ 1.7–35 VacWoodward
• Speed Regulation: ±0.25% (Isochronous), 0–10% adjustable (Droop)
• Load Sharing Accuracy: ±1% of rated load
• Operating Temp: -40°C to +70°C
• Protection: IP54 (Front Panel)
• Certifications: CE, ATEX, CSA, ABS, BV, CCS, DNV, LR



•

Core Features

• Dual Operating Modes: Isochronous & Droop control for grid/island operation
• Multi-Unit Load Sharing: Manages up to 32 parallel generator sets
• Flexible Configuration: PC-programmable via Woodward Control AssistantWoodward
• Comprehensive I/O: 8 Digital In, 4 Relay Out, 2 Analog In/Out, PT/CT inputs
• Advanced Communication: RS-232, RS-422, Modbus RTU
• Built-in Protection: Over-speed, fault logging, torque & MAP limitingWoodward
• Hazardous Location Option: 8273-1012 (Zone 2, Ex ec IIC T3/T4)

Applications

• Diesel & Gas Generator Sets
• Marine Auxiliary Power Systems
• Industrial Cogeneration Plants
• Standby/Backup Power Units
• Oil & Gas Engine Driven PumpsWoodward
• Traction & Mobile Power Equipment

Why Choose Woodward 2301E?

Engineered for uncompromising performance in harsh environments, the 2301E ensures stable engine/generator operation, optimal
load distribution, and extended equipment life. Its rugged construction, extensive certifications, and backward compatibility make it the
preferred choice for system upgrades, retrofits, and new installations worldwide.
