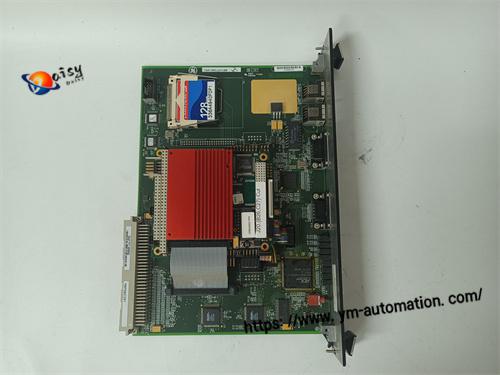

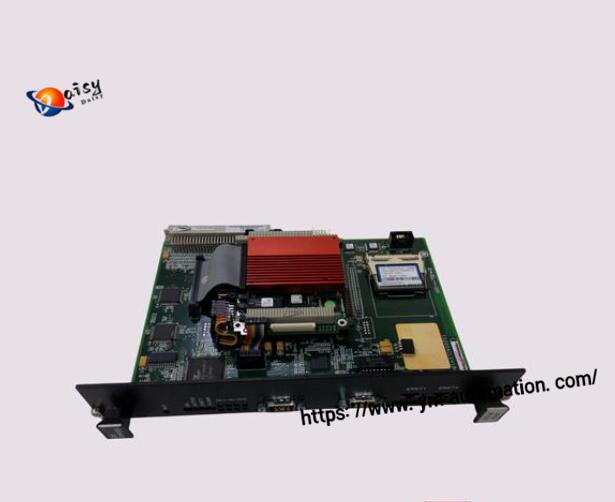

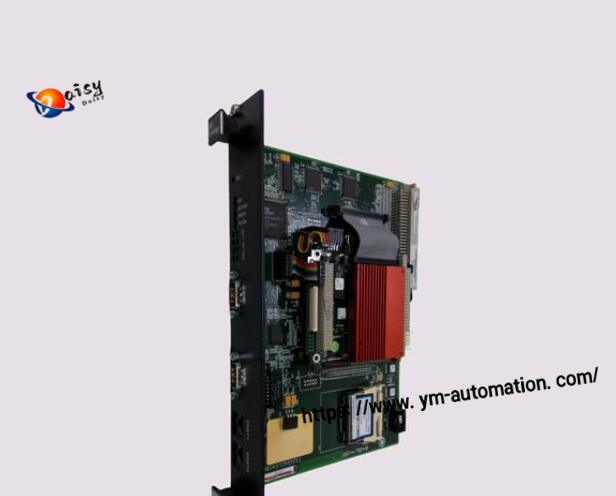

GE IS215ACLEH1BC

GE IS215ACLEH1BC is an Application Control Layer (ACL) module designed for GE Speedtronic Mark VI turbine control systems, delivering reliable control, communication, and monitoring for gas and steam turbine applications.

Product Overview

The IS215ACLEH1BC serves as a core controller within GE’s Mark VI and Innovation Series platforms, supporting EX2100e excitation systems. It occupies 2 half-slots in the backplane and provides real-time control, data acquisition, and inter-module communication via ISBus and Ethernet networks. Built for industrial-grade reliability, it ensures 24/7 operation in power generation, oil & gas, and critical process control environments.

Key Features

• Mark VI/Innovation Series Compatibility: Optimized for GE Speedtronic Mark VI and EX2100e systems
• High-Performance Processing: 100 MHz core processor with 16 KB L1 cache and 128 KB L2 cache
• Dual Communication: 10BaseT Ethernet (RJ45), RS-232/COM ports, and ISBus for seamless module integration
• Non-Volatile Flash: Onboard flash for firmware storage and offline application updates
• Industrial Ruggedness: Wide operating temperature range (-30°C to +65°C), conformal coating, and 5–95% non-condensing humidity tolerance

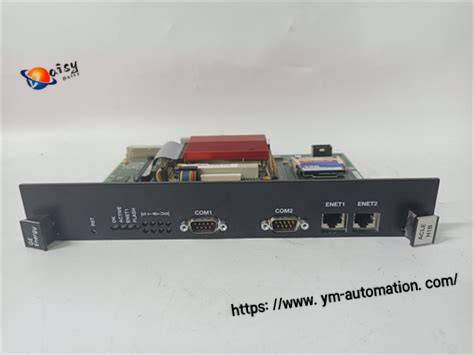

• Status Monitoring: Front-panel LEDs for system, fault, and ISBus status indication
• Backplane Power: 5 V DC supply from the rack; low-power design for efficient operation

Technical Specifications

Applications

• Power generation (gas/steam turbine control)
• Oil & gas production & processing
• Industrial process automation
• Critical control systems requiring high reliability
• Excitation system control (EX2100e)

Why Choose GE IS215ACLEH1BC

• Proven Turbine Control: Engineered for GE’s industry-leading Speedtronic Mark VI platforms
• Reliable Communication: ISBus and Ethernet for fast, secure data exchange
• Field-Ready Design: Rugged construction for harsh industrial environments
• Backed by GE Quality: Genuine replacement with full compatibility and support
