Product Description

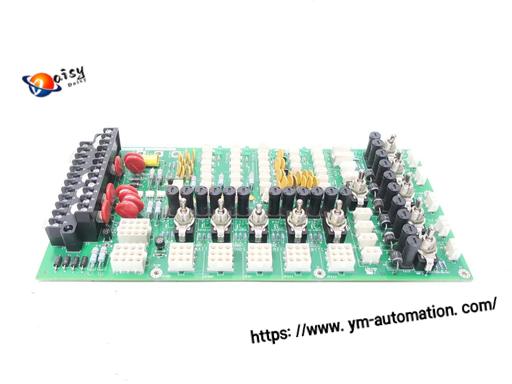

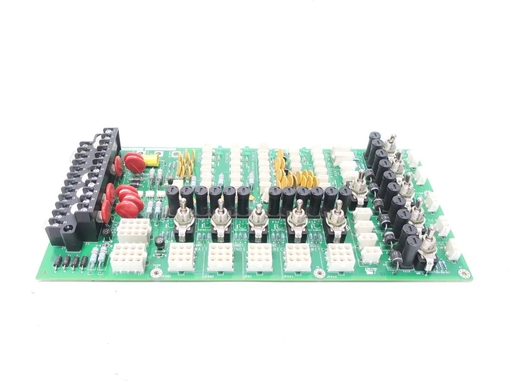

The GE IS200EDISG1AAA is a high-performance power distribution board designed for the Mark VI turbine control system and EX2100e excitation systems. Engineered by GE Industrial Systems, this critical PCB module manages and distributes regulated power to connected control components, ensuring stable operation of gas and steam turbine systems. It serves as the primary power interface between external AC/DC power supplies and internal control hardware, featuring 5 bridge switches for precise power routing.
Technical Specifications
- Part Number: IS200EDISG1AAA
- Functional Acronym: EDIS (Exciter Distribution Board)
- Input Voltage: 125 VDC; 115/220 VAC (50/60Hz)
- Auxiliary Voltage: 28 VDC
- Bridge Switches: 5 integrated bridge switches
- Weight: 2.80 lbs (1.27 kg)
- Dimensions: 15.00 x 7.25 x 1.50 inches
- Storage Temperature: -40°C to +70°C
- Manual Reference: GEI-100777
- Product Status: Obsolete (manufacturing discontinued)
Key Features
- Robust Power Management: Distributes and regulates power across turbine control system components
- Dual Input Compatibility: Accepts both AC and DC power inputs for versatile installation
- Industrial Durability: Designed for extreme temperature environments in power generation facilities
- Precision Switching: Five bridge switches with 30-second reclosing delay for safe operation
- System Integration: Seamlessly connects with Mark VI control processors and I/O modules via HSSL communication

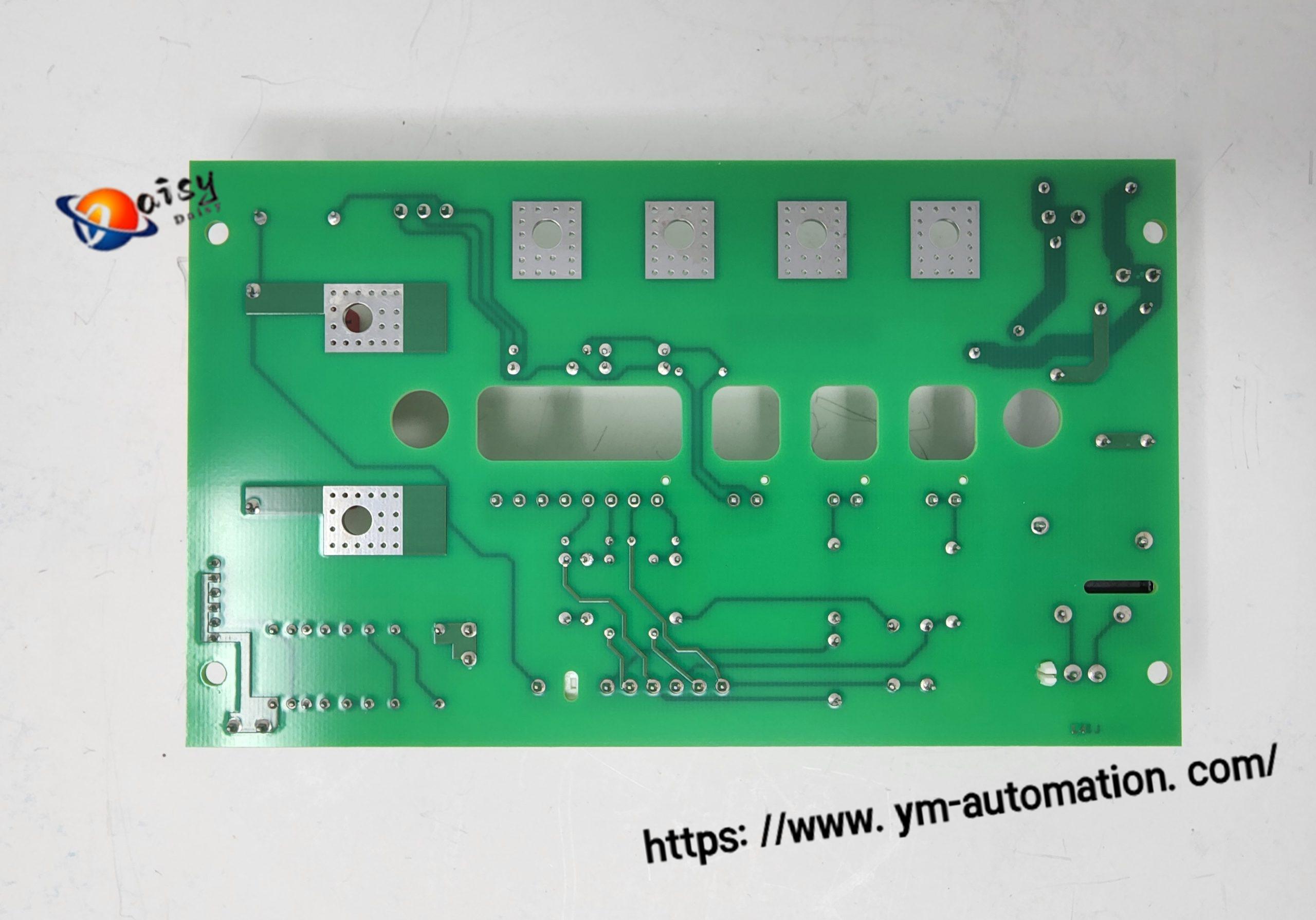

- PCB Construction: High-quality printed circuit board with standard mounting holes
Applications
- Gas turbine control systems
- Steam turbine excitation systems
- Power generation plants
- Industrial turbine control rooms
- EX2100e excitation control systems
Condition & Availability
- Available Conditions: New surplus, refurbished, used
- Warranty: 3-year warranty on refurbished units
- Lead Time: In stock, ships within 24 hours
Related Models
- IS200EDISG1A (previous revision)
- EX2100e series compatible modules
- Mark VI IS200 series control boards
