RS-FS9009-03 (RS-FS-9009-03) – GE Reuter-Stokes FTD 325 UV Flame Detector

Product Overview

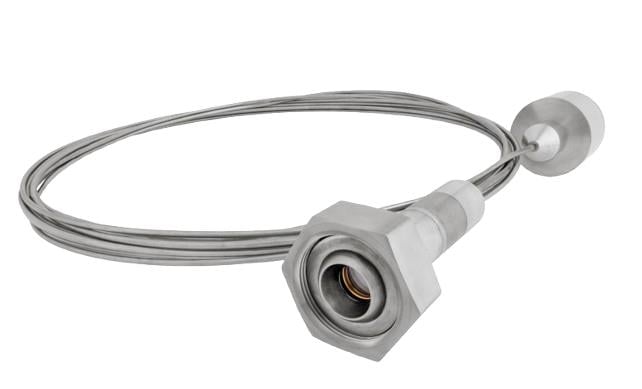

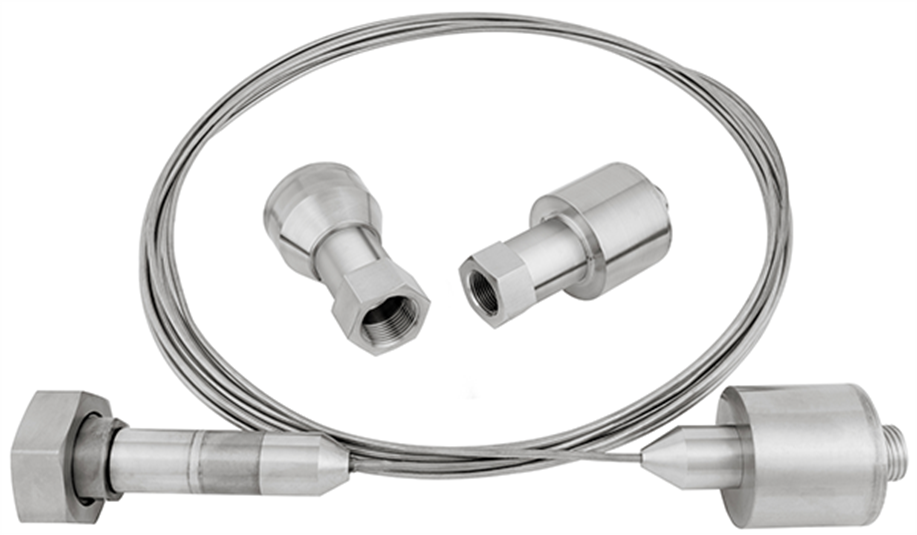

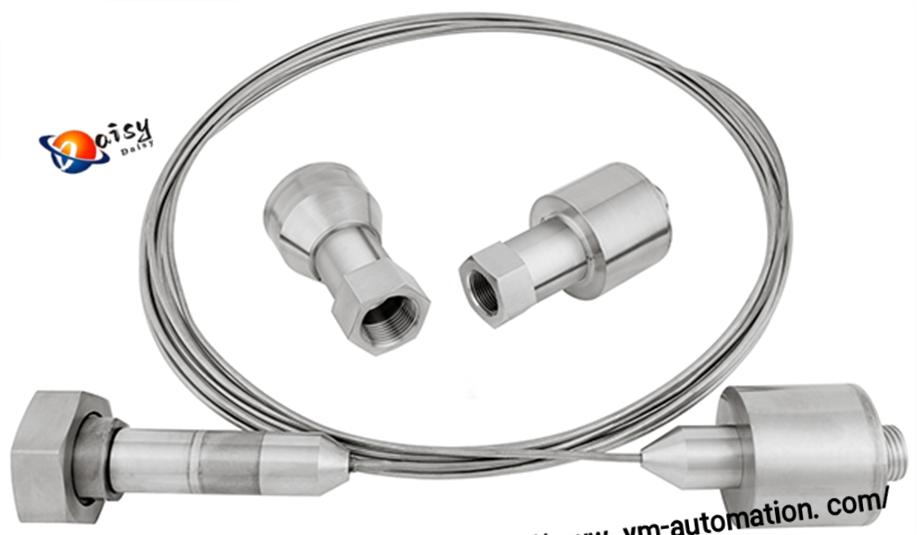

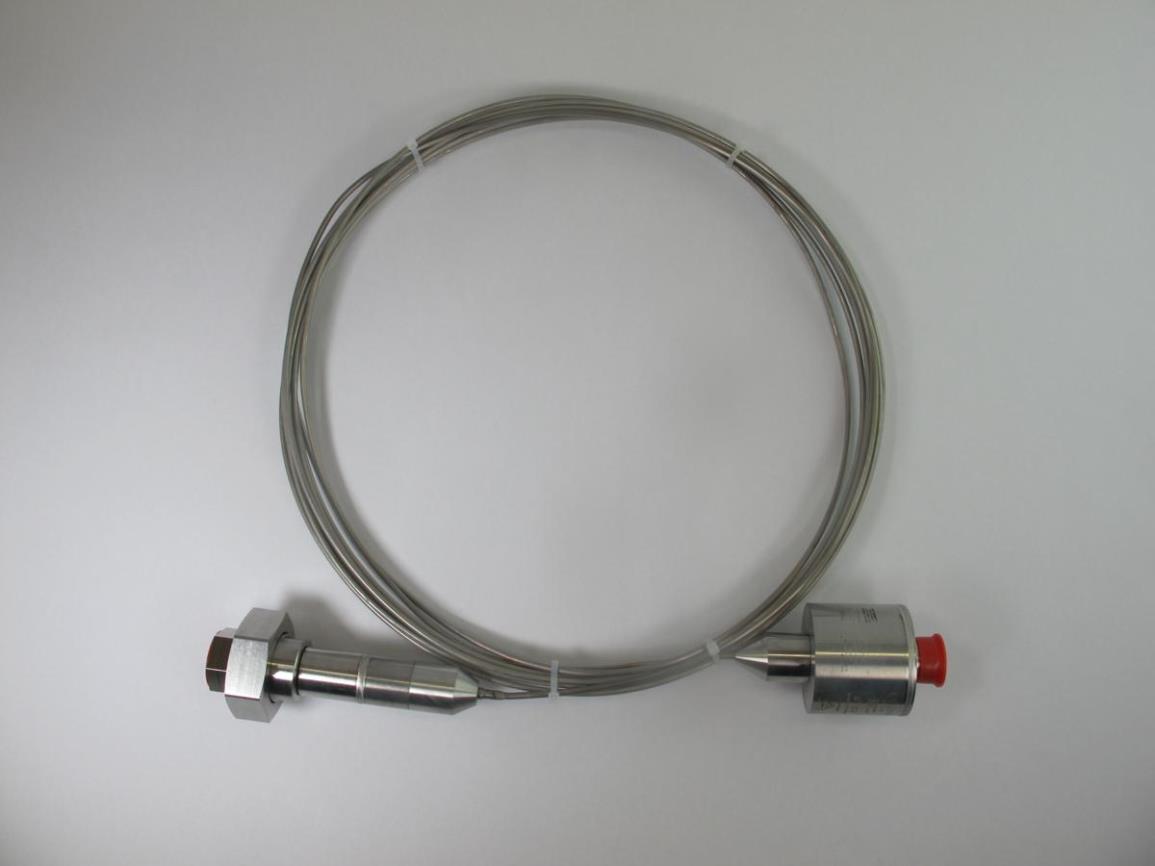

RS-FS9009-03 (also known as RS-FS-9009-03, FTD 325, part number 124T5712P0001) is a dry-type UV flame detector manufactured by GE / Reuter-Stokes (Baker Hughes). It provides reliable, high-speed flame monitoring for industrial combustion systems, used in power, oil & gas, and petrochemical plants.

Product Overview

Key Features

• UV Spectrum Detection: 185–265 nm solar-blind UV, SiC solid-state sensor.
• Fast Response: <1 second for flame on/off detection.
• High Temperature Tolerance: Up to 325°C (617°F); no cooling required.
• Dual Output: 4–20 mA analog + relay contacts for alarm/shutdown.
• Adaptive Sensitivity: Compensates for lens contamination and aging.
• Harsh Environment Rated: IP66 enclosure; Class I Div 2 / ATEX Zone 2 approved.
• Compact & Rugged: Stainless steel body for long-term reliability.

Technical Specifications

Applications

• Power Plants: Boiler, gas turbine, and HRSG flame monitoring.
• Oil & Gas: Refinery heaters, furnaces, and process burners.
• Petrochemicals: Reactor and incinerator flame safety.
• Industrial Furnaces: Steel, cement, and thermal processing systems.

Why Choose RS-FS9009-03

• Proven Reliability: Field-proven in thousands of industrial sites globally.
• No Cooling Needed: Saves installation and maintenance costs.
• False Alarm Immunity: Rejects visible light and thermal radiation interference.
• Easy Integration: Standard 4–20 mA and relay outputs connect to most DCS/PLC systems.
• Long Lifespan: Industrial-grade materials for extreme conditions.
