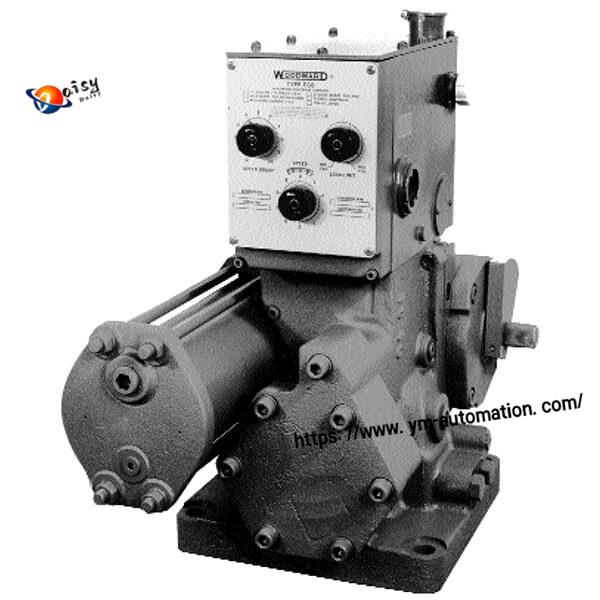

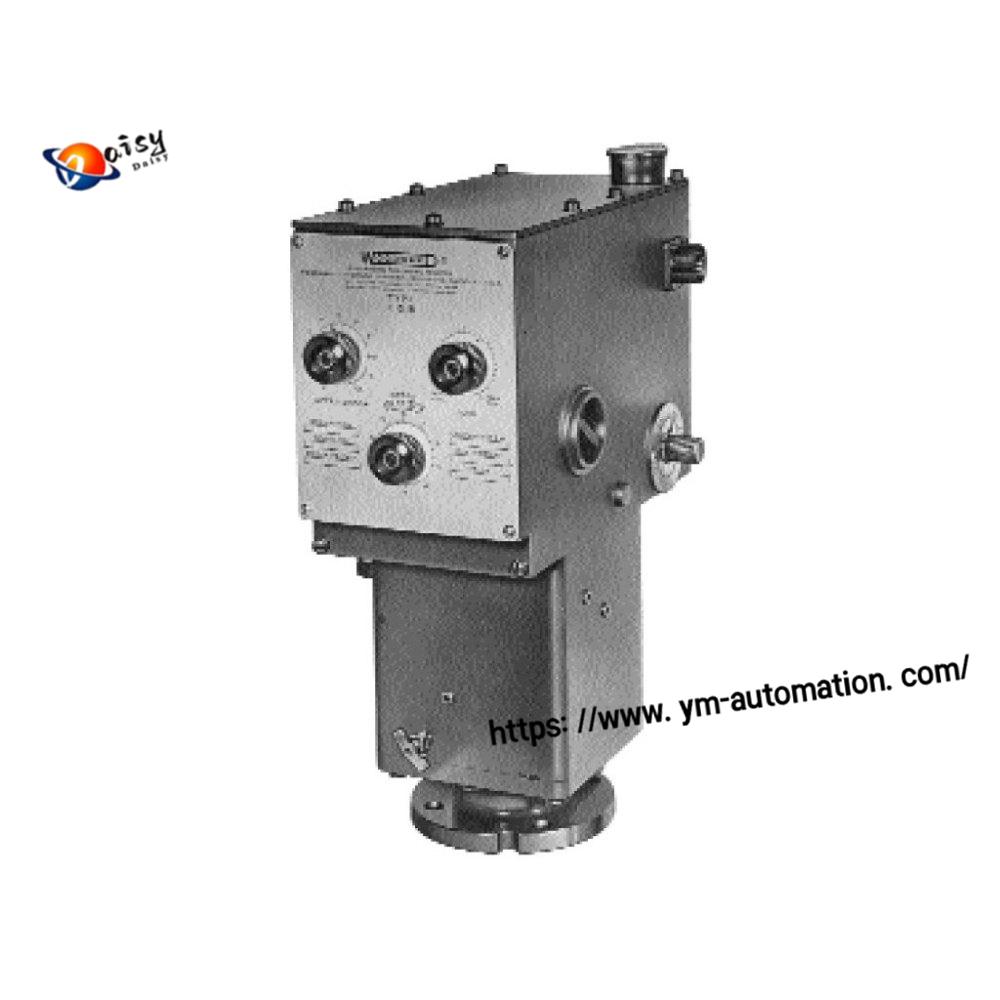

Woodward EGB-13P 8240-381 Actuator

Brand：

Product ID：

Place of Origin：

Warranty： 365 days

Goods status： new/used

Mail： 3127402866@qq.com

Phone/Wechat/Whatsapp：+86 13368533614

Phone：+86 13368533614

Product Details

Overview

The Woodward EGB-13P (8240-381) is a proportional electro‑hydraulic governor actuator designed and manufactured by Woodward. It delivers precise speed and load control for diesel, gas, dual‑fuel engines, and steam/gas turbines. The EGB-13P 8240-381 converts 20–160 mA control signals into accurate fuel rack positioning, ensuring stable engine performance under varying loads. With a 13 ft‑lb (17.6 N·m) work capacity and mechanical backup, the Woodward EGB-13P 8240-381 guarantees reliability even if electronic signals fail.

Key Features

13 ft‑lb (17.6 N·m) Output: High torque for accurate fuel valve/rack positioning。

Proportional Control: Responds to 20–160 mA DC signals for precise speed regulation。

Mechanical Backup: Built‑in ballhead governor ensures safe operation during signal loss。

Self‑Contained Hydraulics: Integrated oil supply simplifies installation and maintenance。

Robust Build: Cast iron housing and aluminum column for durability in harsh environments。

Fast Response: <100 ms full‑stroke reaction for dynamic load changes。

Wide Compatibility: Works with Woodward 2301A, 723PLUS, DSLC controls。

Technical Specifications (EGB-13P 8240-381)

Model: EGB-13P (Part No. 8240-381)

Type: Proportional Electro‑Hydraulic Governor Actuator

Work Capacity: 13 ft‑lb (17.6 N·m / 18 J)

Control Signal: 20–160 mA DC (proportional)

Stroke: Adjustable to match fuel rack requirements

Response Time: <100 milliseconds (full stroke)

Operating Temp: −40°C to +71°C (−40°F to +160°F)

Mounting: Vertical SAE flange

Weight: 45–52 kg (100–115 lb)

Solenoid: 24 VDC shutdown solenoid

Certifications: CE, ATEX, UL (industrial/marine)

Applications

Power Generation: Generator sets, combined‑cycle plants, CHP systems。

Oil & Gas: Turbine compressors, pumping stations, refinery engines。

Marine: Propulsion engines, auxiliary power units, shipboard turbines。

Industrial: Diesel/gas engines, process pumps, industrial turbines。

Advantages

The Woodward EGB-13P 8240-381 is a field‑proven, high‑reliability actuator with decades of service in critical applications. It offers excellent positioning accuracy, mechanical fail‑safe protection, and easy integration with Woodward control systems. The EGB-13P 8240-381 ensures stable speed control, long service life, and low maintenance for industrial, marine, and power generation operations。
