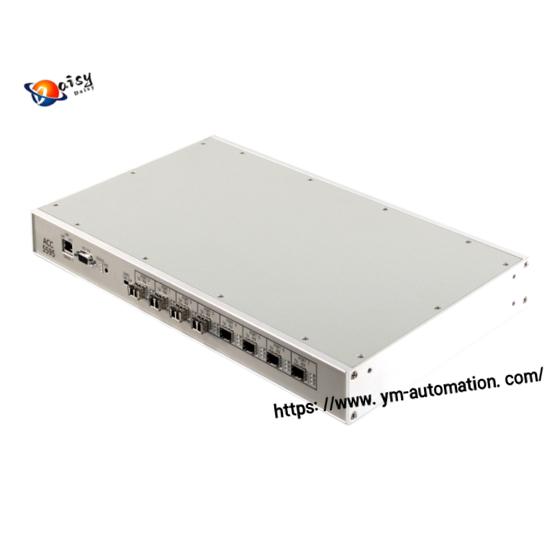

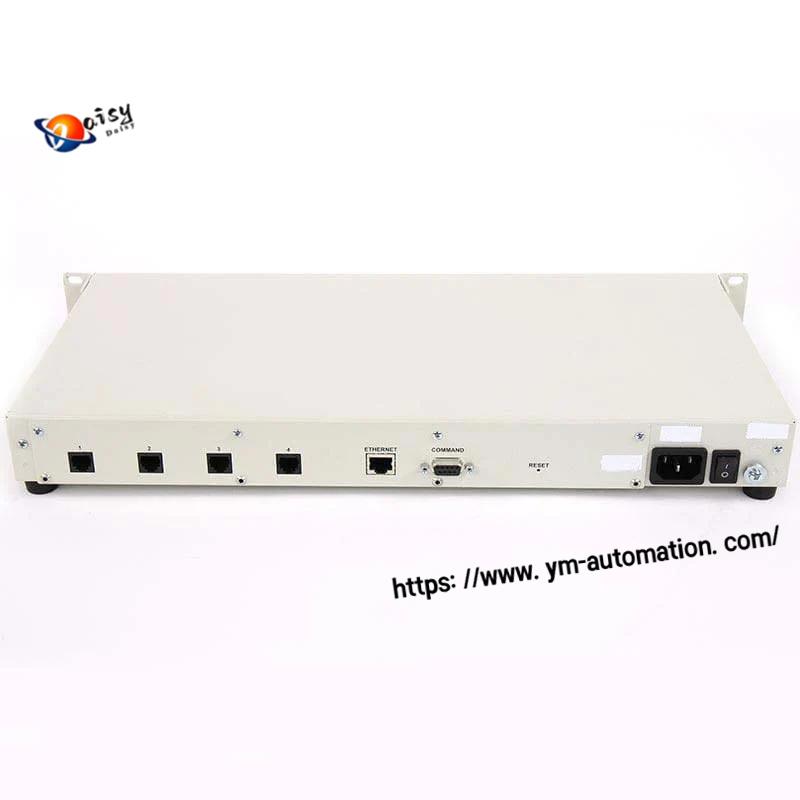

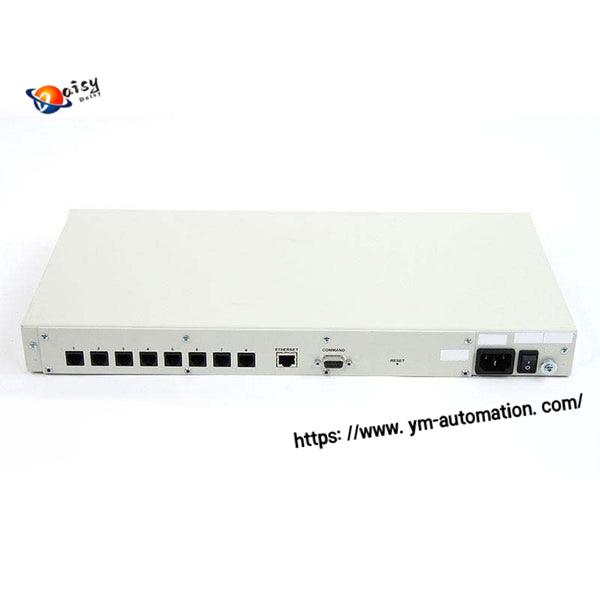

GE VMIACC-5595-208 Reflective Memory Hub Assembly

GE VMIACC-5595-208 is an industrial-grade reflective memory hub designed for real-time, high-speed fiber-optic communication in automation, aerospace, and distributed control systems. As a core component of GE’s reflective memory network, it delivers deterministic data transmission, seamless scalability, and robust reliability for mission-critical applications.

Key Features

8 SFP Fiber Ports: Supports multimode (300–550m) and single-mode (up to 10km) transceivers for flexible network design.

2 Gb/s High-Speed Transfer: 2.125 Gbaud serial rate, up to 174 MB/s throughput; nanosecond-level node-to-node latency (≤750ns).

Auto Bypass Function: Automatically bypasses failed/disconnected nodes in <50ms, ensuring network uptime and data integrity.

Massive Scalability: Cascades up to 256 nodes in star or ring topologies for large-scale industrial networks.

Industrial Hardened Design: IP40-rated, operates reliably in -40°C to +85°C environments.

Remote Management: Equipped with Ethernet (10BaseT) and RS232 ports for easy configuration, monitoring, and control.

Technical Specifications

Parameter	Details
Model	VMIACC-5595-208 (350-805595-208L)
Brand	GE (General Electric)
Port Configuration	8x SFP transceiver ports (multimode/single-mode compatible)
Data Rate	2 Gb/s (2.125 Gbaud), max 174 MB/s throughput
Transmission Distance	Multimode: 300–550m; Single-mode: up to 10km
Network Topology	Star, ring, or cascaded (up to 256 nodes)
Latency	≤750ns (node-to-node read/write)
Power Supply	100–240 VAC universal input
Operating Temperature	-40°C to +85°C
Dimensions	425mm (W) × 254mm (D) × 44mm (H) (1U rack-mount)
Weight	3.2 kg
Memory	Onboard 128MB/256MB SDRAM with parity checking
Compatibility	Works with GE 5565 series reflective memory cards (PCI-5565PIORC); supports Windows, Linux, VxWorks

[caption id="attachment_36910" align="alignnone" width="560"] GE VMIACC-5595 Series installation guide
https://www.manualslib.com/manual/1958554/Ge-Vmiacc-5595-Series.html[/caption]

Applications

Industrial automation and DCS systems

Aerospace and defense real-time data networks

High-speed distributed control and simulation systems

Power generation (e.g., Speedtronic Mark V)

Large-scale manufacturing and process control
