Rexroth VT-VPCD-1-1X/V0/1-0-1 Control Card

Brand：Rexroth

Product ID：VT-VPCD-1-1X/V0/1-0-1

Place of Origin：Germany

Warranty： 365 days

Goods status： new/used

Mail： 3127402866@qq.com

Phone/Wechat/Whatsapp：+86 13368533614

Phone：+86 13368533614

Product Details

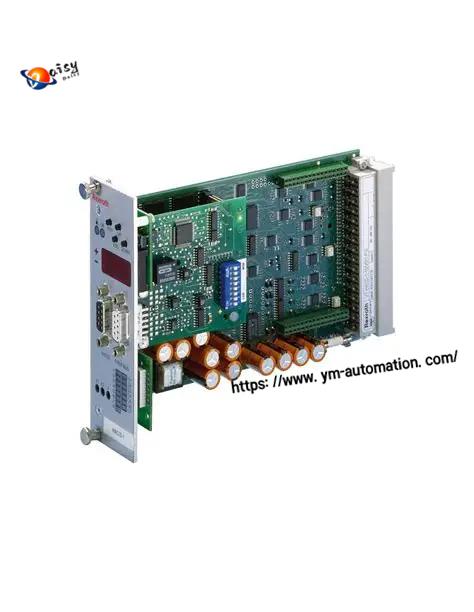

Bosch Rexroth VT-VPCD-1-1X/V0/1-0-1 – Digital Pump Controller Amplifier Card

Bosch Rexroth VT-VPCD-1-1X/V0/1-0-1 is a digital closed-loop control amplifier designed for A4VS axial piston pumps with HS4 control and A2V pumps with EO4 control. It delivers electrohydraulic pressure and swivel angle control, plus power limitation for variable displacement pumps in industrial hydraulic systems.

Key Features

Dual Control Loops: Closed-loop control for pressure and swivel angle (HS4/EO4 pumps).
Digital Precision: 2 ms scan rate, PWM current-regulated output stage for proportional valves.
Integrated Diagnostics: Status LEDs, collective fault output, and RS232 (DB9) for BODAC configuration.
Flexible Setup: Digital inputs for preset parameters; ramp time adjustment for pressure/angle signals.
Industrial Durability: Euro-card format (100×160 mm), 24 VDC supply, and -10%/+40% voltage tolerance.

Technical Specifications

Parameter	Details
Model	VT-VPCD-1-1X/V0/1-0-1
Brand	Bosch Rexroth (Indramat)
Function	Digital controller for A4VS (HS4) / A2V (EO4) pumps
Control Modes	Pressure control, swivel angle control, power limiting
Supply Voltage	24 VDC (19.2–33.6 VDC range)
Current Consumption	3.5 A max
Output Stage	Clocked, current-regulated (PWM), solenoid resistance 2 Ω @20°C
Communication	RS232 (9-pin D-sub), BODAC PC software compatible
Scan Rate	2 ms
Operating Temp	0°C to +50°C
Dimensions	100 mm (W) × 160 mm (L) × 20 mm (D)
Weight	0.2 kg
Protection	Overcurrent, short-circuit, fault monitoring
Mounting	Euro-card slot (standard industrial rack)

Applications

Hydraulic Presses: Precision pressure/flow control for metal forming.
Plastic Injection Molding: A4VS pump control for high-pressure injection.
Marine & Offshore: Winch, crane, and propulsion hydraulic systems.
Construction Machinery: Excavator, loader, and crane pump control.
Process Industry: Steel, paper, and chemical hydraulic power units (HPUs).

Why Choose VT-VPCD-1-1X/V0/1-0-1

The Rexroth VT-VPCD-1-1X/V0/1-0-1 ensures stable, efficient hydraulic pump control with high accuracy and reliability. Its digital closed-loop design reduces energy waste, while BODAC software enables easy parameterization and diagnostics—ideal for critical industrial hydraulic applications.
