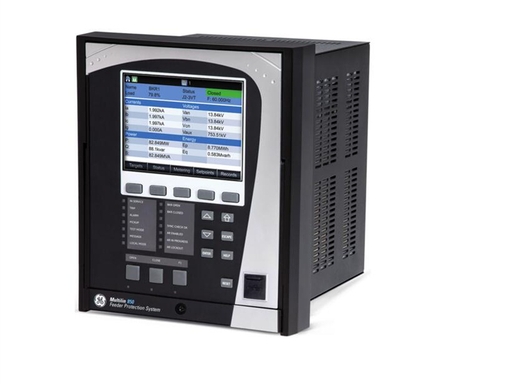

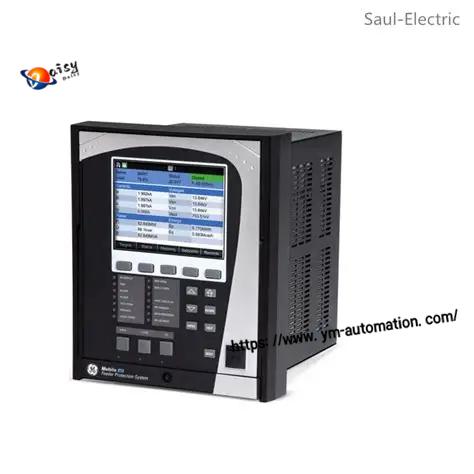

GE F650BFGF1G1HIE (F650-B-F-G-F-1-G-1-HI-E) is a
Multilin™ F650 series digital feeder protection and bay controller for power distribution systems. It integrates high‑speed protection, extensive control, and advanced communication for feeders, transformers, and motor applications in utility,
Key Features
- Comprehensive Protection: Phase/ground overcurrent (50/51, 50G/51G), directional overcurrent (67), negative sequence (46), thermal overload (49), under/over voltage (27/59), under/over frequency (81), four‑shot autorecloser (79), breaker failure protection.
- High‑Speed Performance: <50 ms trip at 3× pickup; 1 ms event time stamping; 20 oscillography records, fault locator, 10 fault logs.
- Flexible I/O: 32 programmable digital inputs, 16 relay outputs; trip/close circuit supervision; modular draw‑out design.
- Advanced Communication: 10/100 Base‑TX Ethernet; Modbus RTU/TCP, DNP3.0, IEC 60870‑5‑104, IEC 61850 Ed.2; PRP/HSR redundancy; IEEE 1588 PTP, IRIG‑B, SNTP time sync.
- User‑Friendly HMI: Backlit graphical LCD, front USB, multi‑language (EN/FR/ES/ZH), single‑line diagram visualization.
- Industrial Durability: Wide temperature range, heavy‑duty construction, compliance with IEC/ANSI standards.
Specifications
- Part Number: F650BFGF1G1HIE (F650‑B‑F‑G‑F‑1‑G‑1‑HI‑E)
- Manufacturer: GE Grid Solutions (Multilin™)
- Protection Functions: 50/51, 50G/51G, 67, 46, 49, 27/59, 81, 79, breaker failure
- I/O: 32DI / 16DO, modular slots F+G
- Communication: Ethernet, Modbus, DNP3, IEC 61850, PRP/HSR
- Data Recording: 479 events (1 ms), 20 oscillography, fault locator
- Operating Temp: -20°C to +70°C (-4°F to 158°F)
- Certifications: IEC 61850, IEEE 1588, CE, UL, CSA
Applications
- Power Utilities: Distribution feeder protection, bay control, recloser coordination
- Industrial Plants: Motor/transformer protection, backup line protection, load shedding
- Renewable Energy: Wind/solar farm grid interconnection, collector line protection
- Oil & Gas: Process power distribution, critical asset protection
Why Choose GE F650BFGF1G1HIE
- Proven Reliability: Multilin F650 field‑proven in 10,000+ installations globally
- Seamless Integration: Standard protocols, IEC 61850, and flexible I/O reduce engineering time
- Reduced Downtime: Fast fault clearing, detailed diagnostics, and modular design simplify maintenance
- Global Support: GE 24/7 technical support, worldwide service, and genuine spare parts
Ordering Information
- Part Number: F650BFGF1G1HIE
- Condition: New, original packaging
- Warranty: 12 months
- Shipping: Worldwide, fast delivery
Keywords: GE F650BFGF1G1HIE, F650 Multilin, GE feeder protection, digital bay controller, IEC 61850 relay, GE power distribution relay
