Overview

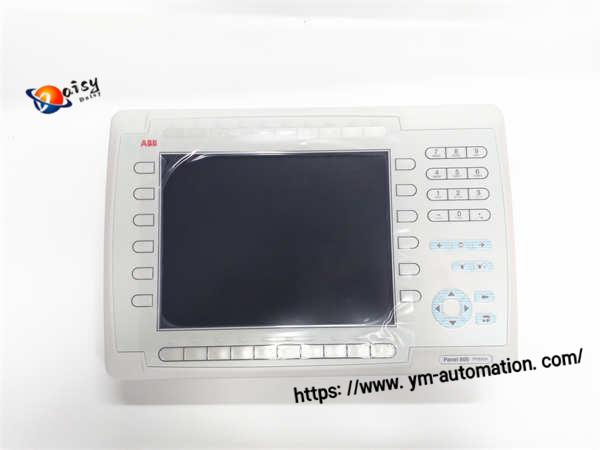

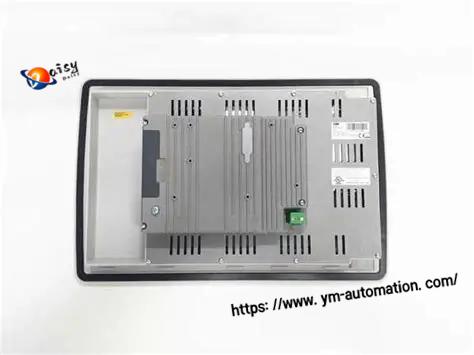

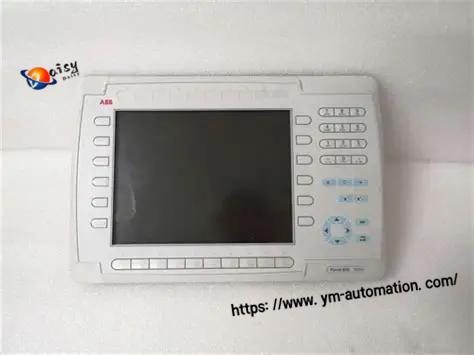

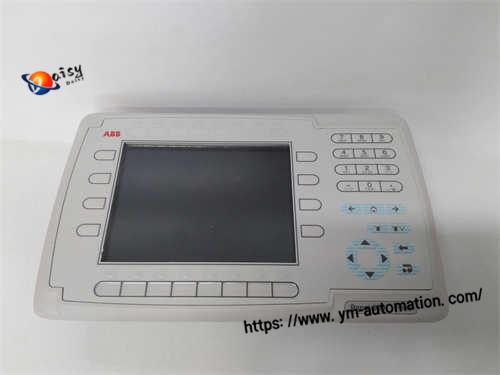

The ABB PP846 3BSE042238R1 is a compact, rugged 10.4-inch key process panel (HMI) from ABB’s Panel 800 series, engineered
for real-time monitoring and control in industrial automation. It integrates a resistive touchscreen, physical function keys, and
multi-protocol communication, ideal for ABB 800xA DCS and AC 800M controller environments.

Key Features

Display: 10.4” TFT, 640×480 (VGA), 256 colors, 200 cd/m² brightness, 200:1 contrast.

Touchscreen: 3H hardness resistive touch, reliable for heavy industrial use.

Processor: 266 MHz ARM9; 32 MB RAM / 32 MB Flash.

Communication: Ethernet (RJ45), RS-232 (9-pin), RS-485 (25-pin); supports Modbus RTU/TCP, ABB CS31/Advant/Master.

Environmental: Front IP66, rear IP20; operating 0°C to 50°C, storage -20°C to 60°C; 5–95% RH (non-condensing).

Power: 24VDC, 18W; panel mount, compact 290×226×59 mm, weight 1.6 kg.

Certifications: UL, CE; designed for 800xA, AC 800M, Compact Product Suite.

Specifications

Applications

Process industries: Oil & gas, power, chemical, water treatment.

Manufacturing: Automotive, pharmaceuticals, food & beverage.

ABB systems: 800xA DCS, AC 800M, Compact Product Suite.
