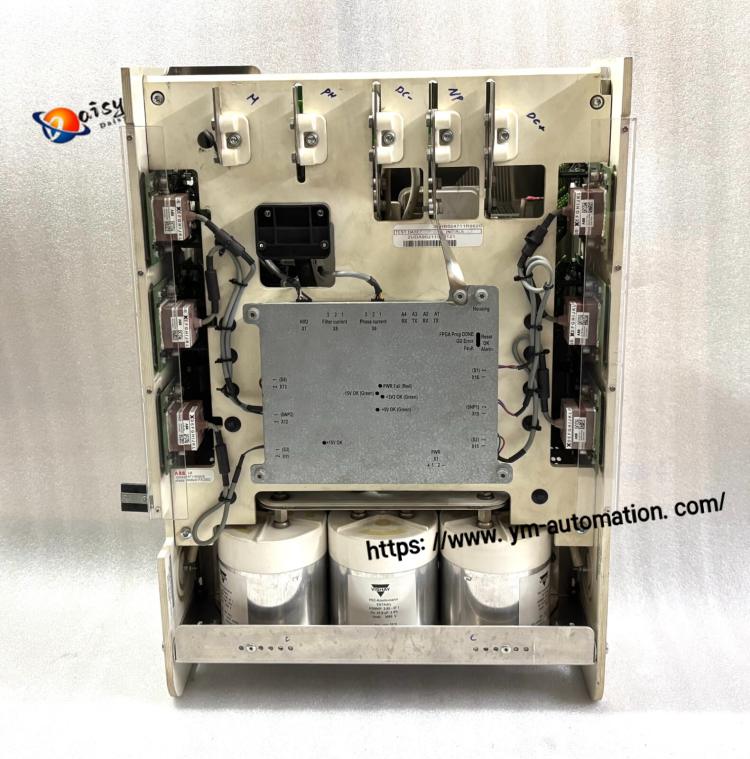

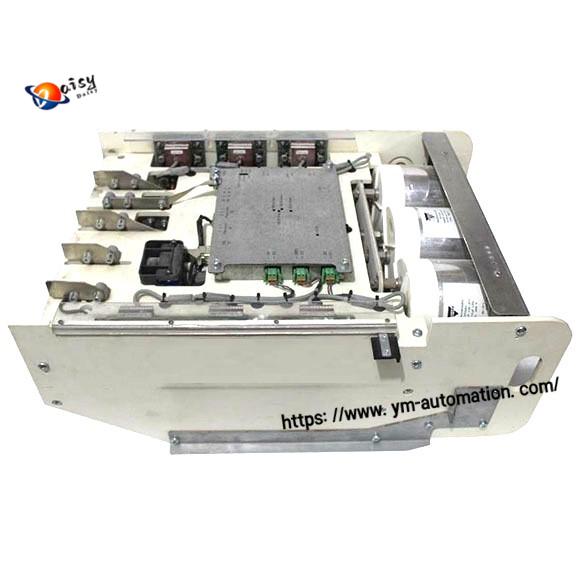

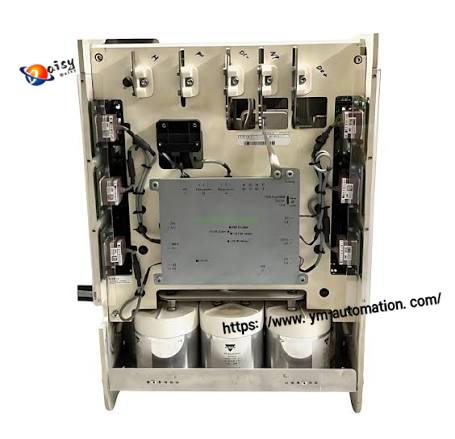

ABB 3BHB024711R0020 Phase Module

ABB 3BHB024711R0020 Phase Module PBA E10 A01 6k100 For ACS2000 Medium Voltage Drives

H2: Core Official Technical Specification

H2: Key Product Features

All-in-one drawer integrated design, easy plug-and-play replacement without complex wiring disassembly

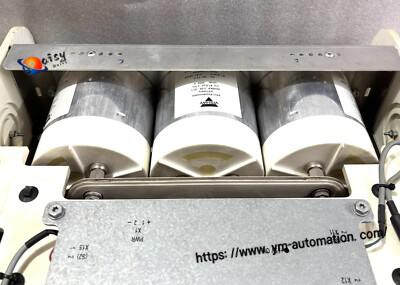

3×47UF high ripple withstand capacitors, stable DC link voltage, reduce grid harmonic interference

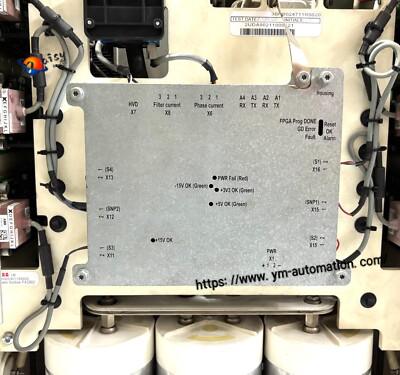

Integrated overcurrent, overvoltage and temperature hardware protection to avoid secondary damage to drive mainboard

Original ABB metal shielding housing, strong anti-electromagnetic interference performance for noisy power plant environments

Pre-calibrated phase balance circuit, consistent with original factory drive control logic, no parameter modification after replacement

Compact drawer structure saves cabinet space, supports rapid on-site maintenance and equipment downtime reduction

H2: Typical Industrial Application Scenarios

ABB ACS2000 6kV medium voltage inverter drive systems

Thermal power plant boiler induced draft fan, forced draft fan high-voltage motor control

Mining industry large water pump, compressor medium voltage variable speed equipment

Cement plant kiln, raw material mill high power MV drive maintenance

Oil & gas pipeline heavy-duty compressor variable frequency control cabinets

H2: Product Supply & Condition Information

Production Status: Mass production discontinued by ABB; only surplus original sealed stock and fully tested refurbished units available

Stock Types: Brand new surplus unopened, 100% tested refurbished phase modules

Compatible Replacement: Direct interchange with original 3BHB024711R0020; no model modification required

Matching Accessories: Installation guide, interconnection cable, mounting screws, test report

Warranty Policy: 12-month warranty for refurbished units, 24-month warranty for unused surplus original stock
