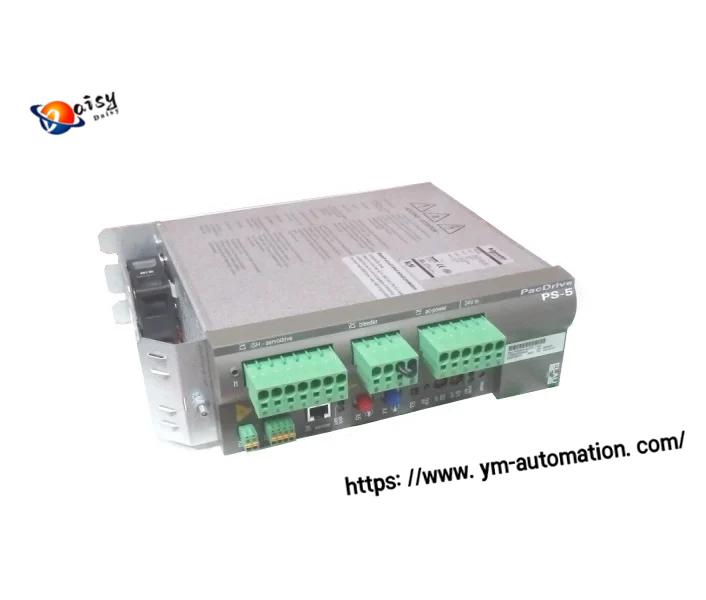

Schneider PS-5/10/20/400/00 is a discontinued original ELAU PacDrive dedicated servo power supply module designed for iSH series servo motor drive systems used in packaging, robotics and machine tool automation. This industrial PSU supports single/three-phase AC main input plus auxiliary 24VDC control power, delivering stable 680VDC DC bus and regulated 24VDC signal output. We supply tested surplus, refurbished and unused stock of PS-5/10/20/400/00 with global fast shipping, ideal for legacy machine maintenance replacement.
Core Product Basic Info
- Full Model: PS-5/10/20/400/00
- Brand: Schneider Electric (ELAU Division)
- Product Type: PacDrive Servo Power Supply Unit
- Production Status: Officially Discontinued
- Origin: Germany
- Tariff Code: 8537101190
- Warranty: 12 months for all units
- Availability: Refurbished tested / unused surplus in stock
- Shipment: Worldwide delivery, 4–7 working days lead time
Key Electrical Specifications
- Main AC Input: 1/3 Phase 220–480VAC, 48–62Hz, 10A/20A rated
- Auxiliary DC Input: 24VDC, 13A for control circuit power
- DC Bus Output 1: Max 680VDC, 10A/20A continuous
- Control Output 2: Regulated 24VDC, 12A for I/O & sensors
- Isolation Rating: 1500Vrms 1min between power bus & signal circuits
- Conversion Efficiency: ≥85% under full load
- Built-in Protections: Overload, short circuit, overvoltage, overheat, bus fault alarm
- Fault Feedback: LED diagnostic indicators for power failure & load error
Mechanical Parameters
- Overall Dimension: 150 × 240 × 350 mm
- Net Weight: 2.9kg
- Mounting: Standard cabinet DIN rail fixed installation
- Cooling: Natural convection heat dissipation
- Compliance Mark: CE certified industrial safety standard
Main Product Features
- Dual independent power input design separates power drive and control circuits
- Stable high-voltage DC bus supply for multi-axis PacDrive iSH servo drives
- Real-time fault diagnostic LED for fast on-site troubleshooting
- High voltage isolation design improves anti-interference in harsh factory environment
- Compact cabinet layout saves control panel installation space
- Full compatibility with original PacDrive servo controller series
- Plug-and-play replacement for old PS-5 power modules without wiring modification
Industrial Application Scenarios
- High-speed packaging machinery (cartoning, filling, wrapping lines)
- Multi-axis robotic handling & palletizing equipment
- Precision CNC machine tool servo control systems
- Food & beverage automated production lines
- Pharmaceutical packaging automation equipment
- Legacy ELAU PacDrive system maintenance & spare replacement
Compatible Matching Parts
- iSH series servo motors & servo drives
- PacDrive DB-5 power distribution box
- Original ELAU servo encoder cables & power harnesses
- Schneider PacDrive motion controller modules
Discontinued Replacement Guidance
Original Schneider PS-5/10/20/400/00 production stopped, two reliable replacement solutions:
- Direct Swap Solution: Tested refurbished PS-5/10/20/400/00 stock, no program reconfiguration, direct installation
- New Upgrade Solution: Schneider Lexium 62 series modern servo power supply, requires minor cabinet wiring reconstruction for new machine transformation
FAQ Section
Q1: Is Schneider PS-5/10/20/400/00 still in production?
A1: This ELAU PacDrive power supply model is fully discontinued by Schneider factory; new original factory stock is no longer available. We only provide tested surplus and refurbished certified units.
Q2: What servo systems does PS-5/10/20/400/00 match?
A2: It exclusively supports Schneider ELAU PacDrive platform iSH servo motor and multi-axis drive systems for packaging automation equipment.
Q3: Does the refurbished PS-5/10/20/400/00 come with quality test report?
A3: All refurbished power modules pass full electrical aging test, insulation test and load test with official test documents attached before shipment.
Q4: Can PS-5/10/20/400/00 be shipped globally?
A4: Yes, we offer DHL, FedEx and sea freight worldwide delivery with complete export customs documentation.
If you need Schneider ELAU PS-5/10/20/400/00 servo power supply spare parts for legacy equipment repair, send inquiry for real-time stock, unit test reports and bulk discount pricing. Our professional automation spare parts team provides one-stop discontinued industrial module replacement service.
