1. Product Overview

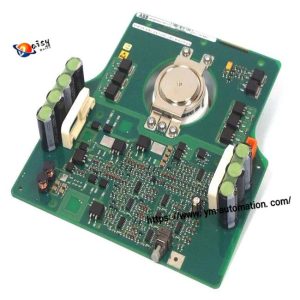

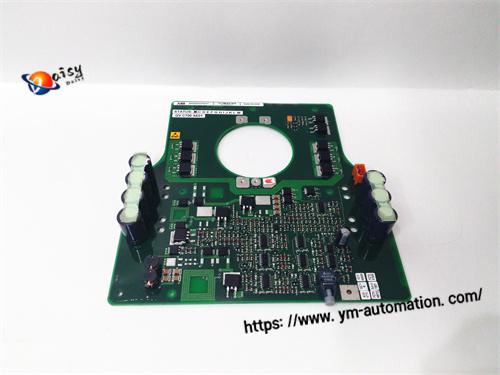

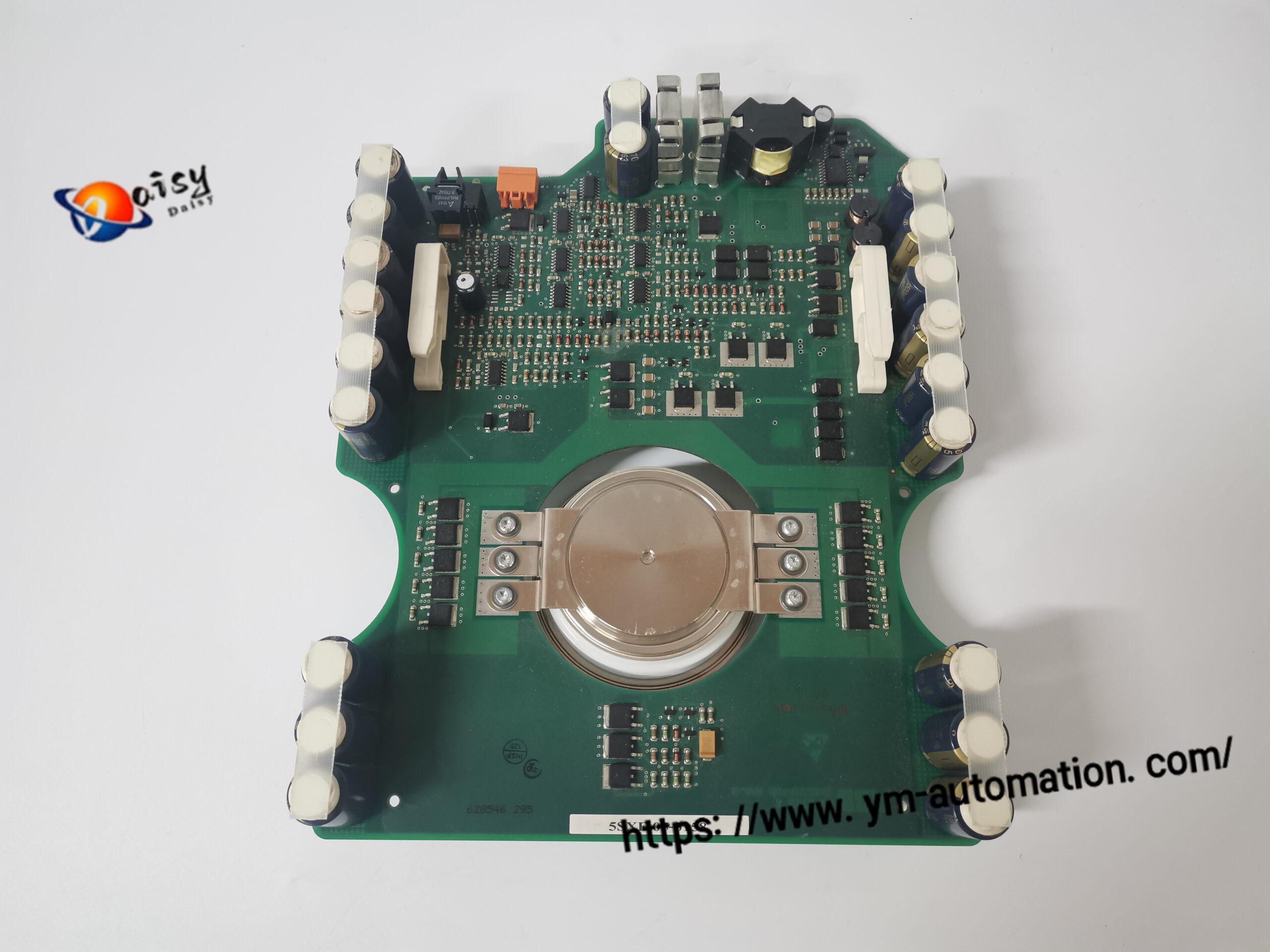

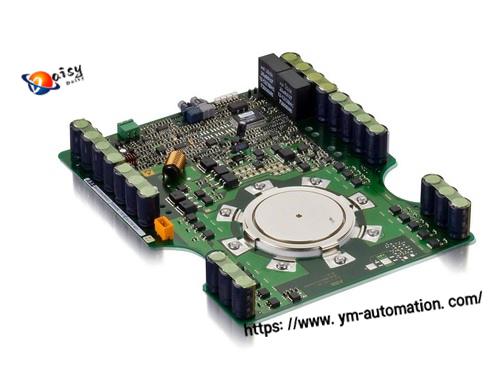

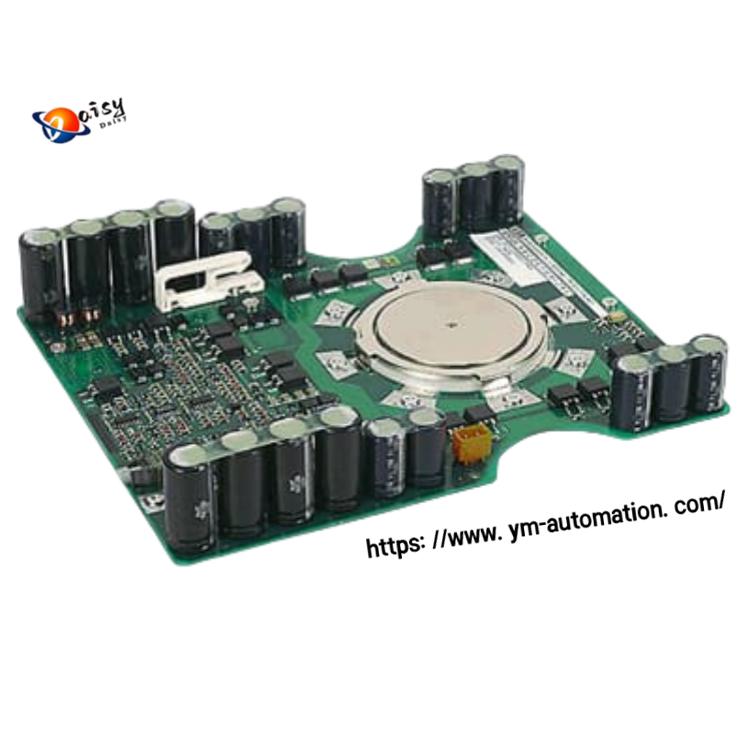

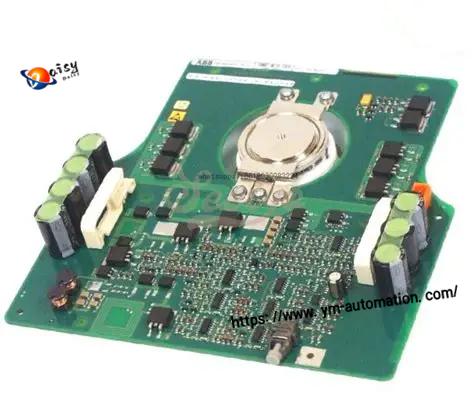

ABB 3BHL000382P0101 is an original IGCT drive control board developed by ABB for medium & high voltage frequency
converters and industrial DCS power conversion systems. The ABB 3BHL000382P0101 serves as the core signal drive unit
to send precise trigger signals to IGCT power chips, monitor real-time power device temperature, voltage and fault feedback
signals. Built with fiber optic communication interface, the ABB 3BHL000382P0101 effectively isolates high-voltage strong current
 and low-voltage control circuits to avoid electromagnetic interference. The ABB 3BHL000382P0101 is widely used in power plant
frequency converters, metallurgical rolling mill drives, oil & gas pipeline variable speed control and large energy storage converter
cabinets, acting as a critical replaceable ABB spare part for long-term industrial equipment maintenance.

2. Full Technical Specifications of ABB 3BHL000382P0101

Brand: ABB

Model: 3BHL000382P0101

Product Type: IGCT Drive Control Board / Power Electronic Trigger Module

Origin: Sweden

Matching Power Device: ABB IGCT series chips (5SHX series)

Main Application: Medium & high voltage inverter, static frequency converter, industrial DCS power control cabinet

Control Signal Interface: Fiber optic transmission port, anti-high voltage crosstalk

Auxiliary Power Input: 24VDC standard industrial control power supply

Real-time Monitoring Functions: IGCT junction temperature detection, overvoltage, overcurrent, short-circuit fault feedback

Signal Isolation Grade: 3000VAC high-potential isolation between drive circuit and power loop

PCB Material: High-temperature flame retardant industrial FR4 circuit board

Operating Temperature: -25°C ~ +70°C

Storage Temperature: -40°C ~ +85°C

Environmental Humidity: 5% ~ 95% RH, non-condensing

Anti-interference Standard: Compliant with IEC 61000-6-2 industrial EMC standard

Mounting Method: Standard plug-in installation inside ABB converter cabinet backplane

Protection Circuit: On-board surge absorption, reverse connection prevention, overheat automatic lockout

Status Indicator: Multi-color LED for power, communication, IGCT normal operation and fault alarm

Net Weight: 0.2kg

Dimension: 162mm (L) × 95mm (W) × 32mm (H)

Compatibility: Matches ABB Symphony Plus, ABB 800xA DCS power conversion racks

Certification: CE, IEC industrial safety certification

3. Core Features of ABB 3BHL000382P0101

The ABB 3BHL000382P0101 adopts fiber optic trigger signal transmission design, completely blocking high voltage
loop interference to ensure stable IGCT switching action.

Multi-dimensional real-time fault monitoring function of the ABB 3BHL000382P0101 instantly captures overcurrent, overheating and
breakdown faults of power devices to protect the whole converter from damage.

Standard 24VDC auxiliary power design makes the ABB 3BHL000382P0101 compatible with most industrial DCS control cabinet power
systems without extra power adapters.

Compact plug-in structure of the ABB 3BHL000382P0101 supports hot-swap offline replacement, reducing equipment downtime
during maintenance.

High-strength anti-corrosion PCB and industrial-grade electronic components extend the service life of the ABB 3BHL000382P0101 in
 harsh workshop environments.

The ABB 3BHL000382P0101 has built-in multi-stage surge suppression circuit to resist instantaneous voltage impact from power grid fluctuation.

Full compatibility with matching ABB IGCT power modules; the ABB 3BHL000382P0101 can directly replace aging original drive boards without
program modification.

4. Main Application Scenarios for ABB 3BHL000382P0101

Thermal Power Plant Auxiliary Converter: The ABB 3BHL000382P0101 controls boiler fan, water pump high-voltage frequency conversion drive system.

Metallurgy Rolling Mill Automation: ABB 3BHL000382P0101 serves as IGCT trigger control unit for large rolling mill main drive inverters.

Oil & Gas Pipeline Compressor Control: High voltage variable speed converter cabinet core spare part ABB 3BHL000382P0101.

New Energy Energy Storage Converter: Wind power, solar energy storage power conversion system uses ABB 3BHL000382P0101 drive board.

Heavy Industry Mine Hoist DCS: Medium voltage frequency converter fault replacement module ABB 3BHL000382P0101.

Chemical Plant Continuous Production Line: Stable high-power variable speed drive control with ABB 3BHL000382P0101.

5. Our Supply Advantages for ABB 3BHL000382P0101

Sufficient Stock: Large inventory of original new and fully tested refurbished ABB 3BHL000382P0101 IGCT drive control board,
 fast 2–5 days global delivery.

Quality Assurance: Every ABB 3BHL000382P0101 undergoes fiber communication, power supply and full load fault simulation testing,
with 12-month after-sales warranty.

Free Supporting Files: Provide original ABB 3BHL000382P0101 datasheet, wiring diagram, installation guide and fault troubleshooting manual upon request.

Global Logistics Support: DHL, FedEx, air freight and sea door-to-door delivery for ABB 3BHL000382P0101 industrial spare parts to over 130 countries.

Bulk Wholesale Discount: Competitive unit price for bulk orders of ABB 3BHL series IGCT control boards and matching ABB converter spare parts.
