Product Overview

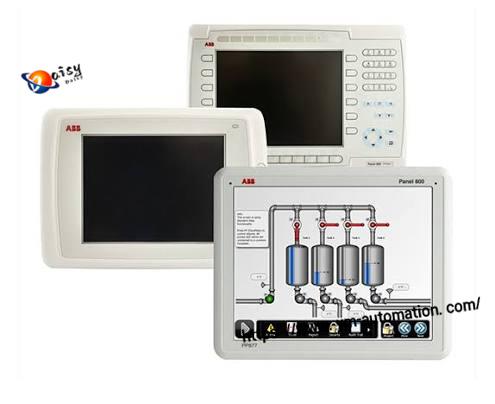

ABB PP875 3BSE092977R1 is a standard industrial operator panel belonging to ABB Panel 800 series HMI. The PP875 touch screen serves as human-machine interface for process monitoring, real-time data display and field equipment operation control. Widely matched with ABB AC 800M controller, 800xA DCS and third-party PLC systems, PP875 3BSE092977R1 supports multi-protocol communication and project development via ABB Panel Builder software. The fanless aluminum housing guarantees stable long-term operation under industrial workshop environments.
Technical Specifications
- Model: PP875
- Order No.: 3BSE092977R1
- Series: Panel 800 Standard Operator Panel
- Display: 7-inch TFT LCD with LED backlight
- Resolution: 800 × 480 pixels, 16:9 widescreen

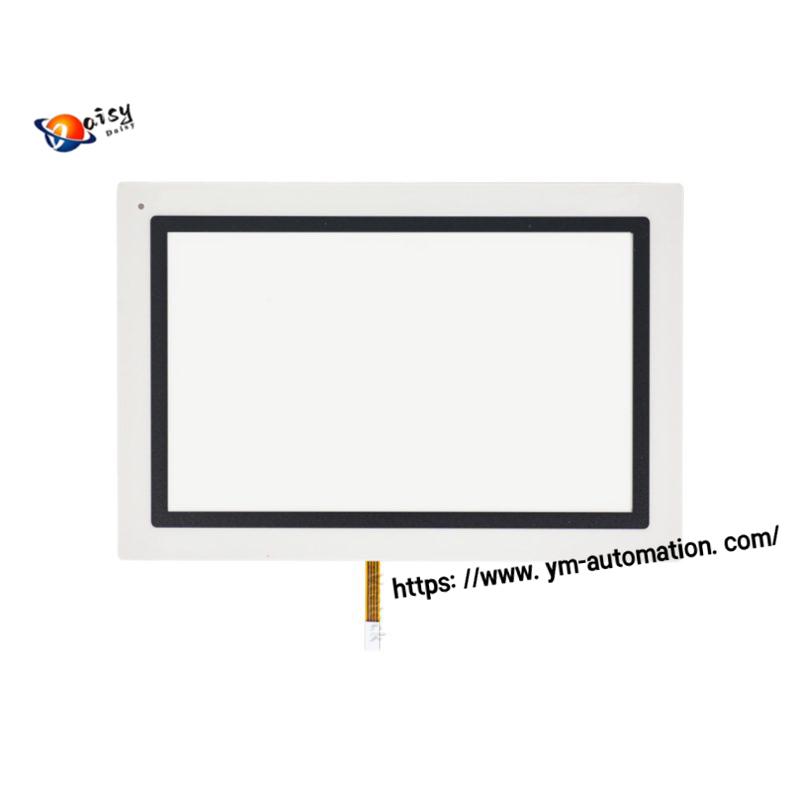

- Touch Screen: Resistive touch, glove touch supported
- CPU: 1 GHz ARM processor
- Memory: 512 MB RAM, 8 GB flash storage
- Operating System: Windows Embedded CE 6.0
- Power Supply: 24 VDC (18 VDC ~ 32 VDC), max power consumption 14.4 W

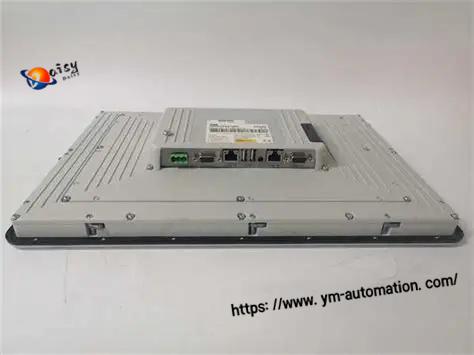

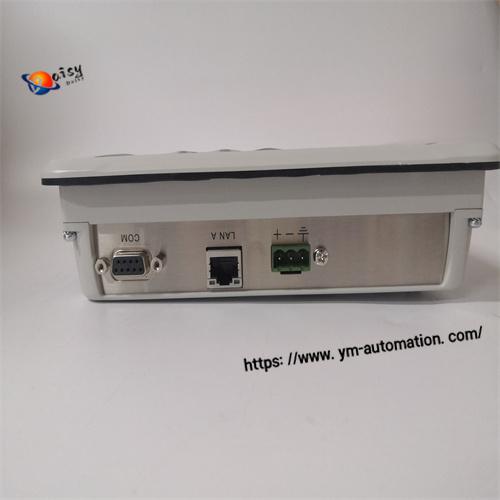

- Interfaces: 1×Ethernet, 1×USB 2.0 Host, RS232, RS422/RS485
- Protection Class: Front IP65 / NEMA 4X; Rear IP20
- Operating Temperature: -10 ℃ ~ +60 ℃
- Storage Temperature: -20 ℃ ~ +70 ℃
- Ambient Humidity: 5%–85% non-condensing
- Housing: Die-cast coated aluminum, fanless design
- Overall Size: 204 mm × 143 mm × 50 mm
- Panel Cut-out: 187 mm × 126 mm
- Installation: Flush panel mounting
- Certifications: CE, UL, FCC, KCC
Key Features
- High-definition TFT LED display provides clear graphical visualization for process parameters, alarm information and trend curves.
- Durable resistive touch panel ensures reliable operation under dust, vibration and humidity industrial conditions.
- Open communication architecture connects seamlessly with ABB DCS, PLC and multi-brand automation controllers.
- Fanless structure eliminates fan failure risk and lowers equipment maintenance frequency.

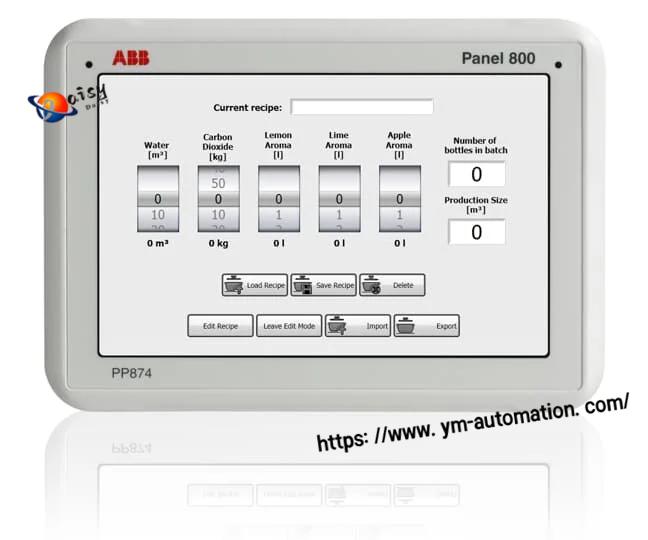

- Built-in complete HMI functions: alarm logging, data trending, recipe management, multi-language switching.
- Convenient program upload and download via Ethernet or USB interface; offline simulation supported in Panel Builder.
- Slim compact structure saves installation space inside control cabinets.
Application Range
ABB PP875 3BSE092977R1 operator panel is applied widely in power plant auxiliary control, chemical process industry, water treatment, machinery manufacturing and factory automation. As core HMI equipment, PP875 3BSE092977R1 realizes bidirectional interaction between operators and automation control systems.
Supply Information
We provide genuine ABB PP875 3BSE092977R1 industrial touch HMI. Contact us to confirm stock status, delivery lead time and export quotation for ABB Panel 800 series operator panels.
