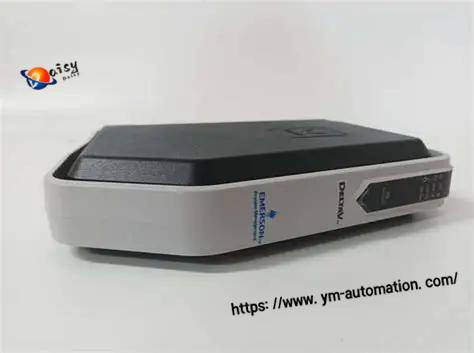

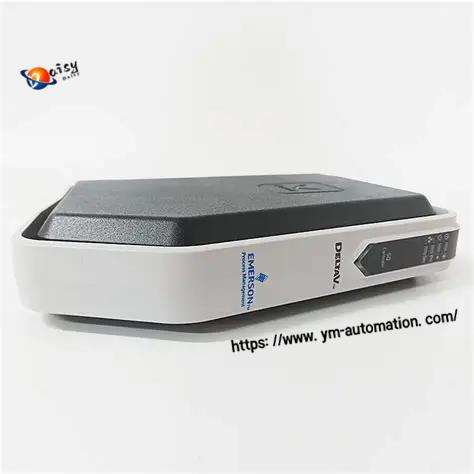

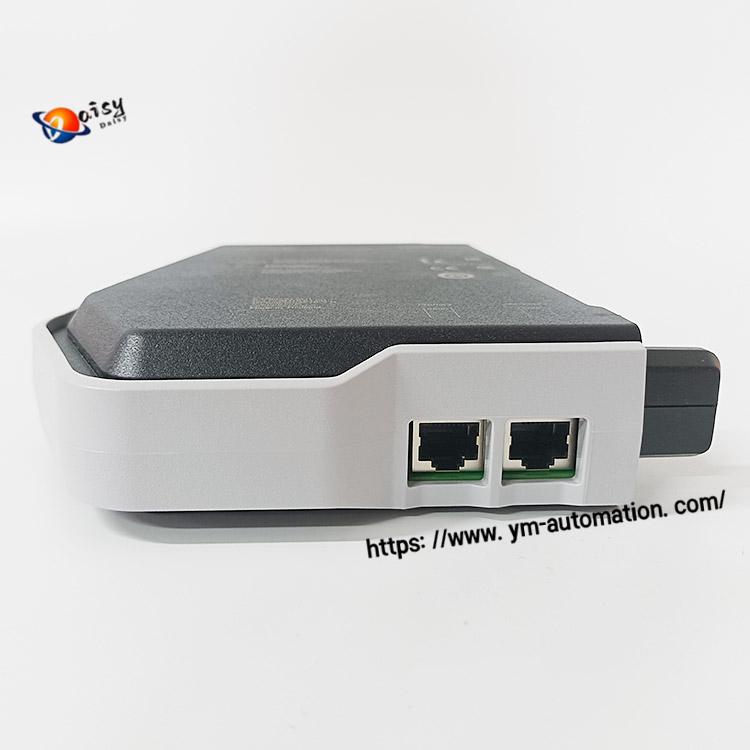

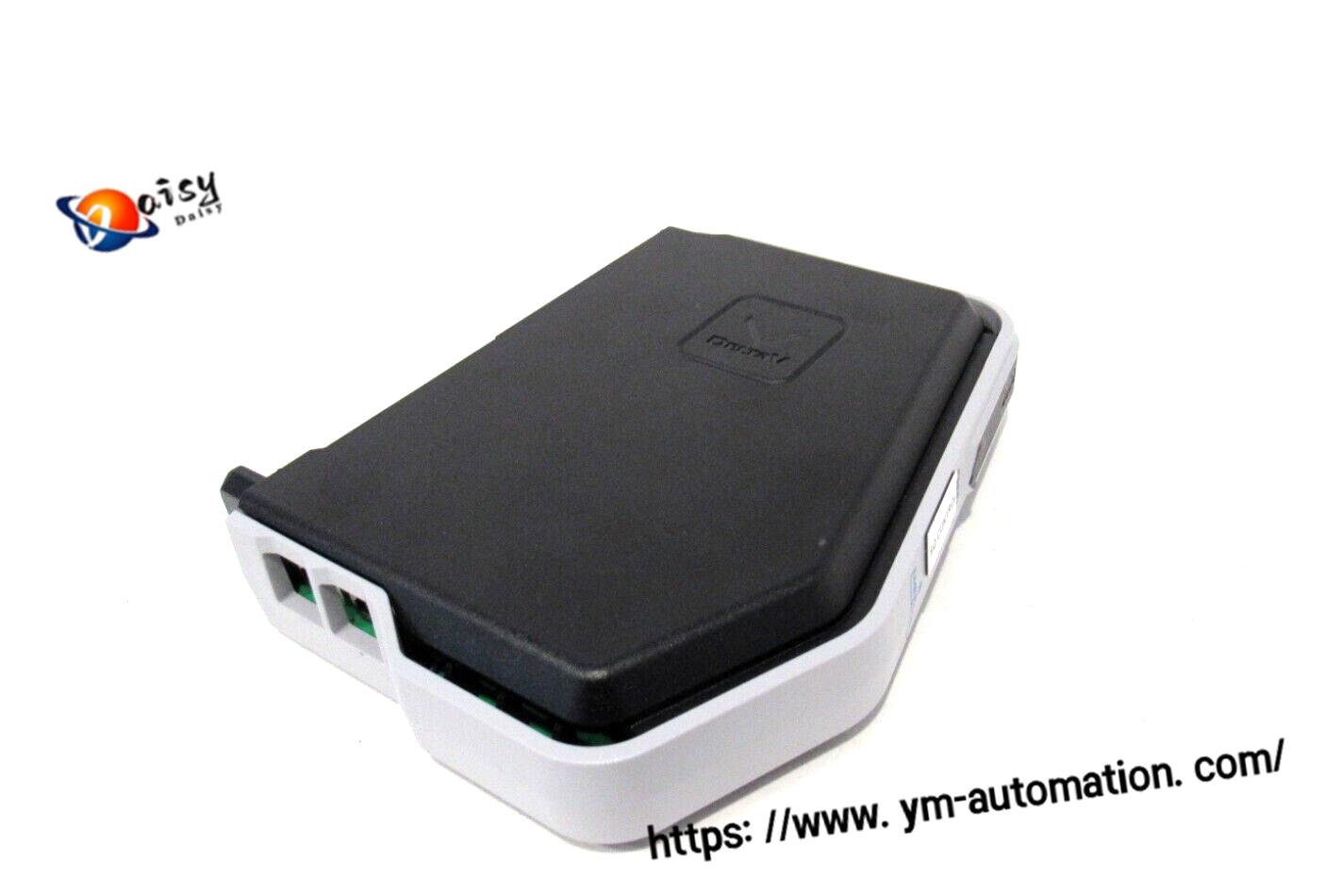

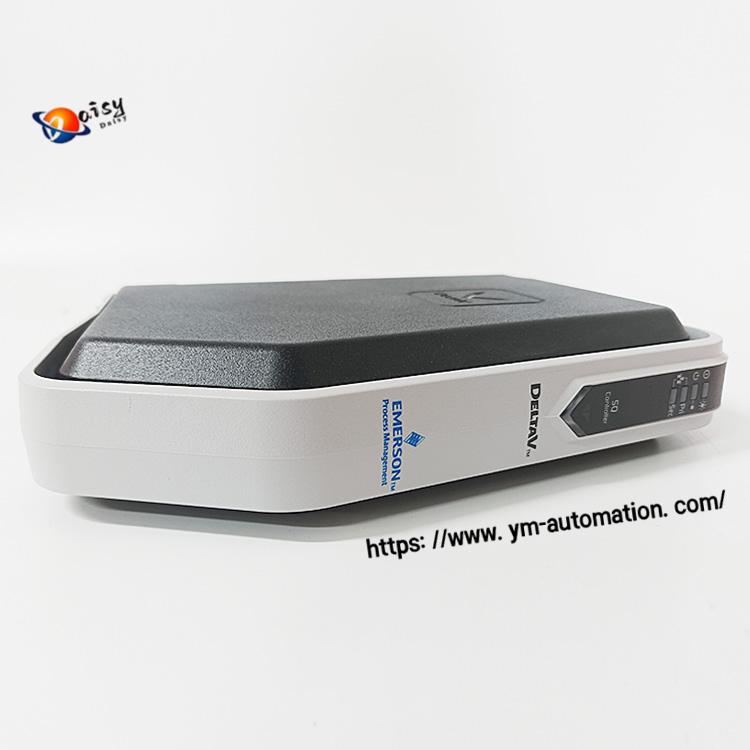

Emerson SE3008 KJ2005X1-SQ1 DeltaV SQ Controller

Product Overview

Key Features

Emerson SE3008 KJ2005X1-SQ1 DeltaV SQ Controller, alternate PN:12P6383X022

Executes continuous PID control, sequence logic and interlock protection

Supports DeltaV CHARM electronic marshalling technology

Built-in LocalBus interface for communication with I/O subsystems

Offline autonomous control function during host network interruption

Compatible with earlier DeltaV control strategy configuration

DIN rail modular installation, easy cabinet assembly and replacement

Industrial rugged design, meets ISA S71.04 Class G3 environmental standard

Supports redundant system configuration for high availability applications

Technical Specifications

Model: SE3008 KJ2005X1-SQ1

Brand: Emerson

Applicable System: DeltaV DCS Distributed Control System

Alternate Part Number: 12P6383X022

Local Bus Power: 5 VDC, Max 1.4 A

Operating Temperature: -40℃ ~ +70℃

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%~95% non-condensing

Contamination Class: ISA S71.04 Class G3

Vibration Resistance: 2–13.2Hz 1mm peak; 13.2–150Hz 0.7g

Shock Resistance: 10g, 11ms half sine wave

Protection Grade: IP20

Mounting: DIN Rail Installation

Net Weight: 0.5 kg

Typical Applications

Petrochemical plant Emerson DeltaV DCS system maintenance

Power plant boiler and auxiliary equipment process control retrofit

Oil & gas refining process automation control system upgrade

Municipal wastewater and water treatment DeltaV control projects

Migration and spare replacement of legacy DeltaV distributed control systems
