Brand：ABB
Product ID：3BSE018460R1 CI522AK14 AF100
Place of Origin：USA
Warranty： 365 days
Goods status： new/used
Mail： 3127402866@qq.com
Phone/Wechat/Whatsapp：+86 13368533614

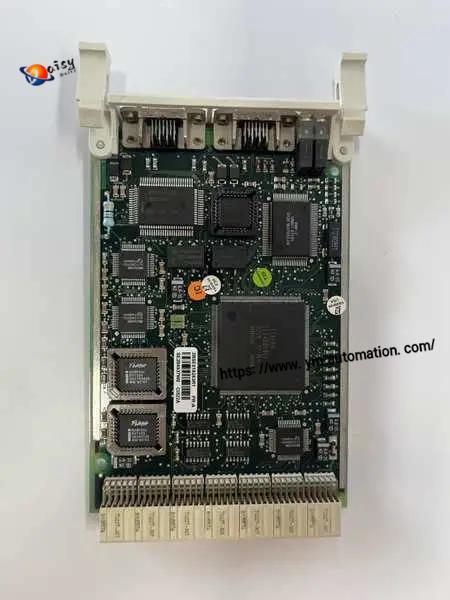

ABB CI522AK14, order code 3BSE018460R1, is a complete AF100 fieldbus communication interface kit designed for ABB AC 800M, AC400 controllers and S800 remote I/O modules. The CI522AK14 kit acts as a reliable communication bridge for distributed automation systems, delivering high-speed AF100 bus data transmission between the controller and remote S800 I/O stations. This ABB CI522AK14 3BSE018460R1 communication kit supports dual redundant module configuration, hot swap operation and built-in diagnostic LEDs, widely adopted in process control, power, oil & gas and petrochemical industrial automation projects.
| Item | Parameter |
|---|---|
| Product Model | CI522AK14 |
| Part Number | 3BSE018460R1 |
| Product Type | AF100 Fieldbus Communication Interface Kit |
| Bus Protocol | Advant Fieldbus 100 (AF100) |
| Communication Speed | 1.5 Mbps |
| Transmission Media | Shielded twisted pair cable |
| Max Bus Distance | 100 meters (without repeater) |
| Bus Topology | Daisy-chain / Star topology |
| Galvanic Isolation | Bus side galvanic isolation |
| Power Supply | 24 VDC, powered from backplane |
| Module Dimensions (CI522A) | 265 × 120 × 27 mm |
| Module Net Weight | 0.2 kg |
| Operating Temperature | -20°C ~ +60°C |
| Redundancy | Support dual-module redundancy |
| Hot Swap | Yes, hot-swappable |
| Diagnostic | LED status indicator, bus fault monitoring |
| Compatible System | ABB 800xA, AC800M, AC400, S800 I/O modules |
| Protection Class | IP20 |
