Product Overview

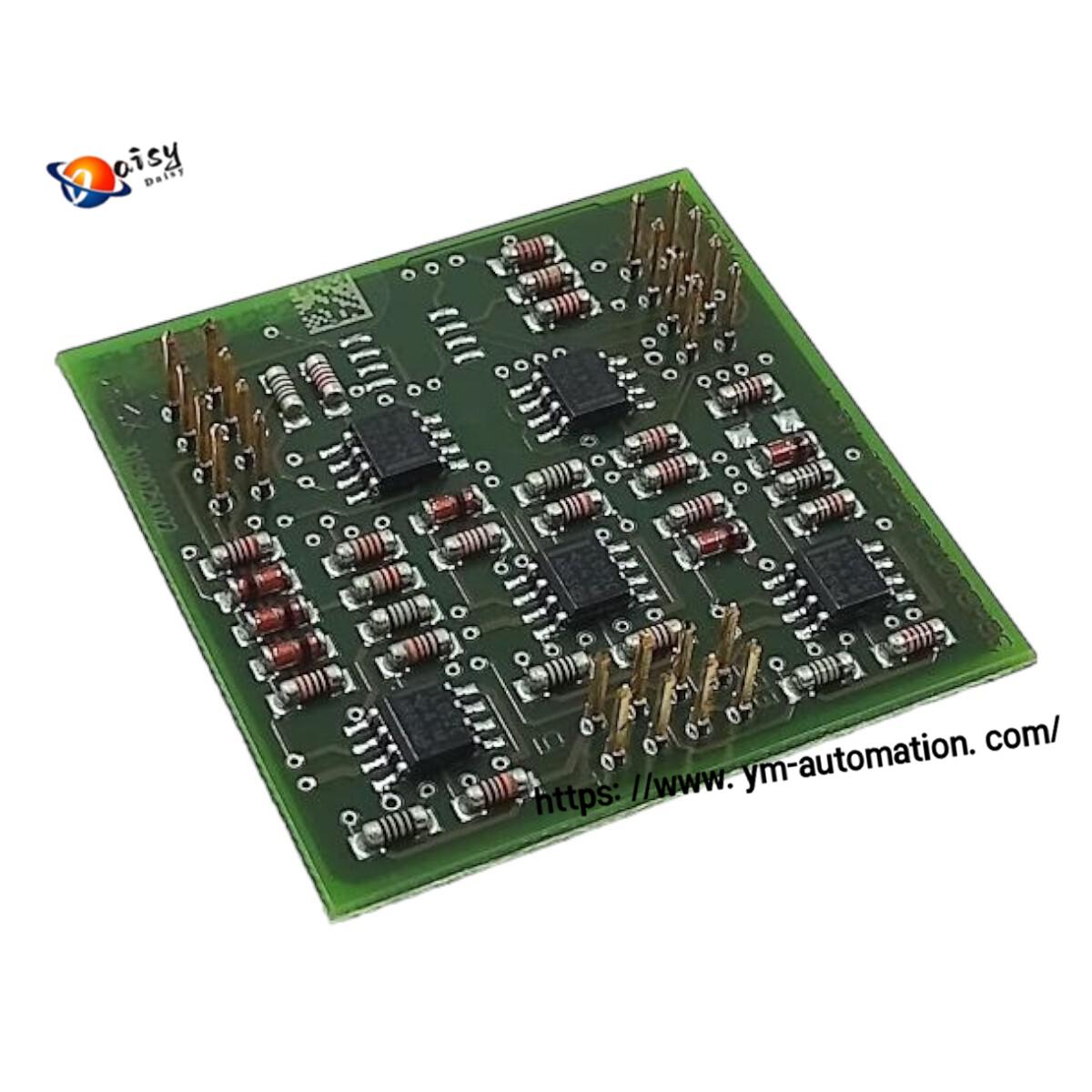

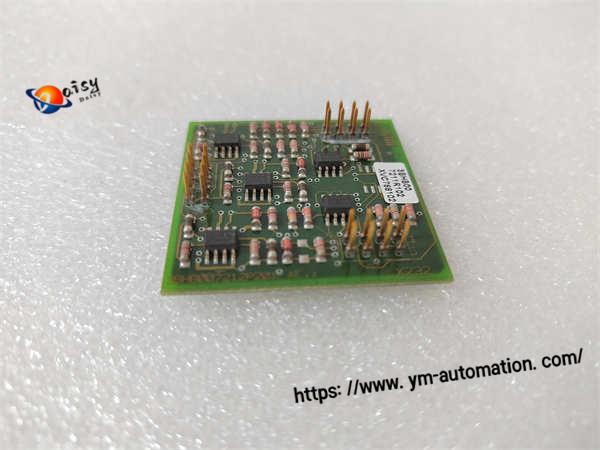

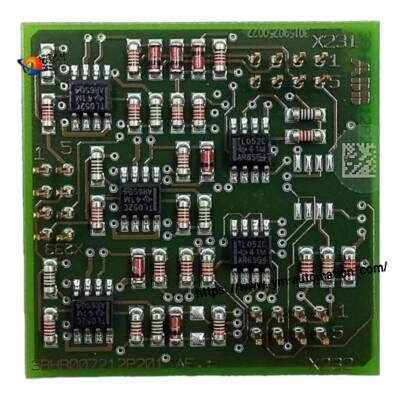

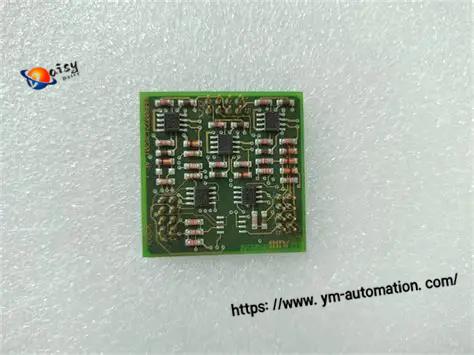

ABB XVC768116 3BHB007211R116 is a programmable control circuit board developed by ABB, designed for ABB Advant OCS and AC800 series control systems. This XVC768116 control board performs real-time logic calculation, signal processing and fault diagnosis as a core spare part of industrial automation control system. It collects sensor input signals, executes preset control programs and outputs control commands to drive field actuators for stable process control in heavy industrial scenarios.

Technical Specifications

• Part Number: XVC768116 3BHB007211R116
• Brand: ABB
• Product Type: Programmable Control Board / Control Module
• Compatible System: ABB Advant OCS, AC800 series automation system
• Power Supply: 24V DC
• Operating Temperature: -20℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃
• Communication: Serial port, support mainstream industrial communication protocols
• Dimension: 178 × 305 × 59 mm
• Weight: approx 0.76 kg
• Mounting: Cabinet rack mounting
• Function: Signal acquisition, logic operation, real-time process control, fault monitoring and diagnosis

Key Features

1. Core control module for ABB Advant OCS and AC800 series industrial control system
2. High-performance processor supports fast real-time data processing and complex control algorithms
3. Multiple communication interfaces for seamless connection with other automation modules
4. Rugged PCB design, stable performance for harsh industrial working environment
5. Supports system fault self-diagnosis to simplify on-site maintenance and troubleshooting
6. Modular rack installation, convenient replacement and system upgrade

Application

ABB XVC768116 3BHB007211R116 control module is widely used in power generation, metallurgy, petrochemical, pulp and paper industries. It is applied in critical industrial process control for medium and high voltage automation control systems.

Our Service

Original ABB industrial spare parts, 12 months warranty. Global export shipment, complete export documents available. In stock, pre-shipment inspection supported.
