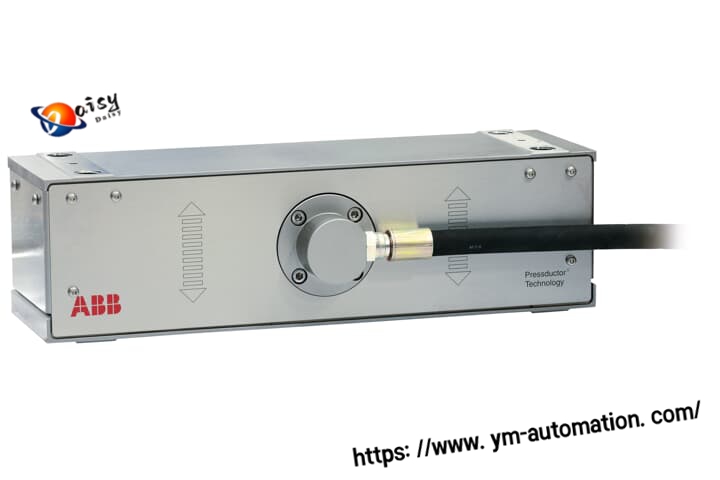

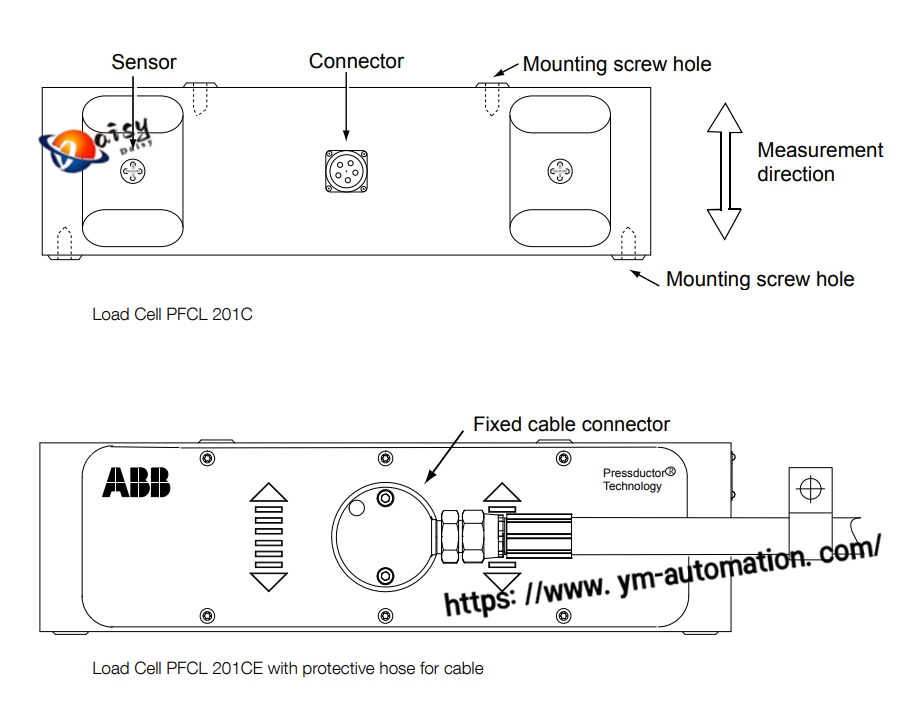

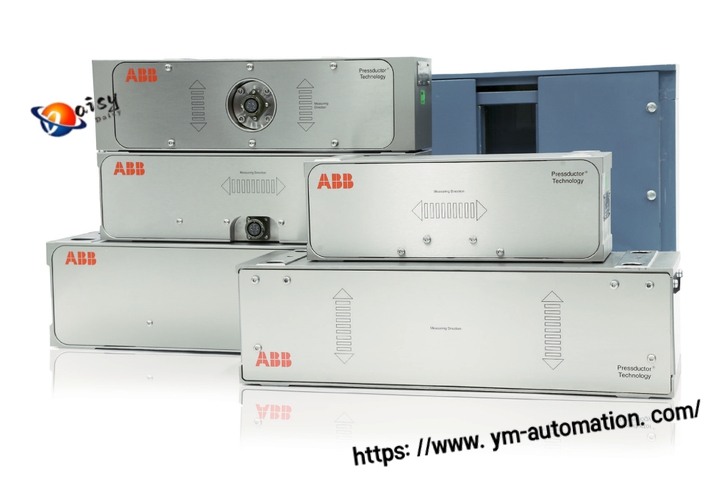

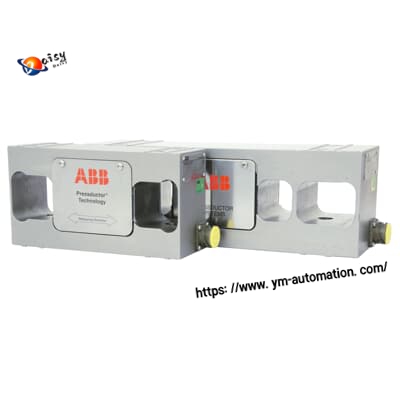

ABB PFCL201CE-50kN 3BSE006699D0005 is a pillow block load cell. Below is its detailed description:

1. Specifications

Rated Load: 50.0 kN (kilonewton)

Extended Load: 75.0 kN

Allowable Load (Transverse Direction): 25.0 kN

Overload Capacity: 500.0 kN in the measuring direction (vertical); 20.0 kN in the transverse direction (horizontal) when h = 300 mm

Deflection: 0.02 mm

Stiffness: 2500 kN/mm

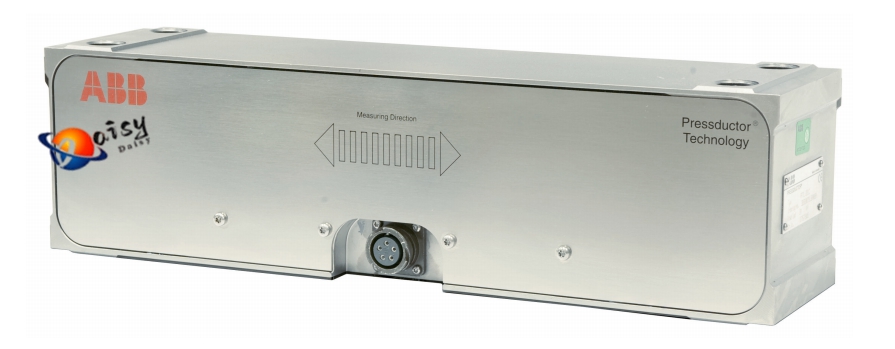

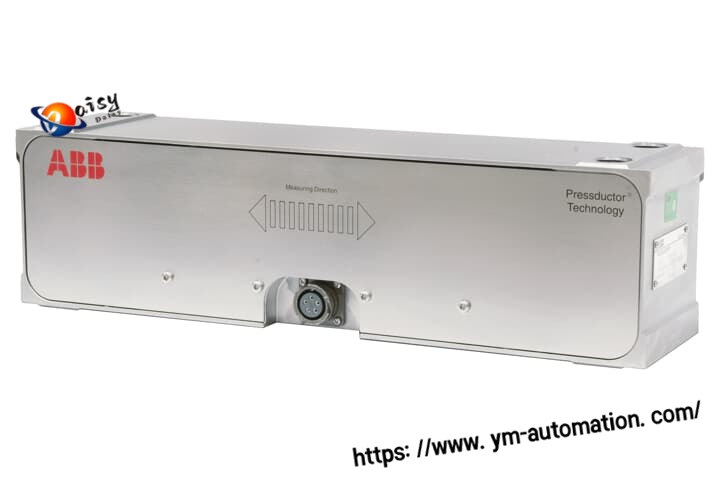

 PFCL201CE-50kN 3BSE036625R0401_F001 (1)

2. Application Scenarios

Metalworking Industry: Used in processes such as rolling and cutting to control the tension of metal coils or sheets, preventing material breakage or uneven stretching.

Pulp and Paper Industry: Enables real-time tension measurement and control during paper production and processing, ensuring uniform paper thickness and stable quality.

Plastic Film Industry: Suitable for winding, coating, printing, and other processes of plastic films. It can accurately control film tension to guarantee film uniformity and surface quality.

Textile Industry: Applied to control the tension of fabrics or yarns, ensuring consistency in textile production processes.

3. Application Principle

This sensor operates based  leveraging  The core component of the sensor is a magnetostrictive diaphragm integrated into a steel block. When an alternating current of 330 Hz is passed through the primary winding, a magnetic field is generated. The secondary winding, under the influence of mechanical force, induces a voltage signal proportional to the tension.

The sensor is only sensitive to forces in the vertical direction and has strong anti-interference capability against transverse and axial forces. Within the allowable range, the error is ≤ ±0.5%.

Key Notes on Terminology

Pillow block load cell: A specialized load-bearing and force-measuring component with a "pillow block" (supporting) structure, commonly used in tension control systems.

Pressductor®: A registered technology brand of ABB, referring to its proprietary magnetostrictive force measurement technology, widely applied in high-precision tension and load detection.

Magnetostrictive effect: A physical phenomenon where the magnetic properties of a material change with applied mechanical stress (or vice versa), forming the core working mechanism of this sensor.
