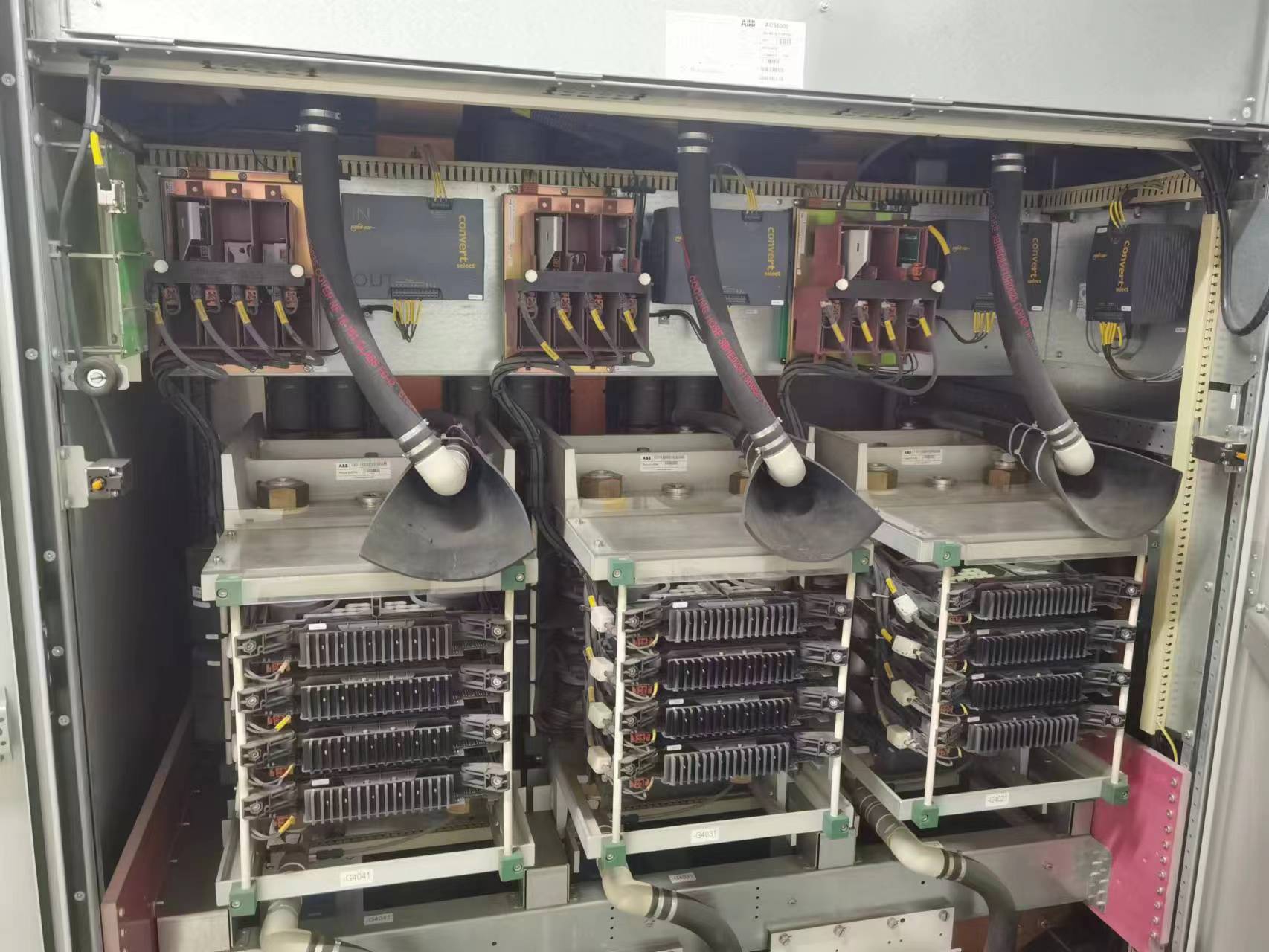

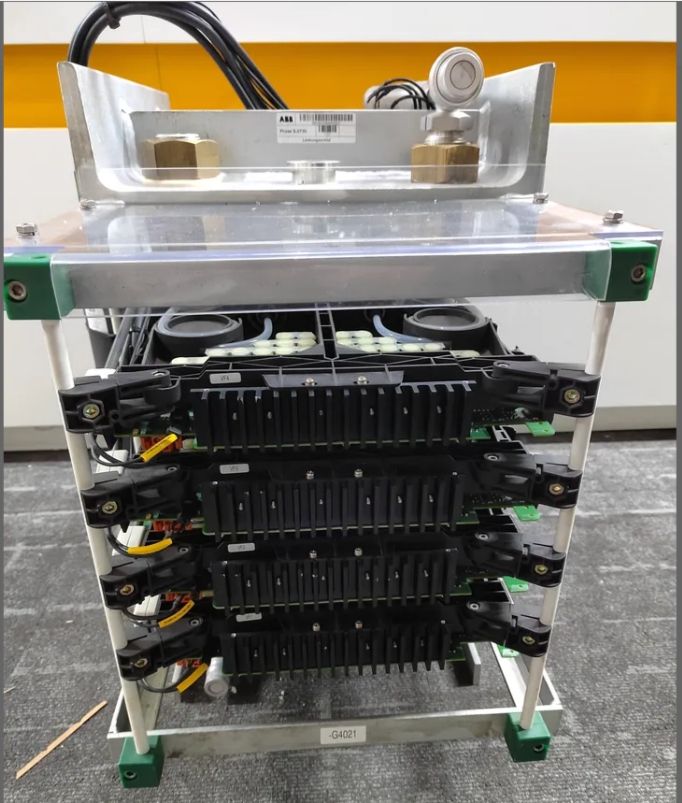

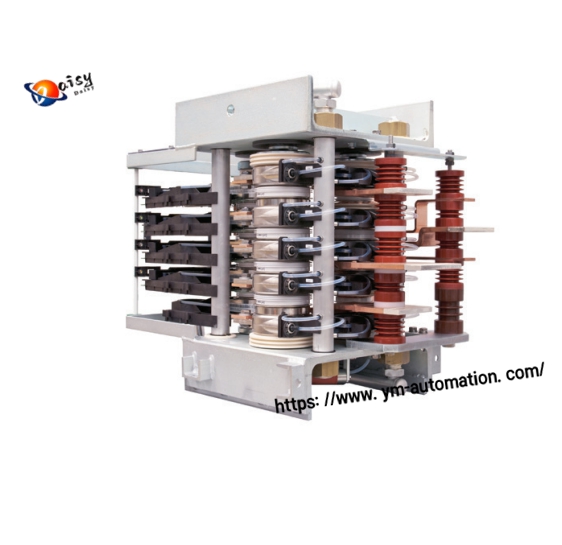

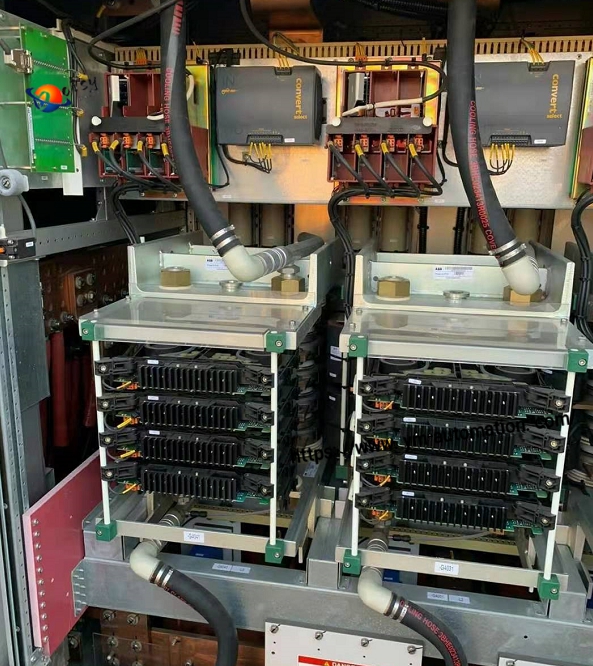

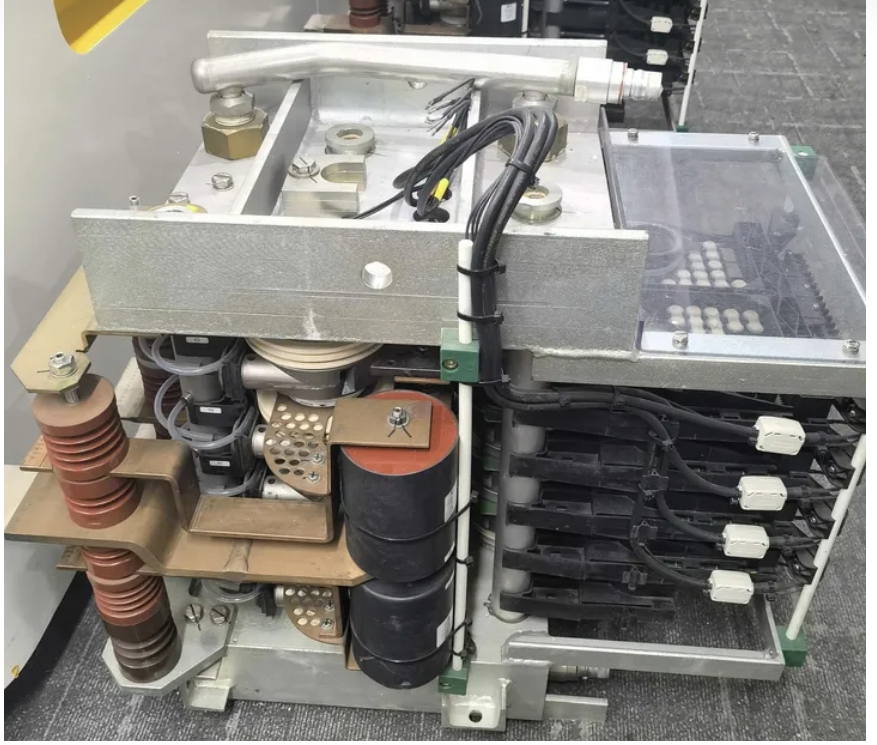

The ABB S-073N 3BHB009884R5211 is a high-voltage inverter phase module rack. Below is an overview of its parameters, application parameters, and operating principle:

1. Parameters

1.1 Electrical Parameters

Rated Voltage: Supports medium- and high-voltage applications, with a maximum voltage of up to 3.3 kV.

Rated Current: Capable of handling hundreds to thousands of amps, depending on configuration.

Switching Frequency: High-frequency design, typically in the kHz range.

On-State Voltage Drop: Low, to enhance energy efficiency.

Power Range: 3–27 MW.

1.2 Operating Environment Parameters

Operating Temperature Range: -40°C to +85°C.

1.3 Mechanical & Other Parameters

Cooling Method: Air-cooled or liquid-cooled (configurable).

Protection Class: IP20.

Net Weight: 175 kg.

2. Application Parameters

2.1 Communication Protocols

Supports protocols such as Modbus, Profibus, CANopen, and Ethernet/IP, depending on specific configuration.

2.2 I/O Ports

Digital Inputs: Typically 16–32 channels.

Digital Outputs: Typically 16–32 channels.

Analog I/O: Number of channels varies by configuration (ranging from several to dozens), with signal ranges of 0–10 V or 4–20 mA.

3. Operating Principle

3.1 Based on IGCT Technology

This module adopts Integrated Gate-Commutated Thyristor (IGCT) technology. IGCT combines the advantages of thyristors and transistors, featuring high voltage resistance, large current-handling capacity, and low on-state losses. It enables fast and precise control of current on/off, significantly improving the inverter’s switching speed and efficiency.

3.2 Phase Control

As a core component of the high-voltage inverter, the S-073N 3BHB009884R5211 is responsible for controlling the phase of the inverter’s output voltage. By precisely regulating the phase angle, it achieves accurate control of motor speed and torque, thereby meeting the precise motor operation requirements of different industrial application scenarios.

3.3 Power Distribution

In multi-phase systems, the module enables rational power distribution, ensuring power balance between phases and enhancing system stability and reliability.

3.4 Coordination with Other Systems

It can receive input signals from various sensors (e.g., temperature, pressure, and position sensors). After internal processing and calculation, the processed signals are output to corresponding actuators (e.g., valves, motors), enabling precise control of industrial processes.

Notes on Data Sheet Acquisition

For the official full data sheet (including detailed electrical schematics, thermal performance curves, and installation dimensions), please:

Visit the ABB Industrial Automation official website and search for the model “3BHB009884R5211”;

Contact ABB’s local technical support team or authorized distributors to request customized documentation.
