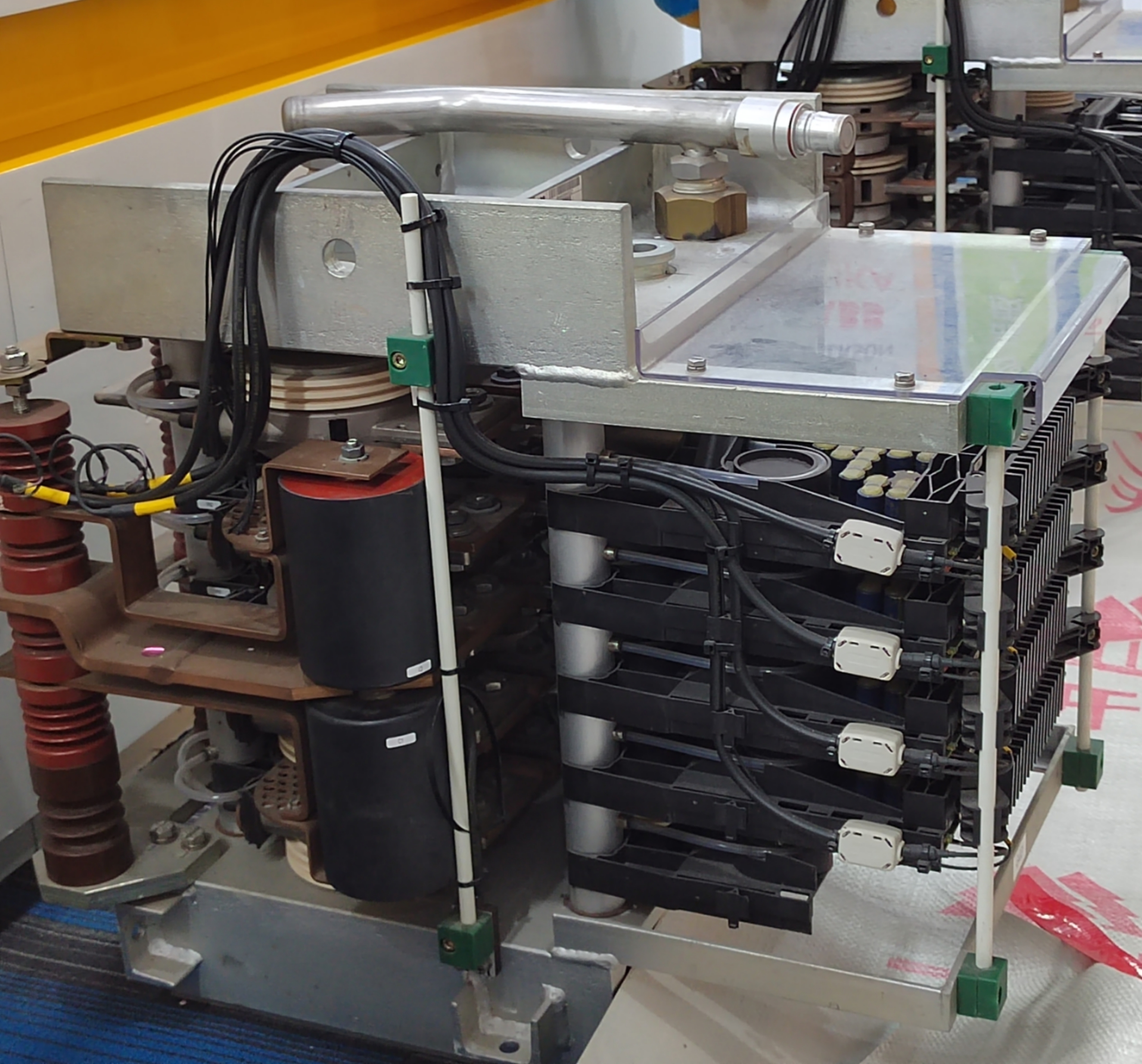

ABB S-073H 3BHB009884R0204: Parameters of the phase module of the high-voltage inverter：
1. Product Positioning

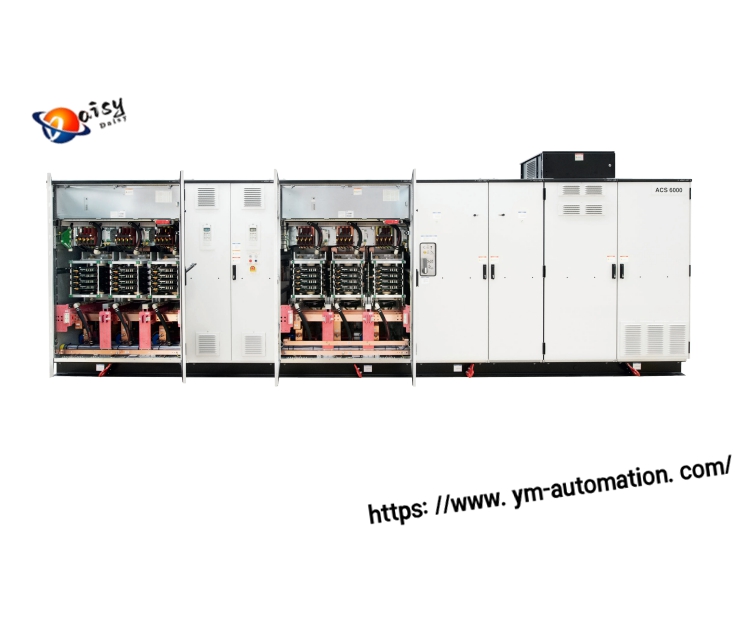

The S-073H 3BHB009884R0204 is a core component of ABB’s ACS6000 Series High-Voltage Inverters, categorized as a Phase Module. It is primarily designed for power conversion and motor control in medium- and high-voltage industrial drive systems. Its objective is to achieve precise voltage phase regulation through advanced power semiconductor technology, supporting reliable operation in megawatt-scale application scenarios.

2. Core Parameters

The following parameters are compiled based on the technical characteristics of the ACS6000 Series and technical documents of similar modules (e.g., S-073N). For exact details, refer to the official data sheet:

2.1 Electrical Parameters

Rated Voltage: Suitable for 6.0–6.9 kV medium- to high-voltage systems (typical application scenarios).

Rated Current: Capable of handling hundreds to thousands of amperes of load current, depending on configuration.

Power Range: A single module supports 3–27 MW of power output, with specific values determined by the number of parallel modules.

Switching Frequency: Adopts a high-frequency design (typically in the kHz range) to reduce output harmonics and improve motor control precision.

Conduction Loss: Based on IGCT Technology, it features a low on-state voltage drop (approximately 1.5–2.0 V), significantly enhancing energy efficiency.

2.2 Physical & Environmental Parameters

Cooling Method: Supports forced air cooling or liquid cooling (requires an external cooling system) to ensure stability during high-power operation.

Protection Class: The module itself has a protection class of IP20 (for indoor installation) and needs to be used with a cabinet for higher protection (e.g., IP54).

Operating Temperature Range: -40°C to +85°C, adaptable to harsh industrial environments.

Weight: Approximately 175 kg (referenced from the S-073N, a module in the same series).

2.3 Communication & Interfaces

Communication Protocols: Supports industrial standard protocols such as Modbus, Profibus, and Ethernet/IP, enabling seamless integration with PLC or DCS systems.

I/O Configuration:

Digital Inputs/Outputs: 16–32 channels, used for status monitoring and control command transmission.

Analog Inputs/Outputs: Supports 0–10 V or 4–20 mA signals, used for sensor data collection and motor parameter adjustment.

3. Application Parameters & Typical Scenarios

3.1 Application Fields

Power & Energy: Generator excitation control, grid reactive power compensation.

Industrial Drives: Variable-frequency speed regulation for large equipment such as pumps, fans, compressors, and rolling mills.

Rail Transit: Power conversion for locomotive traction systems.

Petrochemical Industry: Precise control and energy efficiency optimization of high-voltage motors.

3.2 Technical Advantages

High Energy Efficiency: IGCT technology reduces conduction loss, and combined with Direct Torque Control (DTC), it achieves high efficiency across the full load range.

High Reliability: Modular design supports redundant configuration, adapting to long-term continuous operation (e.g., 24/7 industrial production).

Wide Voltage Range: Compatible with 6.0–6.9 kV systems, meeting the requirements of different power grid conditions.

4. Operating Principle & Technical Implementation

4.1 Core of IGCT Technology

The Integrated Gate-Commutated Thyristor (IGCT) is the core device of this module. It combines the high voltage resistance of thyristors (>6 kV) and the fast turn-off capability of transistors (microsecond-level).

Operating Mechanism: Precise on/off control of current is achieved by regulating gate signals, while fast commutation is realized using reverse voltage—significantly improving the switching speed and energy efficiency of the inverter.

4.2 Phase Control & Power Distribution

Voltage Phase Regulation: The module controls the phase angle of the inverter’s output voltage to achieve precise control of motor speed and torque. For example, in fan applications, the phase can be dynamically adjusted based on real-time load demands to avoid energy waste.

Multi-Phase System Balance: In high-voltage systems with parallel modules, the S-073H manages power distribution to ensure balanced load across phases, reducing total harmonic distortion (THD < 3%).

4.3 System Coordination & Protection Functions

Sensor Integration: It receives signals from sensors (e.g., temperature, current, and pressure sensors), processes the data via built-in algorithms, and triggers protection mechanisms for overcurrent, overtemperature, or overvoltage.

Energy Regeneration: During braking, the module can feed regenerative energy generated by the motor back to the power grid, improving the overall energy efficiency of the system.
