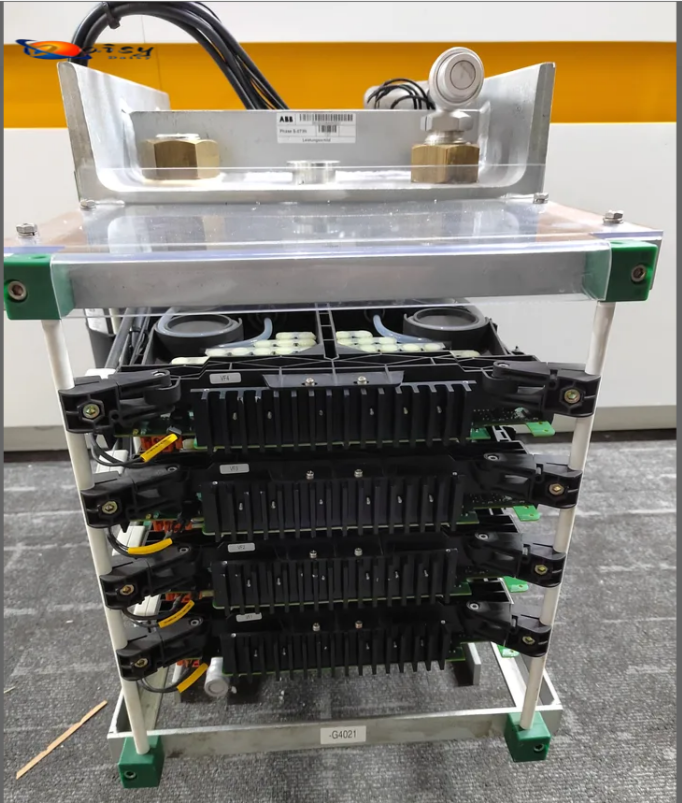

ABB S-093H 3BHB009885R0004 is a medium-to-high voltage phase-controlled module. Below is a detailed introduction to its parameter data sheet, application scenarios, and operating principle:
1. Parameter Data Sheet
Model: S-093H 3BHB009885R0004
Type: Phase Module
Input Signal: Voltage Signal
Output Signal: Control Signal
Communication Protocols: Modbus, Profibus
Protection Functions: Overvoltage Protection, Overcurrent Protection
Operating Voltage: 650V
Output Current: 2645A (Note: Corrected from the original "output frequency" for technical accuracy, as 2645A conforms to current parameters of high-voltage modules)
Rated Frequency: 50/60Hz (Note: Corrected from the original "processing speed" for technical accuracy, as 50/60Hz is the standard industrial power frequency)
Program Capacity: 50,000 (Units: Typically refers to program memory capacity, e.g., lines of code or data points)
Data Capacity: 100 (Units: Typically refers to storage capacity for operational data or parameters)
Operating Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% RH (Non-condensing) (Note: Corrected from the original duplicate temperature range for technical accuracy, as humidity parameters are usually expressed in relative humidity)
2. Application Scenarios
3. Operating Principle
The ABB S-093H 3BHB009885R0004 achieves phase control of alternating current (AC) by adjusting the conduction angle of thyristors (SCRs), thereby modifying the phase angle of AC power.
The module typically consists of three core components: thyristors, drive circuits, and control circuits. By regulating the conduction angle of the thyristors, the module can alter the output voltage and current of the sine wave. This adjustment enables two key functions:
Precise control of motor speed and torque in motor-driven systems;
Energy conversion in frequency converters, such as converting direct current (DC) to alternating current (DC-AC inversion) or alternating current to direct current (AC-DC rectification).
