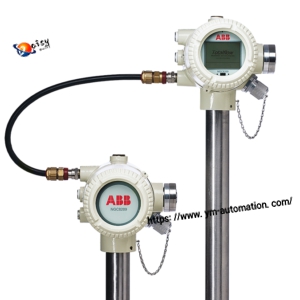

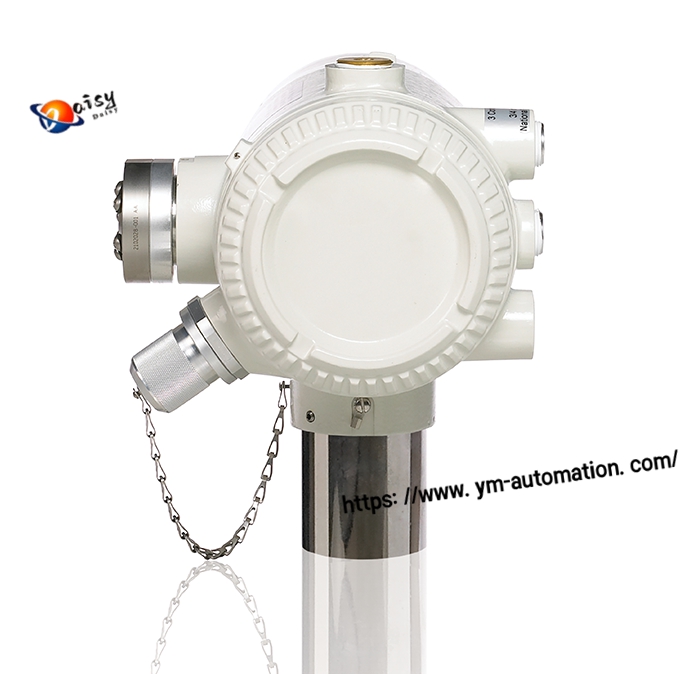

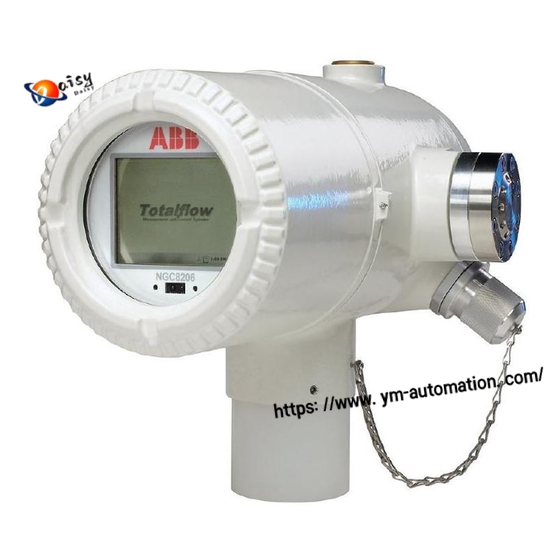

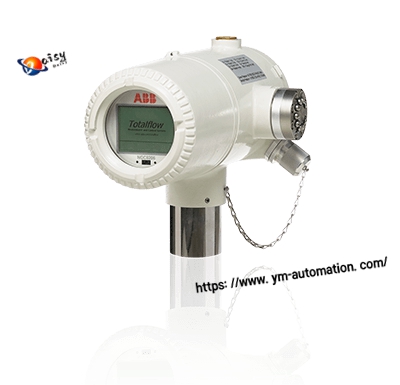

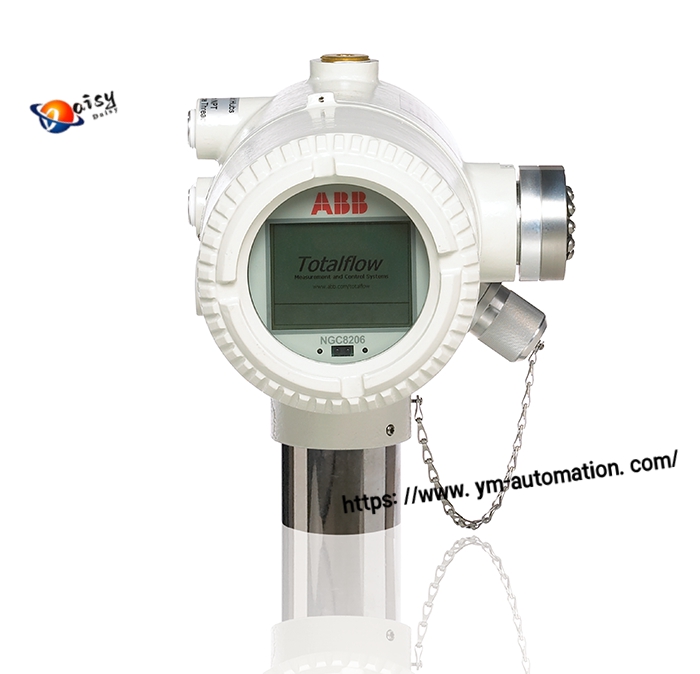

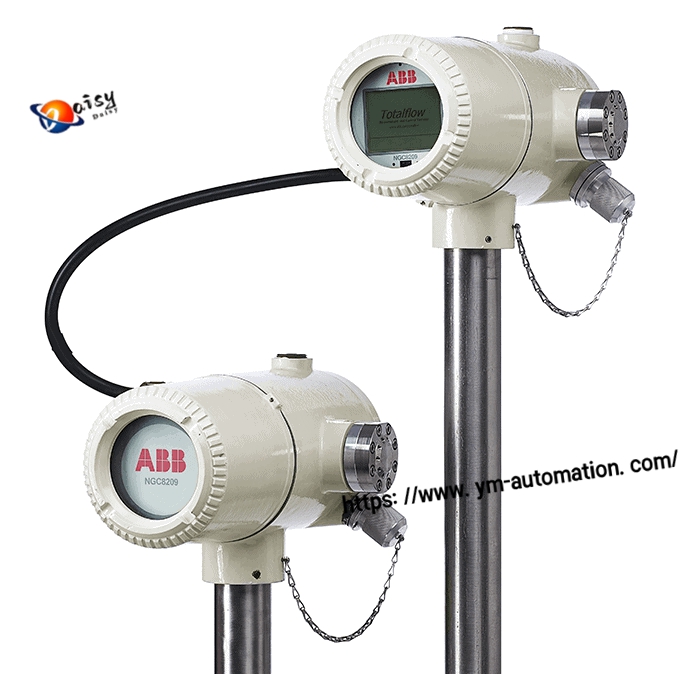

ABB NGC8206 Natural Gas Chromatograph

Precision Analysis for Every Link of the Natural Gas Value Chain

Product Overview: Trusted by Industry Leaders for Accurate, Reliable Natural Gas Testing

The ABB NGC8206 is more than just an industrial online natural gas chromatograph—it’s a custody-transfer-grade analytical solution engineered to redefine precision in natural gas quality control. Designed for continuous or periodic monitoring, this instrument delivers consistent, traceable results across the entire natural gas lifecycle, from wellhead extraction to end-user delivery. Backed by ABB’s decades of expertise in industrial automation, the NGC8206 combines rugged durability, smart functionality, and seamless system integration to solve your most critical gas analysis challenges.

Key Advantages: Why Choose the ABB NGC8206?

Every feature of the NGC8206 is built to address the unique needs of the natural gas industry—here’s how it adds value to your operations:

1. Unmatched Analytical Precision: Eliminate Guesswork in Quality Control

Covers All Critical Components: Analyzes methane (CH₄), ethane (C₂H₆), propane (C₃H₈), butanes (n-C₄/i-C₄), pentanes (n-C₅/i-C₅), hexane+, N₂, CO₂, and optional H₂S—no more missing key impurities.

Laboratory-Grade Accuracy: ±0.1% relative error for major components (e.g., methane) and ±0.5% for trace elements (e.g., hexane+), ensuring compliance with strict industry standards (ISO 6974).

Fast Results, No Compromise: Get critical component data in ≤3 minutes (fast mode) or full-component analysis in 5–8 minutes—keep your processes moving without sacrificing accuracy.

2. Rugged Design: Built for Harsh Industrial Environments

Wide Operating Range: Performs reliably in temperatures from 0–50°C and humidity up to 90% (non-condensing)—ideal for oilfields, pipeline stations, and LNG plants.

Hazardous Area Certified: ATEX/IECEx compliance for Zone 1/2 and IP54 protection for cabinet-mounted models—safe for use in explosive or dusty locations.

Low Maintenance, High Uptime: Self-diagnostic functions (column blockage, detector faults) and automatic calibration reduce manual intervention, minimizing downtime.

3. Seamless Integration: Connect to Your Existing Systems

Flexible Outputs: 4–20 mA analog signals (for 8 key parameters) and digital communication via RS-485/Modbus RTU, Ethernet/Modbus TCP, or OPC UA—effortlessly integrate with DCS, SCADA, or data management platforms.

Smart Data Management: Stores historical data for traceability and compliance reporting, while real-time alerts keep your team informed of abnormal conditions.

4. Cost-Effective Operation: Maximize Efficiency, Minimize Waste

Built-In Pressure Regulation: Handles sample pressures from 0.1–10 MPa without external equipment, reducing setup costs.

Optimized for LNG: Prevents costly equipment damage by monitoring C₅+ levels (kept ≤0.1% to avoid freezing during liquefaction).

Long-Term Reliability: ABB’s global service network ensures support wherever you operate, extending the instrument’s lifespan and protecting your investment.

Application Scenarios: Where the NGC8206 Drives Value

The NGC8206 is tailored to solve the unique challenges of every stage of the natural gas value chain:

Operating Principle: Smart Science Behind the Precision

The NGC8206 leverages advanced gas chromatography to deliver consistent results:

Sample Injection: A filtered, pressure-regulated gas sample is injected into the system via a precision solenoid valve.

Component Separation: A dual-column system (pre-separation + analytical columns) separates gases by molecular weight and polarity—light components (e.g., CH₄) elute fast, while heavy components (e.g., C₅+) elute slowly.

Sensitive Detection: A Thermal Conductivity Detector (TCD) analyzes hydrocarbons, with an optional Flame Ionization Detector (FID) for ultra-sensitive trace analysis.

Data Conversion: Signals are converted to component concentrations using standard gas calibration curves, with key parameters (calorific value, density) calculated in real time.

Actionable Output: Results are sent to your control systems, with automatic alerts for out-of-spec conditions—keeping you in control, always.

Ready to Elevate Your Natural Gas Analysis?

The ABB NGC8206 isn’t just an instrument—it’s a partner in optimizing your natural gas operations. With unbeatable precision, rugged reliability, and seamless integration, it’s the solution trusted by global energy companies to ensure quality, compliance, and efficiency.

Contact our team today to learn how the NGC8206 can be tailored to your specific needs, or request a demo to see its performance firsthand.
